Portland Ecolux Solar Installation/Wiring Instructions

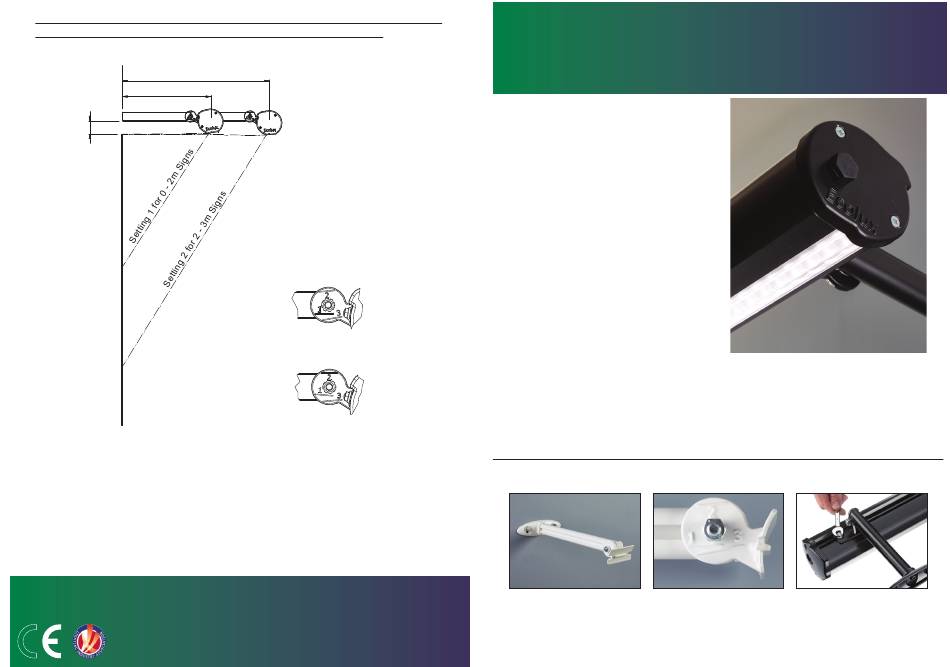

VITALLY IMPORTANT: TO GIVE OPTIMUM ILLUMINATION TO SIGN FACE SELECT
CORRECT SETTING 1 OR 2 ON BRACKET FIXINGS WHEN TIGHTENING
500
300
Leave
100-150mm
clear above
sign
Sign

Important Safety

Before carrying out any servicing on this luminaire, ensure that the supply is fully isolated.
technical enquiries
If you need any help with the installation or maintenance of Portland Lighting products, please
contact us
Telephone: 01922 721 133
Email: Sales@portlandlighting.co.uk
For best results fix brackets
100-150mm above your sign.
Setting 1
line parallel with bottom edge of bracket.
Setting 2
line parallel with top edge of bracket.
Portland Lighting
Unit 2
Reedswood Park Road
Walsall
WS2 8DQ
ecolux solar
INSTALLATION & WIRING INSTRUCTIONS
1. IMPORTANT: Please read these
instructions carefully before
proceeding with installation.
1.1 This instruction sheet should be passed
on by installer to the end user for
maintenance purposes.
1.2 It is recommended that the fitting is
installed by a competent electrician in
accordance with these instructions and
appropriate wiring regulations.
1.3 Portland Lighting products should not
be modified. No responsibility will be
accepted for any modified products or
for any damage caused as a result of
their modification.
1.4 It is not recommended to install the
fitting in areas that are liable to reach an
ambient temperature in excess of 35 o
1.5 To clean fittings use a soft damp cloth
and dry immediately. Do not use any
chemical/abrasive cleaner.
1.6 All fittings are class III fittings.
12V input and should be used in
conjunction with provided solar
components and attached Ecolux Solar
instruction sheet.
1.7 The light source contained in this luminaire
shall only be replaced by the manufacturer,
service agent or similar qualified person.
The fitting should be mounted on a suitable weight bearing surface, using appropriate fixings
(Weight per metre 3kg).
Secure bracket to wall. Tighten bracket end to specified
For best results 100-150mm setting: 300mm bracket - 1
above your sign.
500mm bracket - 2
Setting 3 - not for use
with solar system.
C.
1.8 Type Y Attachment – If the external
flexible cable or cord of this luminaire
is damged, it shall be exclusively
replaced by Portland Lighting Ltd or
their service agent or a similar qualified
person in order to avoid a hazard.
Hang lights on bracket and
slide fasteners into position
and secure.
