Estar ES-880 Manual

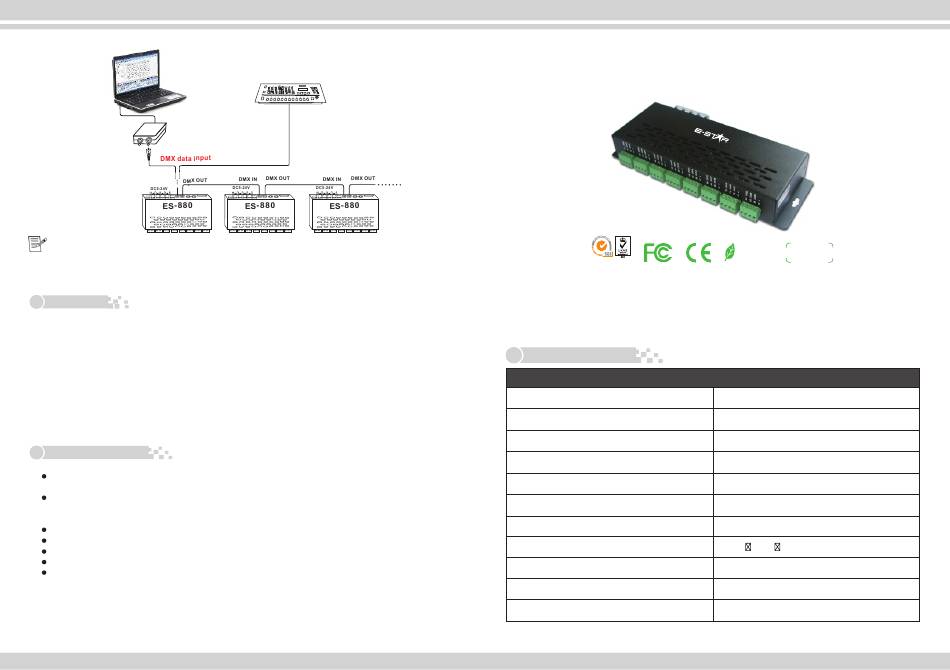

DMX console connection
DMX512 USB-DMX
Converter
PC CONSOLE
DC- DC+ DC- DC+
NOTE: According to DMX512 protocol, in order to ensure a steady DMX Data trans
mission, you should weld a metalster(Metal Thin Film resistor，90-120Ω1/4W)at the
end of each Layouteach layout of DMX data cable(between Foot 2 and Foot 3, Data+l and
Data -),Please also refer to your DMX console manua to select a correct resistor.

5. Attention

1. The product shall be debugged and installed by professional persons.
2. This product is non-waterproof, please avoid the sun and rain. Put it in a water- proof box if
install outdoor.
3. Good condition of heat dissipation will prolong the working life of controller, please install the
product in a good ventilated condition.
4. Please check if the output voltage of the LED power supply comply with the voltage range of
the product.
5. The diameter of adopted cable should load enough connected LED light. Ensure a solid
connection in order to avoid triggering accident result from poor contact or cable overheat.
6. Ensure all wire connection are correct before power debugging, which is to avoid lamps to be
burnt because of wrong connection.
7. Please do not maintain it by yourself if any fault, please contact your supplier if any question.

6. After sales service

1. Our LED controllers are provided with lifelong technical maintenance and warranty service.
Free warranty: Within 3 years from the date of purchase, we will offer free repair or
replacement if any product quality problem.
Charge warranty: If the product beyond the free charge maintenance period, we will charge
certain material cost.
2. The below situations exclude from free warranty.
The damage caused by improper connection to power supply, exceeded voltage, overload.
Use the product in a incorrect way.
The appearance of the product has been damaged severely or be out of shape.
Natural disasters and force majeure damage.
Warranty fragile label and the unique barcode have been damage.
3. The most responsibility we take is that we change the same models and same quantities products.
4. As for the repair products, please write down the description to malfunction, working environment,
and what you have done when malfunction happened, which are helpful to solve the problems
quickly.
This manual is only apply to this model. Any update is subjected to change without prior notice.
ES-880 DMX512 CV Decoder Manual
DMX512 CONSOLE
DC- DC+ DC- DC+ DC- DC+ DC- DC+
4
ES-8 80
DMX512 CV Decoder
ISO9001:2008
Thanks for choosing our ES-880 DMX512 decoder, ES-880 DMX512 decoder
converts the universal standard DMX512/1990 signal into PWM signal to drive
LED. It creates exclamatory, soft&perfect color fade effect by adopting special
L-PWM program technology, which makes the LED more colorful and vivid.

1. Product parameter

ES-880
Power supply chosen
Input voltage
Max load current
Max output power
Output Scale level
Input signal
Output DMX Channel
Working temperature
Dimension
Package size
Weight(G.W)
ES-880 DMX512 CV Decoder Manual
RoHS
warranty
3 years
COMPLIANT
DC CV SMPS
DC5V～ DC 24 V
3A/CH×24CH Max 72A
360W/864W/1728W(5V/12V/24V)
256 levels
DMX512/1990
24Ch
-30 -65
L260×W120×H40mm
L290×W130×H46mm
860g
