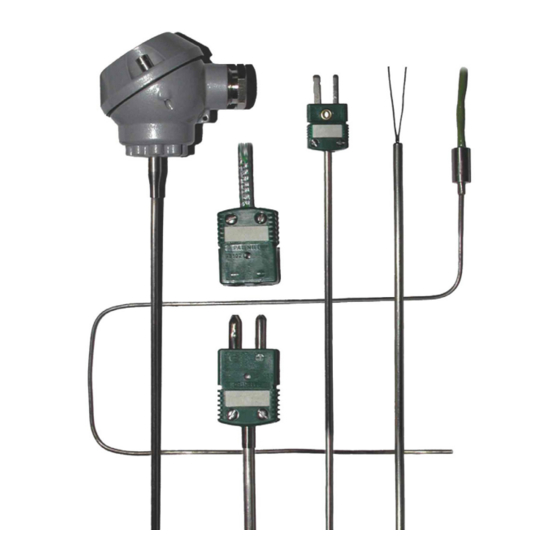

Flexible Sheath Resistance and Thermocouple
• Measuring resistor 1x / 2x Pt100,
thermocouple 1x / 2x "J", "K", "N"
• Measuring range -200 to +700 °C (Pt100),
-200 to +800 °C ("J"), -200 to +1300 °C
("K", "N")
• Accuracy class A, B according EN 60751,
1, 2 according EN 60584-1
• Sheath material stainless steel
1.4541, 1.4404, Inconel 600, Nicrobell/Pyrosil
• Sheath diameter from 1 to 6 mm
JSP, s. r. o.
Industrial Controls
MANUAL
FlexiTEMP
Temperature Sensors
CZ Raisova 547, 506 01 Jičín
jsp@jsp.cz • +420 493 760 811
Temperature Sensors - NC0831EN - 2019/11
60
®
• Optional nominal length L: 0.1 to 50 m
• Fast response to temperature changes
• Flexible stem
• Optional version of cold junction, with flying
leads, connected compensating cable, flat
connector, flange and MA head
• Intrinsically safe version
II 1/2G Ex ia IIC T6...Tx°C Ga/Gb,
II 1/2D Ex ia IIIC T85°C...Tx°C Da/Db
SK Krivá 23, 040 01 Košice
predaj@jsp.sk
www.jsp.cz
Advertisement
Table of Contents
Related Manuals for JSP FlexiTEMP 60
Summary of Contents for JSP FlexiTEMP 60
- Page 1 Temperature Sensors • Measuring resistor 1x / 2x Pt100, • Optional nominal length L: 0.1 to 50 m thermocouple 1x / 2x “J“, “K“, “N“ • Fast response to temperature changes • Measuring range -200 to +700 °C (Pt100), • Flexible stem -200 to +800 °C (“J“), -200 to +1300 °C • Optional version of cold junction, with flying (“K“, “N“) leads, connected compensating cable, flat • Accuracy class A, B according EN 60751, connector, flange and MA head 1, 2 according EN 60584-1 • Intrinsically safe version • Sheath material stainless steel II 1/2G Ex ia IIC T6...Tx°C Ga/Gb, 1.4541, 1.4404, Inconel 600, Nicrobell/Pyrosil II 1/2D Ex ia IIIC T85°C...Tx°C Da/Db • Sheath diameter from 1 to 6 mm JSP, s. r. o. CZ Raisova 547, 506 01 Jičín SK Krivá 23, 040 01 Košice www.jsp.cz Industrial Controls jsp@jsp.cz • +420 493 760 811 predaj@jsp.sk...
-
Page 2: Table Of Contents
Flexible Sheath Resistance and Thermocouple Temperature Sensors FlexiTEMP ® Contents 1. General instructions and information ......................3 1.1 Symbols used ..............................3 1.2 Safety warnings and cautions ........................3 1.3 Scope of delivery ............................3 1.4 Description of the delivery and packing .......................3 1.5 Storage ................................3 1.6 Installation and commissioning ........................3 1.7 Spare parts ..............................3 1.8 Repairs ................................3 1.9 Warranty ..............................3... -
Page 3: General Instructions And Information
Flexible Sheath Resistance and Thermocouple Temperature Sensors FlexiTEMP ® 1. General instructions and information 1.8 Repairs Products are repaired by the manufacturer. The products for 1.1 Symbols used repair should be sent in a packing that guarantees damping of shocks and vibrations and protects against damage during Symbol of warning;... -
Page 4: Product Description
Flexible Sheath Resistance and Thermocouple Temperature Sensors FlexiTEMP ® 3. Product description FlexiTEMP ® Flexible Sheath Resistance and Thermocouple Temperature Sensors • Measuring resistor 1x / 2x Pt100, thermocouple 1x / 2x “J“, “K“, “N“ • Measuring range -200 to +700 °C (Pt100), -200 to +800 °C (“J“), -200 to +1300 °C (“K“, “N“) • Accuracy class A, B according EN 60751, 1, 2 according EN 60584-1 • Sheath material stainless steel 1.4541, 1.4404, Inconel 600, Nicrobell/Pyrosil • Sheath diameter from 1 to 6 mm • Optional nominal length L: 0.1 to 50 m • Fast response to temperature changes • Flexible stem • Optional version of cold junction, with flying leads, connected compensating cable, flat connector, flange and MA head • Intrinsically safe version II 1/2G Ex ia IIC T6...Tx°C Ga/Gb, II 1/2D Ex ia IIIC T85°C...Tx°C Da/Db 3.1 Application 3.2 Description Resistance thermocouple temperature... -
Page 5: Dimensional Drawings
Flexible Sheath Resistance and Thermocouple Temperature Sensors FlexiTEMP ® 3.3 Dimensional drawings Note: Marking of zones for potentially explosive atmosphere (applies for EI version) Zone 1, 2, 21, 22 (EPL Gb, Gc, Db, Dc) Zóna 1, 2, 21, 22 (EPL Gb, Gc, Db, Dc) plastový... -
Page 6: Installation, Operation And Maintenance
Flexible Sheath Resistance and Thermocouple Temperature Sensors FlexiTEMP ® 4. Installation, operation and maintenance Before commissioning, check whether the measuring circuit break has not occurred and if the insulation resistance has not been lowered. 4.1 Installation and commissioning 4.1.3 Special conditions for safe use of sensors 4.1.1 General in Intrinsically safe version (code EI) Low depth of sensor immersion to measured medium can 1. - Page 7 Flexible Sheath Resistance and Thermocouple Temperature Sensors FlexiTEMP ® failure is not considered and is sufficient if the power passed For process temperature (measured medium) 440 °C < Tm into the sensor does not exceed 0.05 W. Information about ≤ 1200 °C, the maximal surface temperature of sensor Tx maximum power passed into the sensor can be found in the is determined from maximal temperature of the process operating manual of the transmitter or associated apparatus.
-
Page 8: Operation And Maintenance
Flexible Sheath Resistance and Thermocouple Temperature Sensors FlexiTEMP ® TC with head MA BK - black GN - green – – – – PK - pink – – – – – – – – – – – – – – 5. Product specifications 4.1.5 Examples of mounting of the sensors in operation 5.1 Technical specifications Sensors without thermowell, respectively protective tube, fixing shift pipe union... -
Page 9: Operation Conditions
Flexible Sheath Resistance and Thermocouple Temperature Sensors FlexiTEMP ® Electrical insulation resistance:* Flat connector (code KS, KM): min. 1000 MΩ according to EN 61515, black (“J“) at temperature (20 ±15)°C, max. 80 % relative humidity green (“K“) pink (“N“) Version of measuring junction: temperature resistance of connector -60 to +200 °C Grounded and opened version Connecting thread (code H1...): G3/8“... -
Page 10: Supplementary Parameters
Raisova 547 For application with headmounted transmitter, observe 506 01 Jičín also the requirements according to transmitter manual. Czech Republic logo of JSP, s.r.o. www.jsp.cz website address marking of conformity Tag of sensor in version EI includes this information: FTZÚ 13ATEX0079X II 1/2G Ex ia IIC T6...Tx°C Ga/Gb... -
Page 11: Ordering Information
Flexible Sheath Resistance and Thermocouple Temperature Sensors FlexiTEMP ® 7. Ordering information 7.1 Ordering table Type Description ° T1060 Sheath resistance temperature sensor ° T1560 Sheath thermocouple temperature sensor Code Temperature sensor Resistance (RTD) Sheath material Max. temperature of use ° up to 500 °C 1xPt100, two-wire inside wiring 1.4404 °... - Page 12 Flexible Sheath Resistance and Thermocouple Temperature Sensors FlexiTEMP ® Code Cable insulation - wire insulation / shield / outer insulation / braiding Ambient temperature of cable ° I1010 Silicone / - / silicone / - -50 to +200 °C - only for TC (not for "N") °...
- Page 13 Flexible Sheath Resistance and Thermocouple Temperature Sensors FlexiTEMP ® OPTIONAL ACCESSORIES Type Description • Fixing shift pipe union for sheath temperature sensor Code Version • With stainless steel cutting ring, pipe union of stainless steel material 600 °C / 0.1 MPa 4 MPa / 100 °C •...
-
Page 14: Appendix
Flexible Sheath Resistance and Thermocouple Temperature Sensors FlexiTEMP ® 8. Appendix 8.1 Declaration of conformity (explosion hazard environment version - codes EI) - 14 -... - Page 15 JSP, s.r.o. | Raisova 547, 506 01 Jičín, Czech Republic +420 493 760 811 | export@jsp.cz | www.jsp.cz Your Supplier:...
