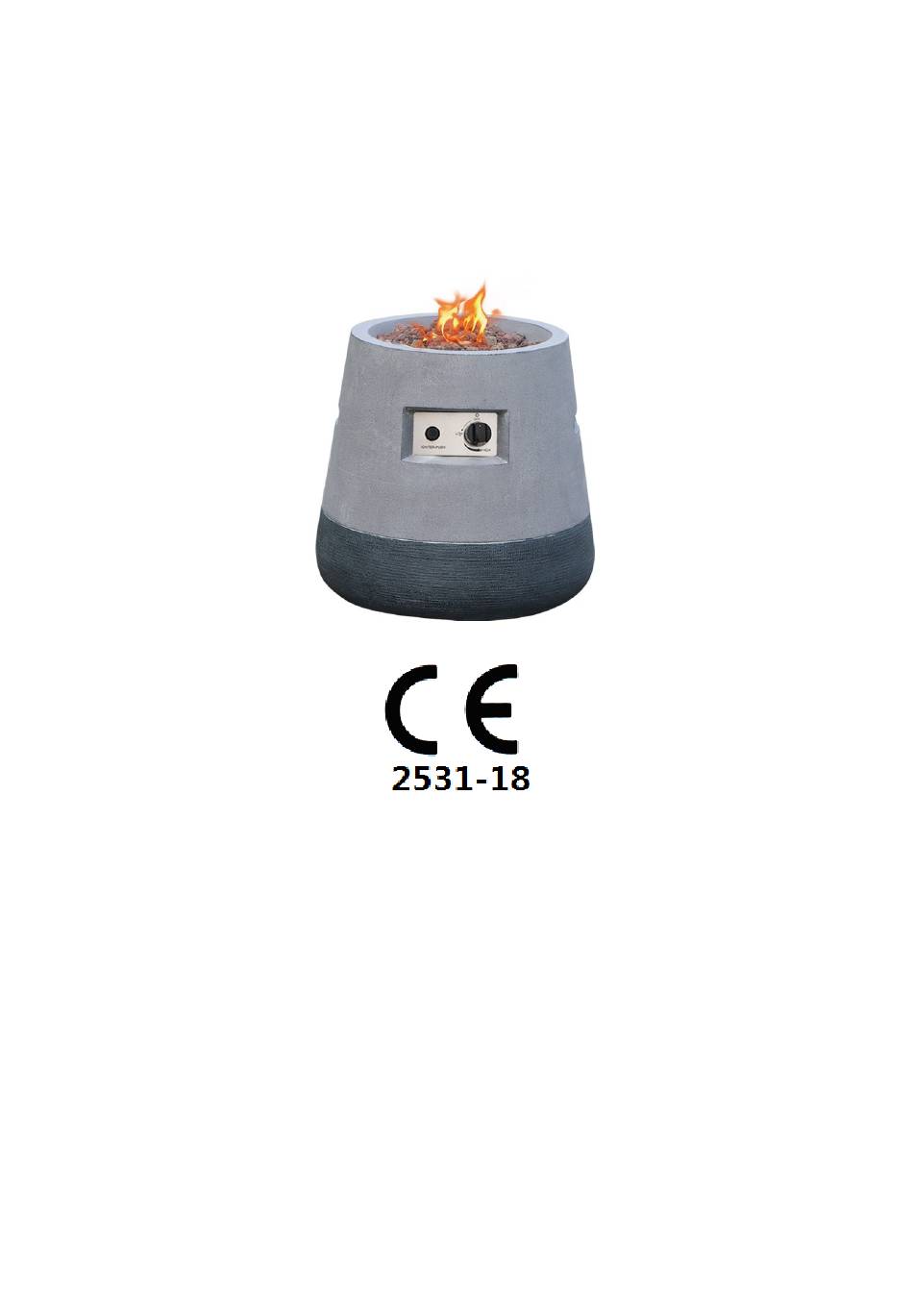

GAS FIRE PIT - dobar 35441E "STELLAR"
OWNER'S MANUAL
This appliance is intended for decorative purposes.
For Outdoor use only!
Keep the instruction for future reference!
Read the instructions before installation and use!
Warning: Accessible parts may be very hot, keep young children away.
This appliance must be installed in accordance with the rules in force,
and used only in a sufficiently ventilated space.
Consult instructions before installation and use of this appliance.
Read the instructions before using the appliance.
Importer:
dobar e-Commerce GmbH
Fabrikstraße 3
48599 Gronau, Germany
Phone: 0049-2562-8146-26
Email: info@dobar-e.com
1 of 11
Advertisement
Table of Contents
Related Manuals for dobar Stellar
Summary of Contents for dobar Stellar
- Page 1 GAS FIRE PIT - dobar 35441E “STELLAR” OWNER’S MANUAL This appliance is intended for decorative purposes. For Outdoor use only! Keep the instruction for future reference! Read the instructions before installation and use! Warning: Accessible parts may be very hot, keep young children away.
-
Page 2: Table Of Contents
Page 9 Maintenance and Cleaning Page 9 Storage (after use) Page 10 Troubleshooting Page 11 SPECIFICATION Product Name Gas Firepit “STELLAR” Model dobar 35441E Pin code 2531CS-0150 Nominal heat input 9.3 kW (Hi) Gas consumption 733 g/h (Hi) Gas category... -
Page 3: Gas Firepit Safety Warnings
ATTENTION: This appliance is fitted with flexible gas rubber pipe and clamps that must be used; never use different kind and always according to the National Rules in force of the country of destination. These components should be periodically substituted, according to the date reported on the body of each of them, or according to the National Rules in force of the country of destination. - Page 4 Check that the gas regulator seal is correctly fitted and able to fulfil its function. Turn off the gas supply at the LPG cylinder after use. Flexible metal or rubber pipe, used to connect the appliance with the LPG cylinder must be changed within the prescribed intervals and according to the National Rules in force (see expiry date on the flexible metal or rubber pipe).
-
Page 5: Expanded View
EXPANDED VIEW 5 of 11... -
Page 6: Installation
INSTALLATION Packed components list Item Description Quantity Fire Pit Fabric dust cover Lava Rock Adjusting pin 4pcs Metal cylinder holder Set up This Gas Fire Pit must be installed on flat, stable surface, away from any combustible materials or construction. ... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Lighting Before ignite the appliance, perform “Leakage Testing” in a well ventilated area (outdoor). At first use and after every LPG cylinder substitution, appliance gas circuit must be purged of the inside air before igniting! To do this, turn the control knob counter-clockwise to the ignition position and push it holding for 1 minute before attempting ignition. -
Page 8: Leakage Testing
Re-Lighting Turn control knob to “OFF” position. Wait at least 5 minutes, to let gas dissipate, before attempting burner re-light. Repeat the “Lighting” steps. LEAKAGE TESTING Never check for gas leakages with a flame or while smoking. This appliance needs to be periodically checked for leakages and an immediate check is required if the smell of gas is detected. -
Page 9: Lpg Cylinder
LPG CYLINDER LPG cylinder used must be in accordance with the National Rules in force. LPG cylinder should have collar to protect cylinder valve and never filled over 80% its capacity. Refer to your gas supplier for instructions how to use and handle LPG cylinder. Never use a LPG cylinder with a damaged body, valve, collar or foot ring. -
Page 10: Storage (After Use)
it unsafe for use. Clean burner holes by using a heavy duty pipe cleaner. Compressed air may help clear away smaller particles. Carbon deposits may create a fire hazard. If any carbon deposits develop, clean dome and engine with warm soapy water. -
Page 11: Troubleshooting
TROUBLESHOOTING Problem: Condition: Solution suggested: Control knob is not in Maximum position (big Turn control knob in Maximum position (big flame). flame). LPG cylinder valve is closed / Empty. Open the valve / Replace LPG cylinder with a new one. Blockage in the injector.
