Summary of Contents for FND KLR-28LA

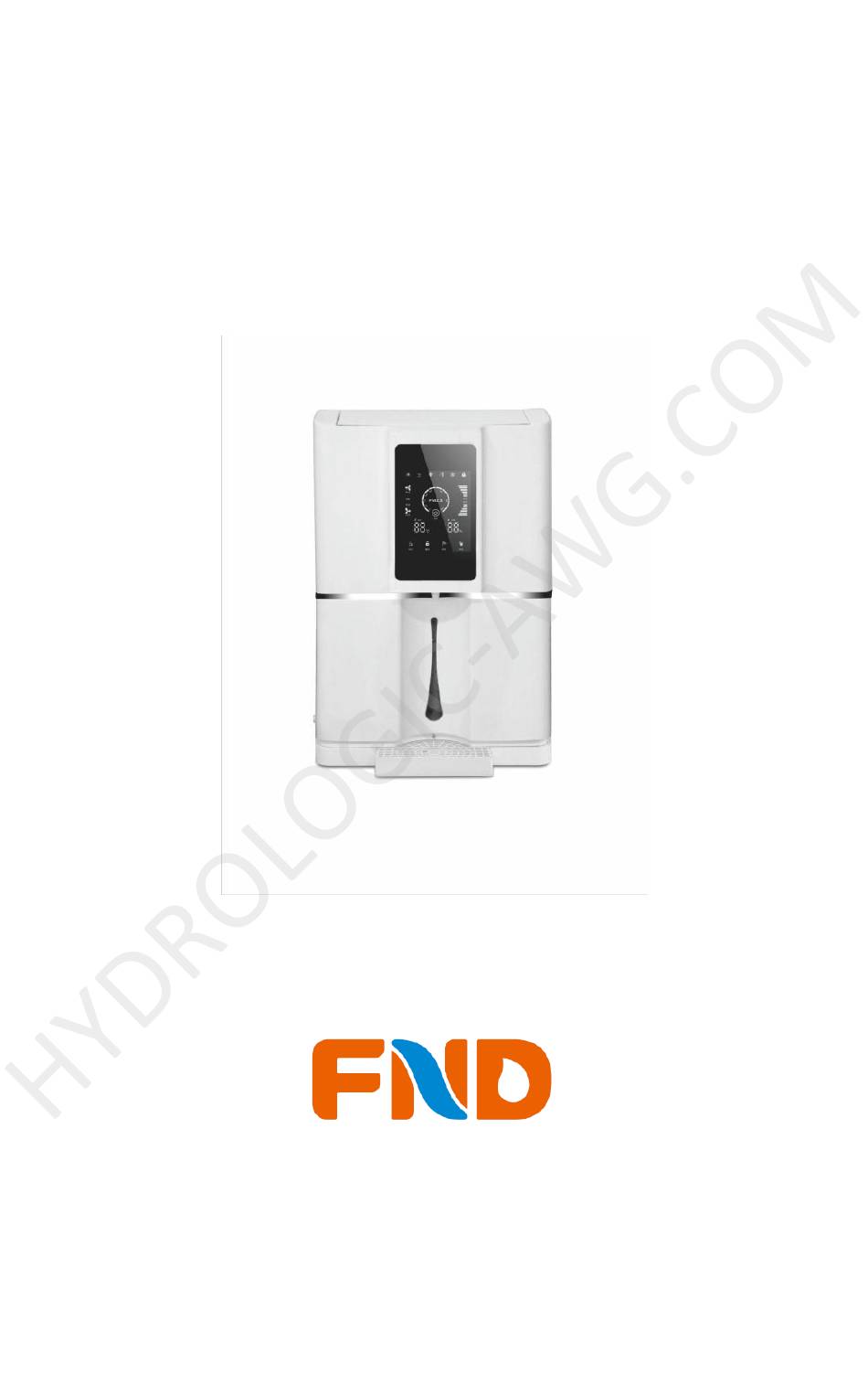

- Page 1 Model KLR – 28LA Water Dispenser Atmospheric Water Generator It is highly recommended to read this manual before use. Please keep this manual for future reference. SHENZHEN FND AIR AND WATER TECHNOLOGY DEVELOPMENT CO. LTD Revision : F20EA01...
- Page 2 INTRODUCTION Dear User. Congratulations on your purchase of our Atmospheric Water Generator. Our commitment is to provide you with healthy sustainable drinking water that is good for you and the environment. Water is an essential resource to all biological life. Without water there would be no life.
-
Page 3: Table Of Contents
CONTENTS Contents Page 1 Product Introduction Page 2 Product Features Page 2 Safety Instructions Page 3-4 Product Map Page 5 Installation Guide Page 6 How it Works Page 7 Additional Benefits Page 7 ... -
Page 4: Product Introduction
1. Product Introduction The Atmospheric Water Generator is a high-tech water supply machine that provides the highest quality drinking water by harvesting water from the humidity in the air. This process in turn dehumidifies and purifies the air in the room. ... -
Page 5: Safety Instructions
Safety Instructions Do not attempt to repair the machine or power cable. Contact your local dealer for service support. Only connect the machine to an appropriate power supply. Do not pull or damage the power cable. Do not connect the power supply with wet hands. - Page 6 Do not place any objects on top of the unit. Always keep the unit in an upright position. Do not place any flammable objects within 40 cm of the back of the machine because of hot exhaust air. ...
-
Page 7: Product Map
4. Product Map... -
Page 8: Installation Guide
5. Installation Guide The machine must be placed on a firm horizontal surface. Avoid placing the machine at any angles or may result in excessive noise during operation. Ensure a minimum gap of 200 mm between machine and walls to allow sufficient cooling and ventilation. -
Page 9: How It Works
6. How It Works Water is produced by harvesting moisture from the air. Humid air is drawn into the machine and passed through a multistage air filter and then cooled to dew point. The cooled air condensates. The condensate drips into a collection tank. The water is then pumped through a multistage Ultra filtration system and stored in a storage tank. -
Page 10: Display Introduction
8. Display Introduction Atmospheric Water Generator Display (P3) - Page 11 Functions 1. On/Off The On/Off light will flash when first plugged in. Press to turn machine on and press again to turn the machine off. 2. Hot Press for hot water. 3. Child Lock Press and hold the child lock button for 3 seconds to unlock hot water function.
- Page 12 9. Child Lock Indicator When the child lock indicator is illuminated, hot water dispensing is locked 10. Cold Water Indicator This shows that cold water is being dispensed. 11. Air Filter Indicator Normally off. Illuminates and flashes when air filter needs to be replaced.
- Page 13 15. Disinfection Indicator When water is being dispensed, the UV lamp turns on to re- sterilize the water being dispensed and the indicator will illuminate. During automatic water circulation in the storage tank the UV lamp will also turn on and the indicator will show that the UV lamp is on.
-
Page 14: Operating Instructions
9. Operating Instructions 1. Plug the machine into a suitable power outlet. The buzzer will beep once. The machine will run a short diagnostic test. Wait for the power on/off light to start flashing. Press the on button. 2. Provided the temperature is above 15 C with the humidity above 25% the machine will begin to produce water. - Page 15 5. Press cold and after 2 seconds cold water will begin dispensing. The display will indicate the temperature of the cold water and cold indicator will be illuminated. Press cold again to stop dispensing water. 6. Hot water tank level is controlled by system. Press and hold Child Lock Button for 3 seconds.
- Page 16 Switch off hot water function: Press and hold Child Lock Button for 3 seconds (Hot water function unlocked) Press and hold hot button for 5 seconds. (Hot water function is turned off) The Hot button will keep flashing to indicate the hot water tank is automatically draining back into the collection tank.
- Page 17 11. Filter indicator. When it flashes red the filters need to be replaced. To reset after filter change, press and hold Child Lock and Cold Buttons together for 3 seconds. 12. Air filter indicator. The light is normally off. When the light illuminates and flashes, the air filter needs to be replaced.
- Page 18 16. To drain the water in the cold and hot water tanks. Open the water outlet cover and the cold water will drain out when it has finished draining press and hold Child Lock and Wind Direction Buttons together for 3 seconds. The hot water tank will begin draining.
- Page 19 19. E3 code indicates the cold water pump is faulty. E4 code indicates the hot water pump is faulty. E5 code indicates the evaporator temperature sensor is faulty. E6 code indicates the cold water tank sensor is faulty. E7 code indicates the hot water tank sensor is faulty. Attention: While dispensing or draining hot water, take care to avoid hot water burns.
-
Page 20: Care & Maintenance
Care & Maintenance 1) Clean the surface of the machine with a damp cloth. 2) Remove water collection tray, clean and replace. Attention: When Cleaning 1) Clean the machine at least once per week. 2) When cleaning remove the power cable from the outlet. -
Page 21: Air Filter Replacement
11. Replacement of Air Filter The machine has microcomputer control of the filters. It will give a flashing warning on the display when the air filter needs to be replaced. The air filter life span is approximately 6 months depending on the placement environment. -
Page 22: Water Filter Replacement
12. Replacement of Water Filters The machine has microcomputer control of the filters. The display will show the condition of the water filters by means of 6 white bars that will reduce in number as the filters reach the end of their lifespan. -
Page 23: External Water Connection
13. External Water Inlet 1) The machine must be on before connecting to external water supply. 2) Connect the hose with pre-water filter to external water supply fitting. (Remove cap) 3) Press and hold the Wind Direction button for 3 seconds. 4) The display will change to external water supply. -
Page 24: Trouble Shooting
14. Trouble Shooting Problem Possible Cause Solution The compressor will not run if the ambient temperature is Ambient Temperature or humidity is out below 15C or above 43 C or if of working range. Water Production is the humidity is below 25% very slow Place Machine in an area with Air circulation is poor. -
Page 25: Technical Specifications
Technical Specifications Model: KLR – 28LA Operating Temperature: 15 ̊ C – 43 ̊ C Capacity: 20L/Day Operating Humidity: <25% Rated Voltage: 220V~240V Water Tank Volume: 9L Frequency: 50 Hz Water-Making Power: 400W Water-Making Current: 1.8A Heating Power: 450W Heating Current: 2.0A Total Power: 850W Refrigerant: R134a Refrigerant Volume: 220g... -
Page 26: Packing List
UF System 2) Carbon Block Filter F20CB2 (Water filters) 3) Post Carbon Filter F20PC3 4) Mineral Filter F20MF4 3 in 1 Kit Part Number 1) Aluminium Separator Air Filter 2) HEPA Cotton Filter FND-F20-AF 3) Activated Carbon Modified molecular sieve... -
Page 27: Circuit Diagram
18. Circuit Diagram... -
Page 28: Warranty
19. Warranty FND is confident of the quality of its products and offers a 1 year limited warranty from the date of purchase and covers any defect in materials or workmanship under normal use during the warranty period. Cover During the warranty period the Authorised Distributor &... - Page 29 United Arab Emirates Authorised Distributer & Service Centre Hydrologic Electronics Trading LLC Tel: +971 (50) 551 7406 Email: info@hydrologic-awg.com www.hydrologic-awg.com...
