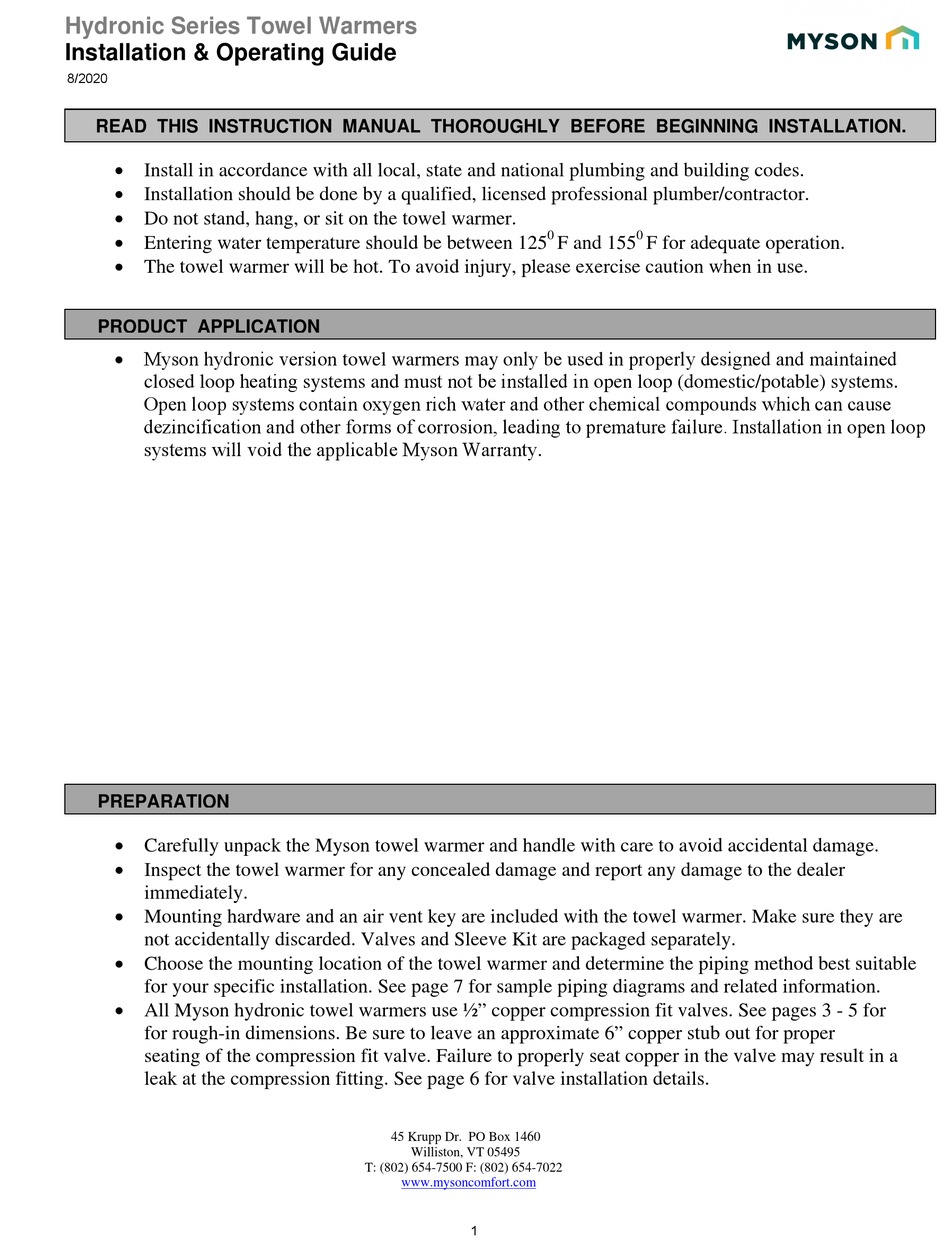

Hydronic Series Towel Warmers
Installation & Operating Guide
8/2020
READ THIS INSTRUCTION MANUAL THOROUGHLY BEFORE BEGINNING INSTALLATION.
Install in accordance with all local, state and national plumbing and building codes.
Installation should be done by a qualified, licensed professional plumber/contractor.
Do not stand, hang, or sit on the towel warmer.
Entering water temperature should be between 125
The towel warmer will be hot. To avoid injury, please exercise caution when in use.
PRODUCT APPLICATION
• Myson hydronic version towel warmers may only be used in properly designed and maintained
closed loop heating systems and must not be installed in open loop (domestic/potable) systems.
Open loop systems contain oxygen rich water and other chemical compounds which can cause
dezincification and other forms of corrosion, leading to premature failure. Installation in open loop
systems will void the applicable Myson Warranty.
PREPARATION
Carefully unpack the Myson towel warmer and handle with care to avoid accidental damage.
Inspect the towel warmer for any concealed damage and report any damage to the dealer
immediately.
Mounting hardware and an air vent key are included with the towel warmer. Make sure they are
not accidentally discarded. Valves and Sleeve Kit are packaged separately.
Choose the mounting location of the towel warmer and determine the piping method best suitable
for your specific installation. See page 7 for sample piping diagrams and related information.
All Myson hydronic towel warmers use ½" copper compression fit valves. See pages 3 - 5 for
for rough-in dimensions. Be sure to leave an approximate 6" copper stub out for proper
seating of the compression fit valve. Failure to properly seat copper in the valve may result in a
leak at the compression fitting. See page 6 for valve installation details.
45 Krupp Dr. PO Box 1460
Williston, VT 05495
T: (802) 654-7500 F: (802) 654-7022
www.mysoncomfort.com
1
0
0
F and 155
F for adequate operation.
