TX04 FPV Video Camera with 40-Channel

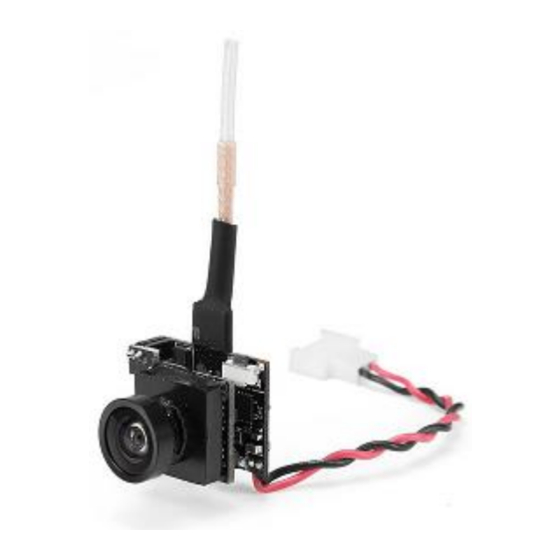

The TX04 is a small, lightweight video camera with an integrated 40-channel 5.8GHz video
transmitter which is compatible with most 5.8GHz FPV goggles. It is ideal for use on micro-
drones or small robots.
Specification
Frequency
Channels
Transmitting Power
Input Voltage
Current
Definition
Lens
Video System
Dimensions (mm)
Weight
Operating Frequency Table (GHz)
BAND\CH
Band 1
5.865
Band 2
5.733
Band 3
5.705
Band 4
5.740
Band 5 (RaceBand)
5.658
Switching Bands, Channels, and Power Output
All the functions on the TX04 are controlled via a single push button. On the rear of the camera,
there are 5 red LEDs which indicate the band and 2 blue LEDs which indicate the channel.
Please note there are two possible layouts of these LEDs but the functionality is identical:
6
1 2 3 4 5
7
See tables below for how to read the band and channel LEDS
Transmitter
5.8GHz
40
25mW
2.5V – 5.5V
255 – 365mA
1000TVL M7 Lens
120º FOV, H170º
PAL
17.5 x 17 x 14
4g
CH1
CH2
CH3
5.845
5.825
5.752
5.771
5.685
5.665
5.760
5.780
5.695
5.732
CH4
CH5
5.805
5.785
5.765
5.790
5.809
5.828
5.645
5.885
5.905
5.800
5.820
5.840
5.769
5.806
5.843
View of rear
of camera
CH6
CH7
CH8
5.745
5.725
5.847
5.866
5.925
5.945
5.860
5.880
5.880
5.917
1 2 3 4 5
6
7
Advertisement
Table of Contents
Summary of Contents for Airgineers TX04
- Page 1 Switching Bands, Channels, and Power Output All the functions on the TX04 are controlled via a single push button. On the rear of the camera, there are 5 red LEDs which indicate the band and 2 blue LEDs which indicate the channel.
- Page 2 Switching channel A short press of the button changes the channel which is indicated using the blue LEDs (6 and 7). The below table shows how these LEDs indicate which channel is selected. Channel LED 6 status LED 7 Status Flash 2 times Flash 3 times Flash 4 times...
Need help?
Do you have a question about the TX04 and is the answer not in the manual?
Questions and answers
