KNX IP Router with KNX Security
LK-IP/KNXs REG
Operating Manual
90403

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUXOMAT LK-IP/KNXs REG and is the answer not in the manual?

Questions and answers

Summary of Contents for B.E.G. LUXOMAT LK-IP/KNXs REG

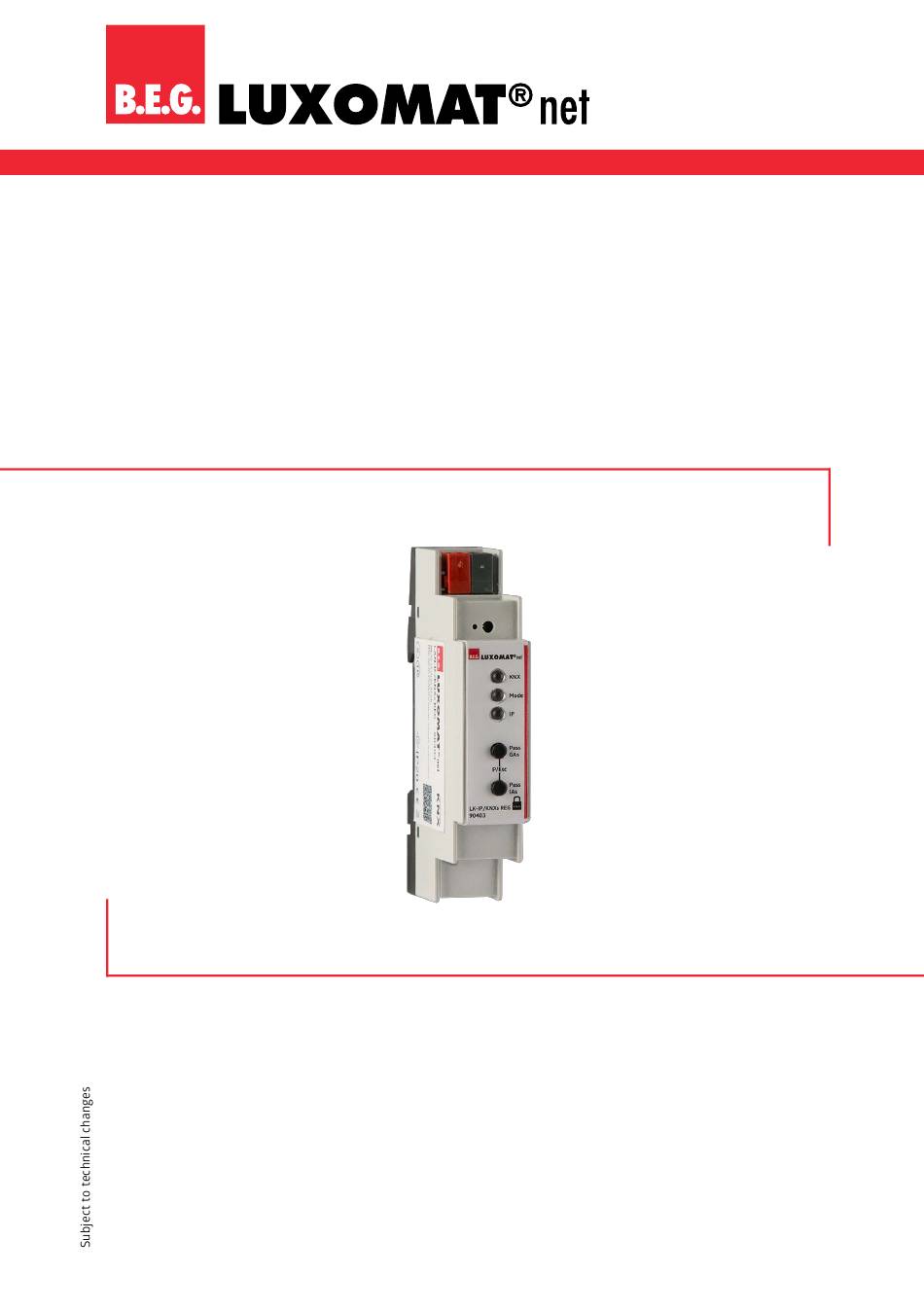

  • Page 1 KNX IP Router with KNX Security LK-IP/KNXs REG Operating Manual 90403...
  • Page 2 All device data can also be found here: https://beg-luxomat.com/qr.php?prtno=90403 © 2020 B.E.G. Brück Electronic GmbH Gerberstraße 33 51789 LindlarGERMANY Phone: +49 (0) 2266 90121-0 Fax: +49 (0) 2266 90121-50 E-mail: info@beg.de Internet: www.beg-luxomat.com...

  • Page 3: Table Of Contents

    Content About this document ............3 1.1 Other applicable documents .
  • Page 4 Content 6.4.2 Interface settings within ETS ..........17 6.4.3 ETS product database .

  • Page 5: About This Document

    LK-IP/KNXs REG 90403 About this document Other applicable documents Short operating manual 90403M1_Short_MAN_LK-IP_KNXs_REG_de_en_fr_nl_V1 (supplied with the device). Used symbols and signal words Symbol indicating possible dangers to persons Symbol indicating possible property damage Symbol for useful information and tips NOTICE Signal word for possible property damage CAUTION Signal word for possible minor injuries...

  • Page 6: Foreseeable Misuse

    LK-IP/KNXs REG 90403 NOTICE Comply with conditions and regulations! ➜ Observe the locally applicable legal regulations and the rules of the employer's liability insurance association. Foreseeable misuse Any use other than that defined under "Intended use" or which goes beyond that use is considered improper use.

  • Page 7: Disclaimer

    LK-IP/KNXs REG 90403 Disclaimer B.E.G. Brück Electronic GmbH is not liable in the following cases: ￭ The device is not being used properly. ￭ Reasonably foreseeable misuse is not taken into account. ￭ Mounting and electrical connection are not properly performed. ￭...

  • Page 8: Functions

    LK-IP/KNXs REG 90403 The IP address can be assigned via DHCP or via the ETS configuration. The device operates according to the KNXnet/IP specification using core, device management, tunneling and routing. The LK-IP/KNXs REG has an extended filter table for main groups 0 … 31 and can buffer up to 150 telegrams.

  • Page 9: Knx Data Security For The Device

    LK-IP/KNXs REG 90403 3.2.4 KNX Data Security for the device The LK-IP/KNXs REG also supports KNX Data Security to protect the device from unauthorised access from the KNX bus. If the KNX IP router is programmed via the KNX bus, this is done with encrypted telegrams.
  • Page 10 LK-IP/KNXs REG 90403 LK-IP/KNXs REG as line coupler 1.1.1 1.1.7 2.1.1 2.1.7 2.1.2 2.1.8 1.1.2 1.1.8 1.1.3 1.1.9 2.1.3 2.1.9 1.1.4 1.1.10 2.1.4 2.1.10 1.1.5 1.1.11 2.1.5 2.1.11 1.1.6 1.1.12 2.1.6 2.1.12 KNX TP KNX TP 1.1.0 2.1.0 Switch The individual address assigned to the LK-IP/KNXs REG determines whether the device operates as a line or area coupler.
  • Page 11 LK-IP/KNXs REG 90403 LK-IP/KNXs REG as area coupler NOTICE LK-IP/KNXs REG as area coupler! If the LK-IP/KNXs REG is used as a area coupler (x.0.0), there must not be a KNX IP Router in the topology beneath it. For example, if a KNX IP router has the individual address 1.0.0, there must be no KNX IP router with the address 1.1.0.
  • Page 12 LK-IP/KNXs REG 90403 LK-IP/KNXs REG as area and line coupler The KNX IP router has a filter table and thus contributes to reducing the bus load. The filter table (8 kB) supports the extended group address range (main groups 0 … 31) and is automatically gener- ated by the ETS.

  • Page 13: Mounting

    LK-IP/KNXs REG 90403 Mounting The LK-IP/KNXs REG is fixed to a top-hat DIN rail in the sub-distributor and requires 1 division unit (18 mm) of space. top-hat DIN rail TH 35 EN 60715 CAUTION Observe KNX installation regulations! This device complies with the KNX guidelines. Detailed knowledge of the KNX system is required for commissioning.

  • Page 14: Electrical Connection

    LK-IP/KNXs REG 90403 Electrical connection CAUTION Observe KNX installation regulations! This device complies with the KNX guidelines. Detailed knowledge of the KNX system is required for commissioning. The device is powered via the KNX bus main line connection. It is not necessary to connect an external supply voltage.

  • Page 15: Commissioning

    LK-IP/KNXs REG 90403 Commissioning Factory default settings The following configuration is set by factory default: Individual device address: 15.15.0 Number of configured KNXnet/IP tunneling connections: Individual address of tunneling connection: 15.15.240 IP address assignment: DHCP Initial key (FDSK): active Security mode: not active 6.1.1 Reset to factory default settings...

  • Page 16: Manual Operation And Status Display

    LK-IP/KNXs REG 90403 Manual operation and status display The KNX LED (4) lights up green if the device is successfully powered by the KNX bus. If the LED is flickering, telegram traffic takes place on the KNX bus. Errors in the communication (e.g. repetitions of telegrams or telegram fragments) are indicated by a short change of the LED color to red.
  • Page 17 LK-IP/KNXs REG 90403 Overview of the different indications of the Mode LED (5): LED Status Meaning LED lights green Device is working in standard operation mode. LED lights red Programming mode is active. Programming mode is not active. LED flashes 1 x orange Manual operation is active: Forwarding IA or GA Programming mode is not active.

  • Page 18: Commissioning Via Ets

    LK-IP/KNXs REG 90403 Commissioning via ETS 6.4.1 Programming with the ETS The LK-IP/KNXs REG can be programmed in different ways via the ETS: 6.4.1.1 Via the KNX bus The device only needs to be connected to the KNX bus. The ETS requires an additional interface (for example, USB) to have access to the bus.

  • Page 19: Interface Settings Within Ets

    LK-IP/KNXs REG 90403 INFO Due to the significantly shorter transmission times, it is recommended to perform down- loads via IP. 6.4.2 Interface settings within ETS Within the ETS, KNX interfaces can be selected and set up via the ETS menu "Bus –> Interfaces". The ETS can access configured KNX IP routers even without a database entry.
  • Page 20 LK-IP/KNXs REG 90403 Like all programmable KNX devices the LK-IP/KNXs REG has an individual address which can be used to access the device. This is used, for example, of the ETS when downloading to the KNX IP router via the bus. For the interface function the device contains additional individual addresses that can be set in the ETS.

  • Page 21: Ets Product Database

    LK-IP/KNXs REG 90403 6.4.3 ETS product database The ETS product database (ETS 5.7 or higher) can be downloaded from the product website of the LK-IP/KNXs REG: https://beg-luxomat.com/qr.php?prtno=90403 Operating Manual...

  • Page 22: Project Password

    LK-IP/KNXs REG 90403 6.4.4 Project password If the first product is inserted into a project with KNX Security, the ETS prompts you to enter a project password. This password protects the ETS project against unauthorized access. This password is not a key that is used for KNX communication.

  • Page 23: Device Certificate

    LK-IP/KNXs REG 90403 6.4.5 Device certificate ETS requires a device certificate for each device with KNX Security that is created in the ETS. This certificate contains the serial number of the device as well as an intangible key (FDSK = Factory Default Setup Key).

  • Page 24: Device Properties

    LK-IP/KNXs REG 90403 6.4.6 Device properties In the ETS, some settings are displayed in addition to the parameter dialog in the properties dialog (at the edge of the screen). The IP settings can be made here. KNX addresses The additional addresses for the interface connections are displayed in the topology view. Each individual KNX address can be changed by clicking on the list entry and typing in the desired address into the “Individual Address”...

  • Page 25: Device Properties - Settings

    LK-IP/KNXs REG 90403 Device properties – Settings By clicking on the LK-IP/KNXs REG device entry within your ETS projects topology view, an infor- mation column "Properties" will appear on the right side of the ETS window. Within the "Settings" overview, you can change the device name of the LK-IP/KNXs REG. Operating Manual...
  • Page 26 LK-IP/KNXs REG 90403 If secure tunneling is activated, a unique password will be created automatically for each tunnel. This password can be displayed under the "Settings" overview, when a tunnel is selected. Operating Manual...

  • Page 27: Device Properties - Ip

    LK-IP/KNXs REG 90403 Device properties – IP Within the “IP” overview the IP network specific options of the LK-IP/KNXs REG can be changed. By changing "Obtain an IP address automatically" (via DHCP) to “Use a static IP address" (fixed IP address) the IP address, subnet mask, and default gateway can be set freely.
  • Page 28 LK-IP/KNXs REG 90403 IP address Here the IP address of the LK-IP/KNXs REG can be entered. This is used to address the device via the IP network (LAN). The IP addressing should be coordinated with the administrator of the network. Subnet mask Enter the subnet mask here.

  • Page 29: Setting Parameters With The Ets

    LK-IP/KNXs REG 90403 6.4.7 Setting parameters with the ETS The following parameters can be set using the ETS. General settings Prog. mode on device front In addition to the normal programming button (3) the device allows activating the programming mode on the device front without opening the switchboard cover. The programming mode can be activated and deactivated via pressing simultaneously both buttons (7) and (8).
  • Page 30 LK-IP/KNXs REG 90403 Group telegrams (main groups 0 to 13) Disabling No group telegram of these main groups is routed to IP. All group telegrams of these main groups are routed to IP independent of the Route filter table. This setting is for test purposes only. The filter table is used to check whether or not the received group telegram Filter should be routed to IP.

  • Page 31: Routing (Ip -> Knx)

    LK-IP/KNXs REG 90403 NOTICE Answer with NACK! When using “Answer with NACK” an access to the device via KNX TP is no longer possible. The configuration must be performed via IP. Routing (IP -> KNX) Group telegrams (main groups 0 to 13) Disabling No group telegram of these main groups is routed to KNX.
  • Page 32 LK-IP/KNXs REG 90403 Individually addressed telegrams Disabling No individually addressed telegram is routed to KNX. Route All individually addressed telegrams are routed to KNX. The individual address is used to check whether the received individually Filter addressed telegram should be routed to KNX. Broadcast telegrams Disabling No received broadcast telegram is routed to KNX.

  • Page 33: Filter Table

    LK-IP/KNXs REG 90403 6.4.8 Filter table The filter table is automatically created by the ETS. The group addresses of the telegrams which shall be forwarded via the router are added to the filter table. The content of the filter table can be displayed via the preview: The filter table can be extended by manually adding group addresses.

  • Page 34: Care, Maintenance And Disposal

    LK-IP/KNXs REG 90403 Care, maintenance and disposal Cleaning If necessary, clean the device surface with a soft, lint-free cloth. NOTICE Do not use aggressive cleaning agents! ➜ Do not use aggressive cleaning agents such as thinner or acetone for cleaning the device.

  • Page 35: Service And Support

    LK-IP/KNXs REG 90403 Service and support Manufacturer's warranty The company B.E.G. Brück Electronic GmbH grants a warranty in accordance with the warranty conditions, which you can download from the website at https://www.beg-luxomat.com/service/ downloads/ . 9.1.1 Product code The product is provided with a product code that enables the product to be traced in the event of a warranty/complaint.

  • Page 36: Technical Data

    LK-IP/KNXs REG 90403 Technical Data 10.1 General data Voltage via KNX Bus Current consumption approx. 20 mA RJ45-socket for LAN (Ethernet), Connections bus connector red/black for KNX-TP 100BaseT (100MBit/s), internet protocols: Ethernet ARP, ICMP, IGMP, UDP/IP, TCP/IP, DHCP and Auto IP Device model: 0x091A Medium: IP/TP KNX Security (AES-128) incl.

  • Page 37: Dimensioned Drawings Lk-Ip/Knxs Reg

    LK-IP/KNXs REG 90403 10.2 Dimensioned drawings LK-IP/KNXs REG 18 (1 TE) EU declaration of conformity The product complies with the following EU directives Electromagnetic Compatibility (2014/30/EU) Low voltage (2014/35/EU) Restriction of the use of certain hazardous substances in electrical and electronic equipment (2011/65/EU) NOTICE EU declaration of conformity...

  • Page 38: Annex - Open Source Licenses

    LK-IP/KNXs REG 90403 Annex – Open Source Licenses This product contains open source software license: curve25519-donna: Curve25519 elliptic curve, public key function Source: http://code.google.com/p/curve25519-donna/ Copyright 2008, Google Inc. All rights reserved. Redistribution and use in source and binary forms, with or with-out modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
