Charge compatible devices wirelessly and on-the-go with a portable, wireless power bank. Simply place your device on the power bank
to enable the wireless charge function. You can also charge your device using a USB and USB Type-C lead for simultaneous fast
charging. The compact, robust design comes with handy LED indicators and is light enough to take anywhere with you.
• Supports fast wireless charging for Samsung 10W and iPhone 7.5W (compatible mains adaptor required)
• 5W Universal Qi charging mode for other wireless devices
• USB-QC3.0 and USB Type-C PD outputs for simultaneous fast charging of compatible devices
• Tough rubberized finish
• LED charging and power indicators
Technical Specifications
Power input
USB output current
Output
Battery type
Dimensions
Weight
Features
Charging the power bank:
•
Note: always fully charge the power bank before first use. This unit requires 3 to 4 full drains and recharges before working to its
optimum performance.
•
When not used over long periods always recharge the unit every 3 months.
•
To charge the unit, first insert the USB-A plug end of the charging lead into a USB port on either a PC or laptop, or a certified USB
power supply.
•
Next insert the USB-C plug end of the charging lead into the USB-C charging port on the power bank.
•
The 4 battery charge indicators (25%, 50%, 75% and 100%) on the power bank will light up and show the current charge level of
the unit and the corresponding level light will flash to indicate the unit is charging.
•
When the unit is fully charged all 4 of the battery charge indicators will stay lit.
•
To view the current charging status of the power bank at any time, press the wireless charging button on the side of the unit.
www.avsl.com

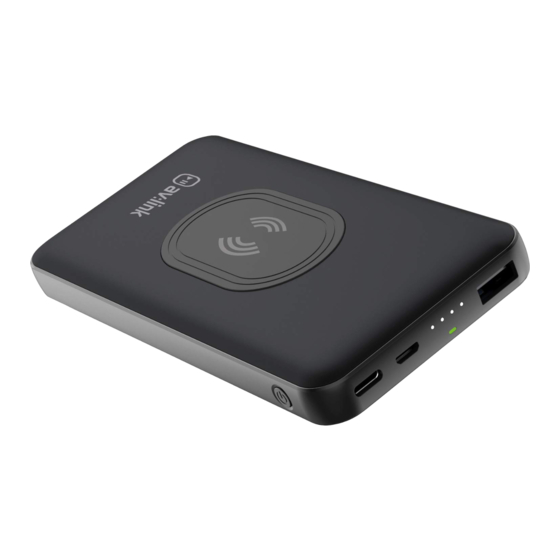

Wireless Power Bank with Fast Charging
5V 2A (USB); 5V 3A (USB Type-C)
up to 3000mAh (USB and USB Type-C)
10W, 7.5W & 5W (wireless)
Polymer
148 x 73 x 16.5mm
250g
USB-C input
DC 5V~3A
DC 9V~2A
Micro USB input
USB-C output
DC 5V~2A
DC 5V~3A
DC 9V~2A
DC 9V~2A
DC 12V~1.5A
Wireless charging button
Wireless charging plate
10W (max)
Battery charge indicators
USB-A output
DC 5V~3A
DC 9V~2A
DC 12.5C~1.5A
Wireless function light
AVWPB10
Item ref: 421.777UK
User Manual
421.777UK
Advertisement
Table of Contents
Related Manuals for AV Link AVWPB10
Summary of Contents for AV Link AVWPB10
- Page 1 Wireless Power Bank with Fast Charging AVWPB10 Item ref: 421.777UK User Manual Charge compatible devices wirelessly and on-the-go with a portable, wireless power bank. Simply place your device on the power bank to enable the wireless charge function. You can also charge your device using a USB and USB Type-C lead for simultaneous fast charging.
- Page 2 Charging your device wirelessly: • Press the wireless charging button on the side of the unit and the wireless function light will flash 3 times, then light up green to indicate the wireless charging function is enabled. • Place your device on top of the wireless charging plate, ensuring the centre of your device is located on the centre of the plate at any angle (see above) •...
