Advantage Controls GF Series Installation Maintenance Repair Manual

Digital glycol feeder with nano

Advertisement

Quick Links

Manual
Model GF
Digital Glycol
Feeder
with
NANO
ENTER

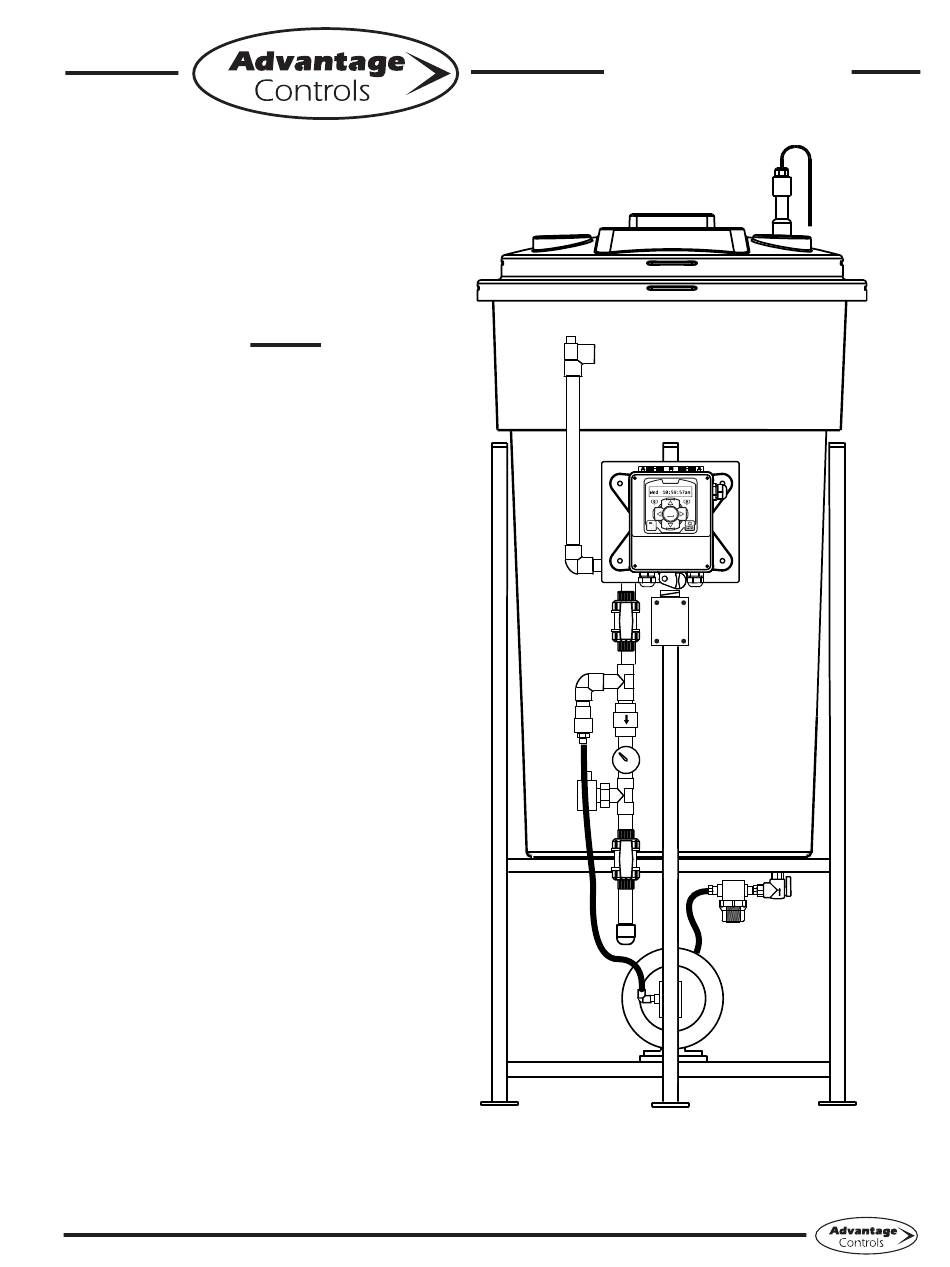

Installation
Maintenance
Repair
Manual
Advantage Controls
P.O. Box 1472
Muskogee, OK 74402
Phone: 918-6866211
Fax: 888-686-6212
11/2018
www.advantagecontrols.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GF Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Advantage Controls GF Series

  • Page 1 Manual Model GF Digital Glycol Feeder with NANO ENTER Installation Maintenance Repair Manual Advantage Controls P.O. Box 1472 Muskogee, OK 74402 Phone: 918-6866211 Fax: 888-686-6212 11/2018 www.advantagecontrols.com...
  • Page 2: Table Of Contents

    Reference Chart % Propylene Glycol ................15 Reference Chart % Ethylene Glycol ................15 Introduction The Advantage Controls Glycol Feed Systems are design to regulate pressure in closed loop Hydronic Heating and Cooling applications. Advantage Controls micro-processor base controller reads a solid state pressure transducer, displays system pressure, and uses a 16 character keyboard for the entry of control parameters.
  • Page 3: Model Numbering And General Specifications

    II. Model Numbering and General Specifications BUILD A MODEL GF - __ __ __ __ __ __ - __ __ TANK SELECTION 0 = No tank 1 = 55 gallon poly Most units include poly tank and stand, low 2 = 100 gallon poly level switch with audible alarm (100db) with 3 = 30 gallon poly silence switch, dry contact alarm, pressure...
  • Page 4: Installation

    III. Installation Electrical Wiring The standard digital glycol feeder controller has an internal regulated power supply that will operate in the range of approximately 100 to 250 VAC on the incoming wiring. Output relay(s) are protected with a replaceable fuse. Each relay’s output voltage will equal incoming line voltage. The Standard prewired units are supplied with a 8 foot, 16 AWG, 3 wire grounded, 120 VAC USA power cord for incoming power.
  • Page 5: Typical Installation And Measurements

    Typical Installation and Measurements ENTER System Connection Circulation Pump GLYCOL STAND FOOT PRINT 1/4” bolt hole drilled 3/4” from outside edge Note: This is for mounting holes only. Controller will extend beyond this depth. 30 gal 23 ¾” 51” 27 ½” 25 ½”...
  • Page 6: Relay And Logic Cards

    Relay Card for W Option Switch # Position Function POWER SUPPLY Backlight off; flashes on w/ alarm CONTROL Backlight on; flashes off w/ alarm Ribbon Cable Normal Operation Relay Relay “Burn-in” Mode Normal Operation Resets to factory defaults RELAY 1 RELAY 2 Power In Relay 1 Relay 2 NanoTron-N Logic Card If the mA OUT Power switch is on INT the unit’s internal 24 VDC is Contrast...
  • Page 7: Start Up And Test Procedure / Recommendations

    Start Up and Test Procedure / Recommendations 1. Before filling tank, be sure that the tank and the filter bowl are free of packing material and or construction debris. 2. Check plumbing as it may have become loose from vibrations during shipping. 3. Fill Tank 4. Open isolation valve to system. 5. If there are no leaks verify that the pressure gauge agrees with system pressure. This value may vary do to connection to Hydronic systems placement.
  • Page 8: Nanotron Ma Menu Map

    Calibration Control Set 4-20 Output Timer Set Password 0000 4mA applied: N Setpoint 500.0 4mA In: 04350 Pulse Run After 0100 4 mA = 000.0 Only shows Flow Sw: Close Diff 050.0 20mA= 999.9 if WM active Run Time mm:ss 20mA applied: N 20mA In: 21350 DigIn: W Meter...
  • Page 9 Force Set Diagnostics 4-20 Output Water Meter Clock Set Only shows Password 0000 Force On: Both Nano-4-20 4 mA = 00.00 if WM active Set Time Run After 0100 Hi Lvl: Close Reset Meter? N FW: ?.?.? 20mA= 99.99 Set Date Run Time mm:ss R1 Cntrl mm:ss Meter Units...
  • Page 10: Parts List

    VII. Parts List Parts List 1. Level wand for 30 gl = ALL-S30; 55 gl = ALL-S42 2. Tank lid for 30 gl = LID-30-C1D; 55 gl = LID-55-C1D 3. Tank for 30gl = AGF-APCT-30; for 55 gl = AGF-APCT-55 4.
  • Page 11 Parts List...
  • Page 12: Troubleshooting And Maintenance

    VIII. Troubleshooting & Maintenance The Advantage Glycol Feeder is designed for many years of trouble free operation. Should a problem occur, refer to the following chart to help identify the problem. If replacement is required, follow the procedures listed in the Warranty and Factory Service portion of this manual. NO POWER TO UNIT, POWER PRESENT AT RECEPTACLE This happens if the power cord is tripped over or gets caught and pulled by accident.
  • Page 13 • If Yes, inspect end of level wand for debris or damage, replace if needed. (The float at bottom of the wand should have free movement, up and down. • If No, inspect wire for damage. If no damage visible inspect internal wiring. (See NO POWER TO UNIT, POWER PRESENT AT RECEPTACLE 1 thru 10 above) If no resolution is found, record Serial / Model numbers and call customer service LOW LEVEL ALARM STAYS ON Disconnect level wand connection and short across connectors with screw driver.
  • Page 14: Warranty

    Manufacturer’s Product Warranty Advantage Controls warrants units of its manufacture to be free of defects in material or workmanship. Liability under this policy extends for 12 months from date of installation for all aspects of the glycol feeder with the controller only covered for an additional 12 months.
