Summary of Contents for Precaster CA109

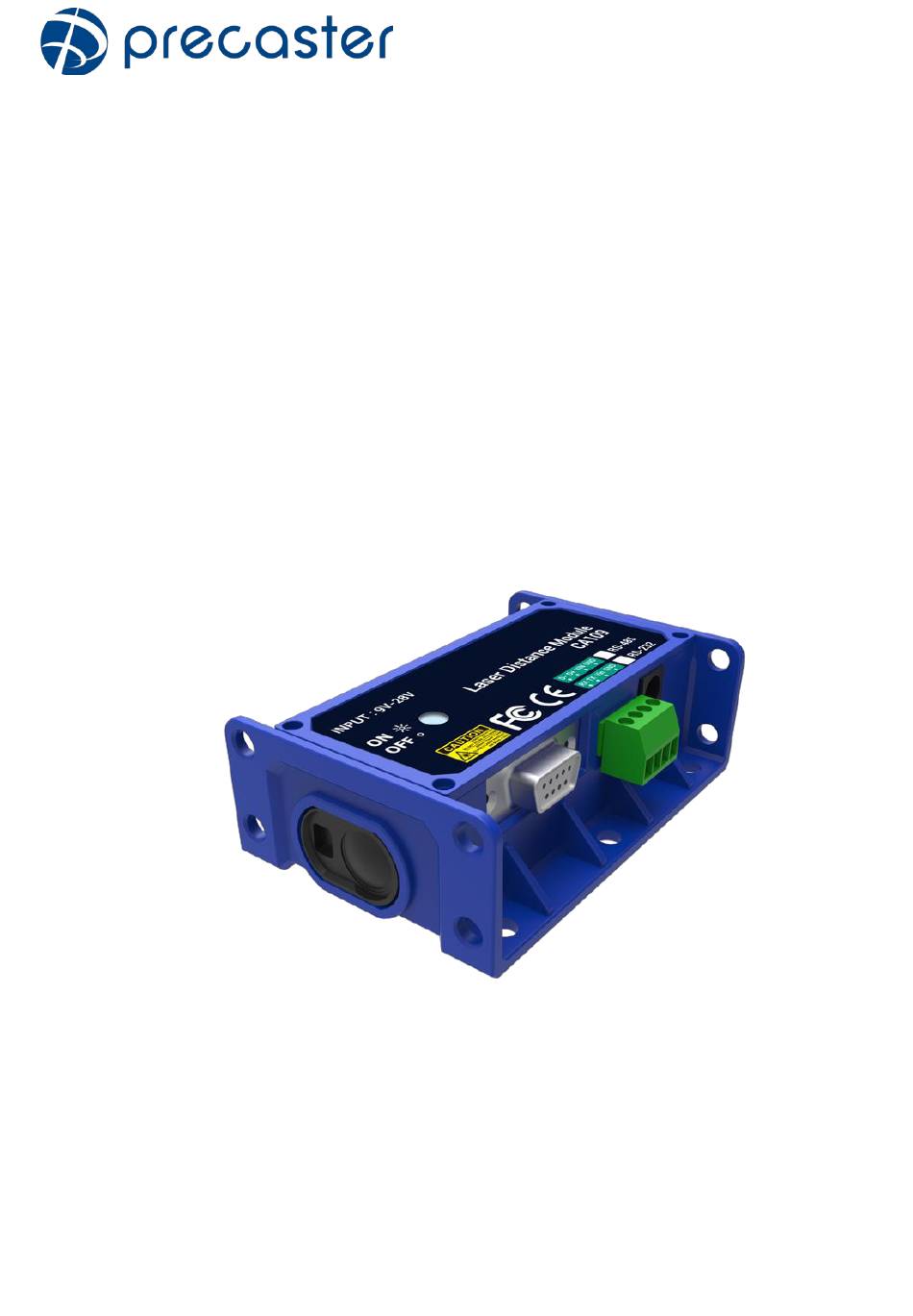

- Page 1 CA109 Manual Ver. 180212 CA109 Specification & Instruction Book...
-
Page 2: Table Of Contents
CA109 Manual Ver. 180212 Content 1. INTRODUCTION……………………………………………………………………………………...3 2. PRECAUTION………………………………………………………………………………………..4 3. SPECIFICATION………………………………………………………………………………………5 4. PROTOCOL & DATA FORMAT…………………………………………………………….………..6 5. DIMENSION……….……..………………………………………………………..…..………………8 6. CONNECTION…………………………………………………………………………………………9... -
Page 3: Introduction

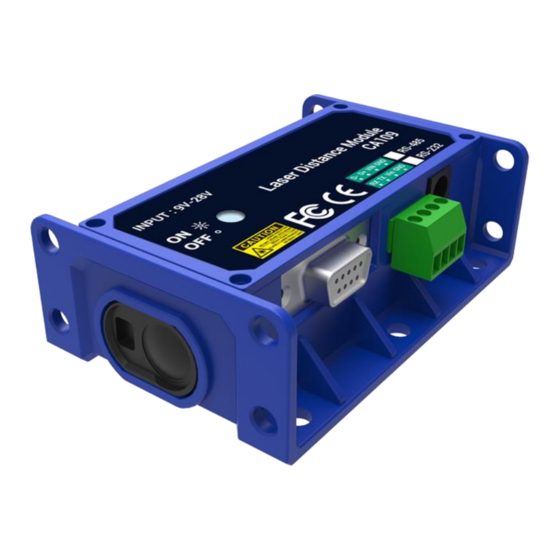

CA109 Manual Ver. 180212 1. INTRODUCTION CA109 is designed as a compact and reliable laser distance measuring sensor. The phase shifting reflectorless technology gives the good accuracy and response time in distance measuring. It is a compact and customizable LDM sensor. -
Page 4: Precaution
Mounting and electrical installation are to be performed only by qualified technicians. • Electrical connections between CA109 and other devices may only be created or fixed when there is no power to the system. Otherwise, the devices may be damaged •... -
Page 5: Protocol & Data Format
CA109 Manual Ver. 180212 Model CA109A CA109B CA109C Single measuring range* 0.05m~30m 0.05m~50m 0.05m~70m Continuous measuring range* 0.05m~30m 0.05m~50m 0.05m~70m Measuring Frequency** 0.5~1 second for each measure Typical Accuracy* ±2mm Accuracy With CA6**** ±1mm Power 9V~28V ±0.2V (DC Jack) Warm-up Time <5 seconds... - Page 6 CA109 Manual Ver. 180212 DB9 Female RS485 DB9 Female RS422 DB9 Female Actions: 1 ASCII Char 1. 0x6C (ASCII = l ): Laser Power On 2. 0x6D (ASCII = m ): Measure Trigger 3. 0x6E (ASCII = n ): Single Measure 4.
-
Page 7: Dimension
CA109 Manual Ver. 180212 Area Width = 20.000 Area = 100.00 Char 2 – Function Table: Function Char 2 Function Char 2 Single Measure Pythagoras 1 Area Length Pythagoras2 Area Width Pythagoras3 Area Error code Dimension Length Dimension Width Dimension Height Dimension IV. -
Page 8: Connection
CA109 Manual Ver. 180212 6. CONNECTION... - Page 9 CA109 Manual Ver. 180212...
