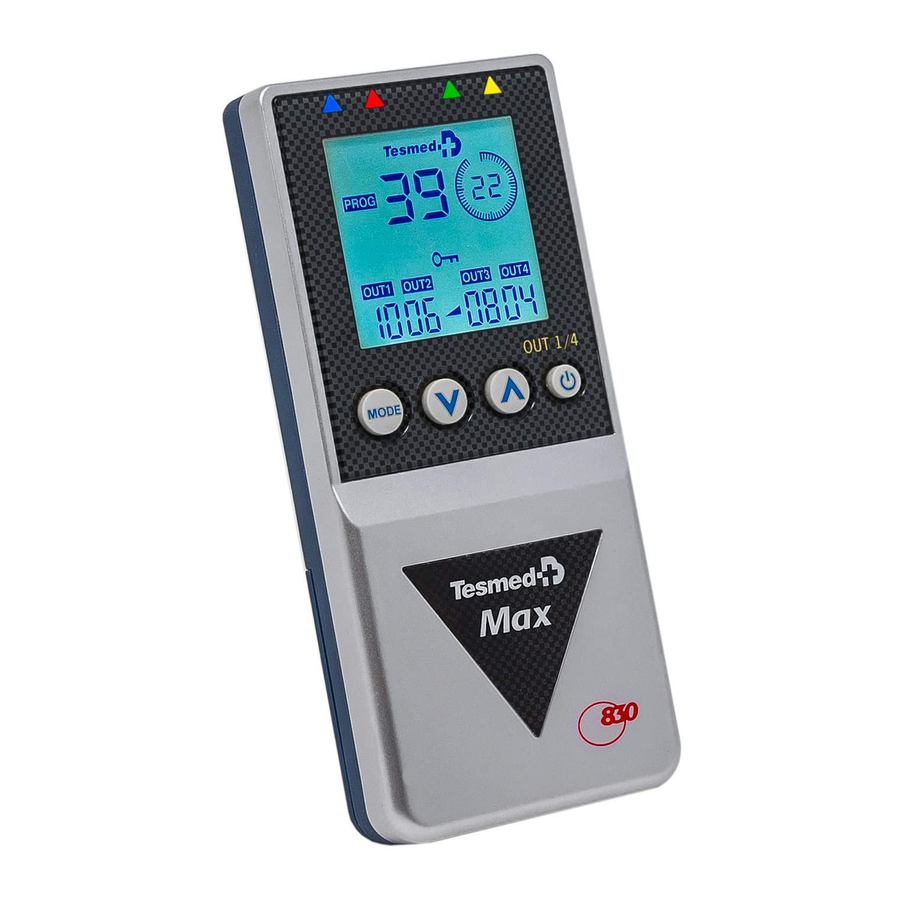

Tesmed MAX 830 Quick User Manual And Useful Tips

ATTENTION

Before use, read carefully the user manual, paying attention to the
warnings and contraindications listed in it.
­ Use only Tesmed electrodes as they are constructed with materials able to guarantee
maximum conductivity of the pulses of our electrostimulators.
­ The larger electrodes are positioned in the same way as the smaller ones.
­ If the cables are a bit hard to insert into the device, you can try to gradually force the
insertion.
­ In case of lack of stimulation or other malfunctions, check the condition of the
electrodes and their adhesion to the skin, the correct connection of all the parts and
possibly the battery charge.
­ You can customize the use of your stimulator:
1. using less channels;
2. using Tesmed electrodes of different sizes;
3. using your favorite program in the area you wish to treat, regardless of the indication
in the manual. For example, the abdomen toning treatment can well be performed on
another area, such as legs, pectorals, gluteus, etc...
­ You can use your favorite program on multiple zones. You can not set two different
programs at the same time.
­ Programs 21 to 99 are preset with different stimulation steps.
Each phase alternates moments of activity with moments of rest. It is not possible to increase
the intensity during the moment of rest. So, do not increase the intensity in the rest phases
during program execution, but only during active phases.
If you keep a low intensity, for example at level 1 or level 2, at the phase transition during
execution, the program may be reset. In this case, restart with the program and keep the
intensity a bit higher.
­ You may have the perception that on the one side the impulses are less intense. The stimulator
emits the same impulses on all channels, so probably you have not well identified the motor
points of the muscle, or on one side there is more fat tissue, or the electrodes are worn out. Try
moving the electrodes, making sure they are well adherent to the skin.
The level of intensity to achieve the desired muscle contraction can vary depending on multiple factors,
including the placement of the electrodes and the presence of adipose tissue
Therefore, the same current intensity can provide different sensations from person to person,
from day to day, from the left side to the right side.
If you need technical assistance write to info@tesmed.com, or call 0039 030 5050163
from Monday to Friday from 09.00 to 16.30, excluding holidays.
We solve 100% of requests quickly because our priority is customer satisfaction.
REMEMBER
.
4
Before use, read carefully the user manual, paying attention to the warnings and
contraindications listed in it.
QUICK USER GUIDE AND USEFUL TIPS
Battery already inserted, device ready to use. If the battery symbol flashes after switching on, charge.
2
.
Insert the electrodes in the cables and
place them on the treatment area
You may refer to the electrodes
placement photos in the manual
EQUIPMENT DESCRIPTION
The battery is already installed in the device.
If the flashing battery symbol appears on the display or the Tesmed does not
light up, charge the device. When the symbol stops flashing or disappears, the
battery is charged. If the battery is charged and the Tesmed is connected to
the battery charger, the Tesmed screen will not light up and no signal will
appear because the battery charger detects that there is no need for charging
and therefore does not activate.
1
.
Connect the 4
bipolar cables
LCD display and keys
1 Tesmed logo
2 Program number
3 Program symbol
4 Low battery symbol
5 Frequency symbol
6 Selected output channels ( n. 4)
7 Relative intensity value for each
4 output
8 Functions key (MODE)
9 Decrease key ( )
10 Increase key ( )
11 ON/OFF and select channels
double function key
12 Intensity symbol
13 Keyboard block and ON block
symbol
14 Timer symbol
15 Treatment time and remaining
time
16 Clock symbol
17 Output channels
18 Battery recharger socket
19 Battery door
20 Removable belt hook
1
