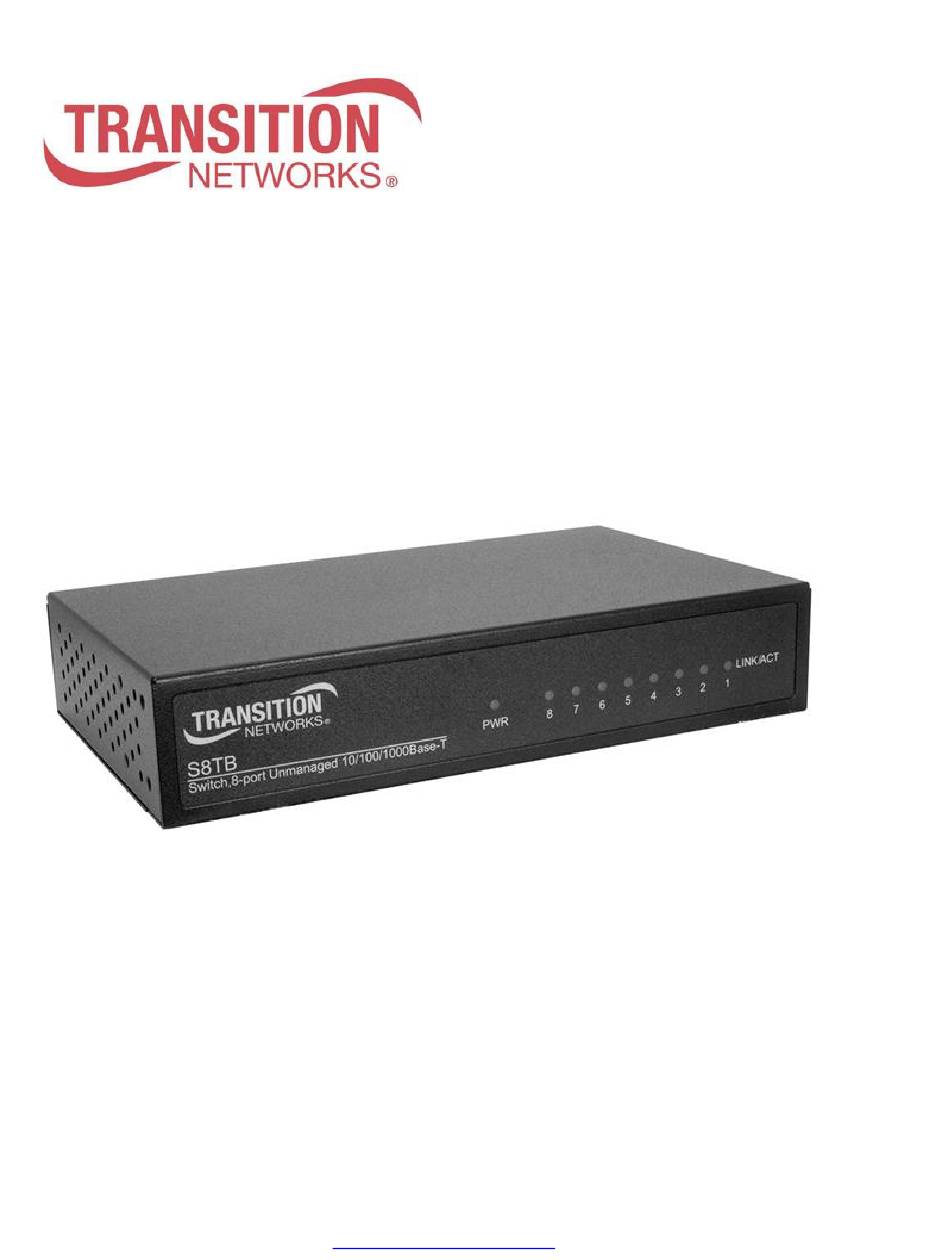

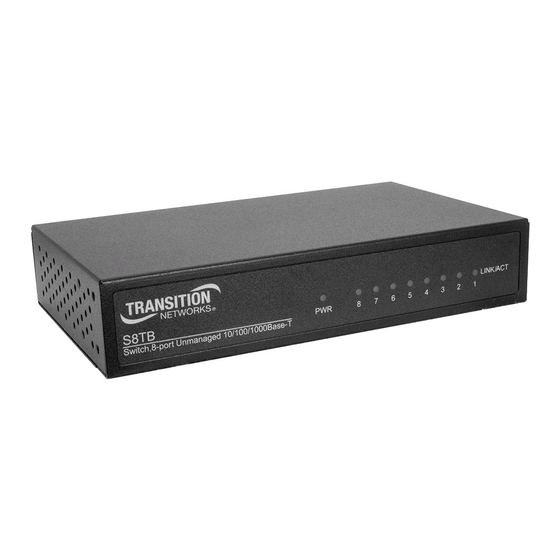

- Page 1 Transition Networks S8TB User Guide S8TB Unmanaged Gigabit Ethernet Switch (8) 10/100/1000Base-T Ports User Guide 33672 Rev. B 33672 Rev. B https://www.transition.com/ Page 1 of 11...
-
Page 2: Safety Warnings And Cautions
Anyone using this product in such an application without express written consent of an officer of Transition Networks does so at their own risk and agrees to fully indemnify Transition Networks for any damages that may result from such use or sale. -
Page 3: Table Of Contents
Transition Networks S8TB User Guide Contents Safety Warnings and Cautions ..........................2 Record of Revisions ..............................2 1. Introduction ................................4 Features ..................................4 Package Contents ..............................4 2. Hardware Description ............................5 LED Indicators .................................5 LED Indicator Descriptions ..........................5 Power Cord Included...............................5 Power On ................................5 3. -
Page 4: Introduction
Supports full and half-duplex for 10/100Mbps and full-duplex for 1000Mbps • Wire-speed packet filtering and forwarding rate • Supports IEEE 802.3az energy efficient Ethernet Package Contents Unpack the contents of the S8TB packaging and verify the checklist below. • One S8TB Switch • One Documentation Post card •... -
Page 5: Hardware Description
Transition Networks S8TB User Guide 2. Hardware Description LED Indicators The LED give real-time information of system operation status as shown and described below. Front Panel LED Indicator Descriptions Status Description Steady Green Power is On Steady Green Port connection on 1000Mbps... -
Page 6: Troubleshooting
Transition Networks S8TB User Guide 3. Troubleshooting This section is intended to help you solve the most common problems on the S8TB switch. Incorrect Connections Faulty or loose cables Look for loose or obviously faulty connections. If they appear to be OK, make sure the connections are snug. -
Page 7: Technical Specifications
Transition Networks S8TB User Guide 4. Technical Specifications The table below lists the S8TB switch specifications. IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet Standards IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE802.3x Duplex Flow Control IEEE802.3az EEE Protocol CSMA/CD Technology... -
Page 8: Regulatory Compliance Information
Transition Networks S8TB User Guide 5. Regulatory Compliance Information Regulatory Approvals Safety: LVD Emissions: FCC Class B, CE Mark, Compliance UL Listed, CCC EN55022 Class B Canadian EMI Notice This Class B digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations. -
Page 9: European Regulations
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. -
Page 10: Contact Us
Transition Networks S8TB User Guide Contact Us Technical Support: Technical support is available 24-hours a day US and Canada: 1-800-260-1312 International: 00-1-952-941-7600 Main Office tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com techsupport@transition.com customerservice@transition.com Address Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343, U.S.A. - Page 11 Minnetonka, MN 55344 tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com techsupport@transition.com customerservice@transition.com © Copyright 2015-2020 Transition Networks. All rights reserved. 8-Port Unmanaged Gigabit Ethernet Switch User Guide, PN 33672 Rev. B 33672 Rev. B https://www.transition.com/ Page 11 of 11...
