8000 Series pH/ORP Electrode Platform
Product Instructions
Introduction

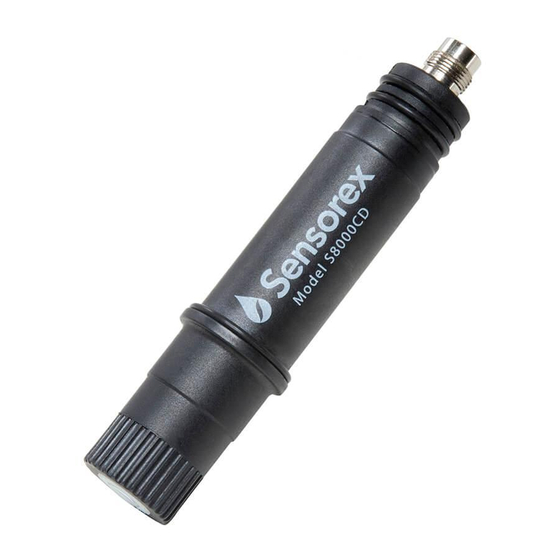

Congratulations on your purchase of your Sensorex S8000
series electrode platform. The platform is designed in a modu-
lar fashion with the flexibility to use only the parts needed, or
to add or modify installation and interface requirements with
little or minimal cost impact. All mounting adapters and cables
are designed to be reuseable. Replace only the electrode car-
tridge as needed.
Electrode Care and Use Tips
1. The S8000 pH and ORP electrodes are shipped with a cap
containing a solution of pH 4 buffer and potassium chloride.
The cap should remain on the electrode until it is used. If the
electrode is used infrequently the cap and its solution should
be saved and the electrode stored in it. Store pH and ORP
electrodes in pH 4 buffer if soaking solution is discarded.

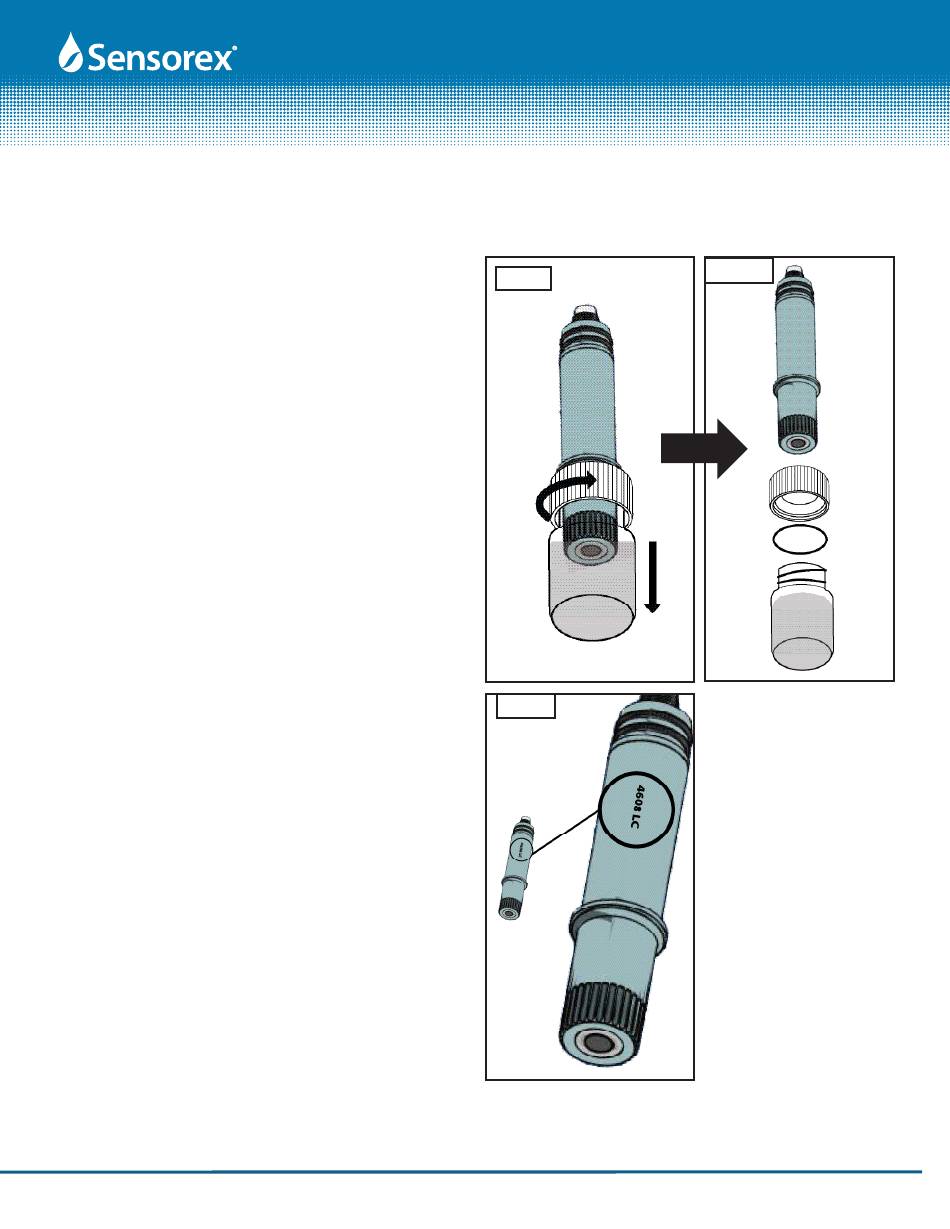

Before using the pH electrode remove the tape around the
top of the black cap then slide the black cap off of the
electrode. Next, remove small o-ring under black cap and keep
with black cap or discard (SEE FIG 1A).
2. Electrodes are a form of battery and have limited shelf lives.
Electrodes in inventory should be rotated so that the older
electrodes are used first. The date code is stamped on each
electrode by fiscal week and year (Example: 4608 = week 2 of
November 2008). See FIG 2.
3. After exposure to a sample, buffer or rinse solution, carryover
can be minimized by blotting—never by wiping—the elec-
trode with a clean non-abrasive paper or a clean cloth towel.
Do not use a brush on pH glass.
4. As a rinse solution, measure and use a portion of the next
sample or buffer. This action will minimize carryover
contamination.
5. When calibrating pH electrodes, use a buffer close in value to
that expected from the sample for one-point calibrations or as
the second buffer for two-point calibrations (See below). This
action will minimize span errors. ORP electrodes are typically
not calibrated. However, a solution to verify electrode perfor-
mance should be used periodically. 225mV solution, Zobell's
solution (Part no. B225), is a good choice for single point
verification.
Parts covered by this product data sheet include:
S8000CD, S8000CD-ORP, S8000-HF, S8000CD-LC, S8000CD-ORP-LC,
EA890, EA891, EA899, EA899TC, EM800, EM801, EM802, S853, S855,
FC800, FC801, FC804, FC805, FC806
Page 1 of 12
PRODUCT INSTRUCTION SHEET
FIG. 1
FIG. 2
FIG. 1A
Form: InstrS8000-Rev B [Rev: 2015-11-09]
©2011 Sensorex Corporation

Advertisement

loading
Need help?

Need help?

Do you have a question about the 8000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sensorex 8000 Series

  • Page 1 Introduction FIG. 1A FIG. 1 Congratulations on your purchase of your Sensorex S8000 series electrode platform. The platform is designed in a modu- lar fashion with the flexibility to use only the parts needed, or to add or modify installation and interface requirements with little or minimal cost impact.
  • Page 2: Mechanical Installation

    Hand-tighten knurled nut onto threads of sensor housing until it stops turning. Before and after images are shown in FIG 4 and FIG 4A. Page 2 of 12 Form: InstrS8000-Rev B [Rev: 2015-11-09] ©2011 Sensorex Corporation...
  • Page 3 Before and after images are shown in FIG 6 and FIG 6A. Housing (EA899TC) FIG. 6 FIG. 6A S855 Cable assembly 8-pin Connector Grease these o-rings Knurled Signal Conditioner Page 3 of 12 Form: InstrS8000-Rev B [Rev: 2015-11-09] ©2011 Sensorex Corporation...
  • Page 4 Before and after images are shown in FIG 8 and FIG 8A. Electrode Cartridge FIG. 8 FIG. 8A S853 cap cable Knurled 8-pin Connector Adapter threads Page 4 of 12 Form: InstrS8000-Rev B [Rev: 2015-11-09] ©2011 Sensorex Corporation...
  • Page 5 FIG. 9 FIG. 9A Cap Cable model S653 or S653W Customers using Sensorex 600 Series electrodes and cap cable assemblies may easily upgrade to the new and improved S8000 EA890 Cable Series pH and ORP electrodes. Use your existing cap cable.
  • Page 6 Before and after images are shown in FIG 12 and FIG 12A. FIG. 12 FIG. 12A S853 cap cable Knurled Grease these o-rings Page 6 of 12 Form: InstrS8000-Rev B [Rev: 2015-11-09] ©2011 Sensorex Corporation...
  • Page 7 FIG. 14 FIG.14A In-line Installation Notes: Make sure to install tee at least 45 degerees above horizontal position. Do not install horizontally. See FIG 15. S855 Grease these o-rings Page 7 of 12 Form: InstrS8000-Rev B [Rev: 2015-11-09] ©2011 Sensorex Corporation...
  • Page 8: Product Specifications

    Mounting Hardware Electronic Module Specifications: FC800, FC801, EM800, EM801, EM802 Temp Range: 0-80C in Tee, 0-70C with module (derated based on pressure) Pressure Range: 0-100psig (derated based on temp) Page 8 of 12 Form: InstrS8000-Rev B [Rev: 2015-11-09] ©2011 Sensorex Corporation...
  • Page 9 It is important that the sample being measured by the lab meter be at the process temperature or erroneous results may occur. Page 9 of 12 Form: InstrS8000-Rev B [Rev: 2015-11-09] ©2011 Sensorex Corporation...
  • Page 10: Intermittent Operation

    600 grade wet silicon carbide paper (SEE FIG 19), jeweler’s rouge or very fine steel wool, but try to clean chemically before abrading with 600 paper. Page 10 of 12 Form: InstrS8000-Rev B [Rev: 2015-11-09] ©2011 Sensorex Corporation...
  • Page 11: Electronic Modules

    S853 CABLE ASSEMBLY the pH transmitter or controller. FIG. 22 Cap Cable Assemblies See page 8 "Cale Connections" for wire designations. Page 11 of 12 Form: InstrS8000-Rev B [Rev: 2015-11-09] ©2011 Sensorex Corporation...
  • Page 12 Ground solution for tank Large offset in buffers a) Ground loop**** 2) Use C110 simulator + CX3 adapter (from Sensorex) to or line to known earth ground or buy EM899TC simulate pH4, 7 &10 inputs or +700 & -700mV for ORP.
