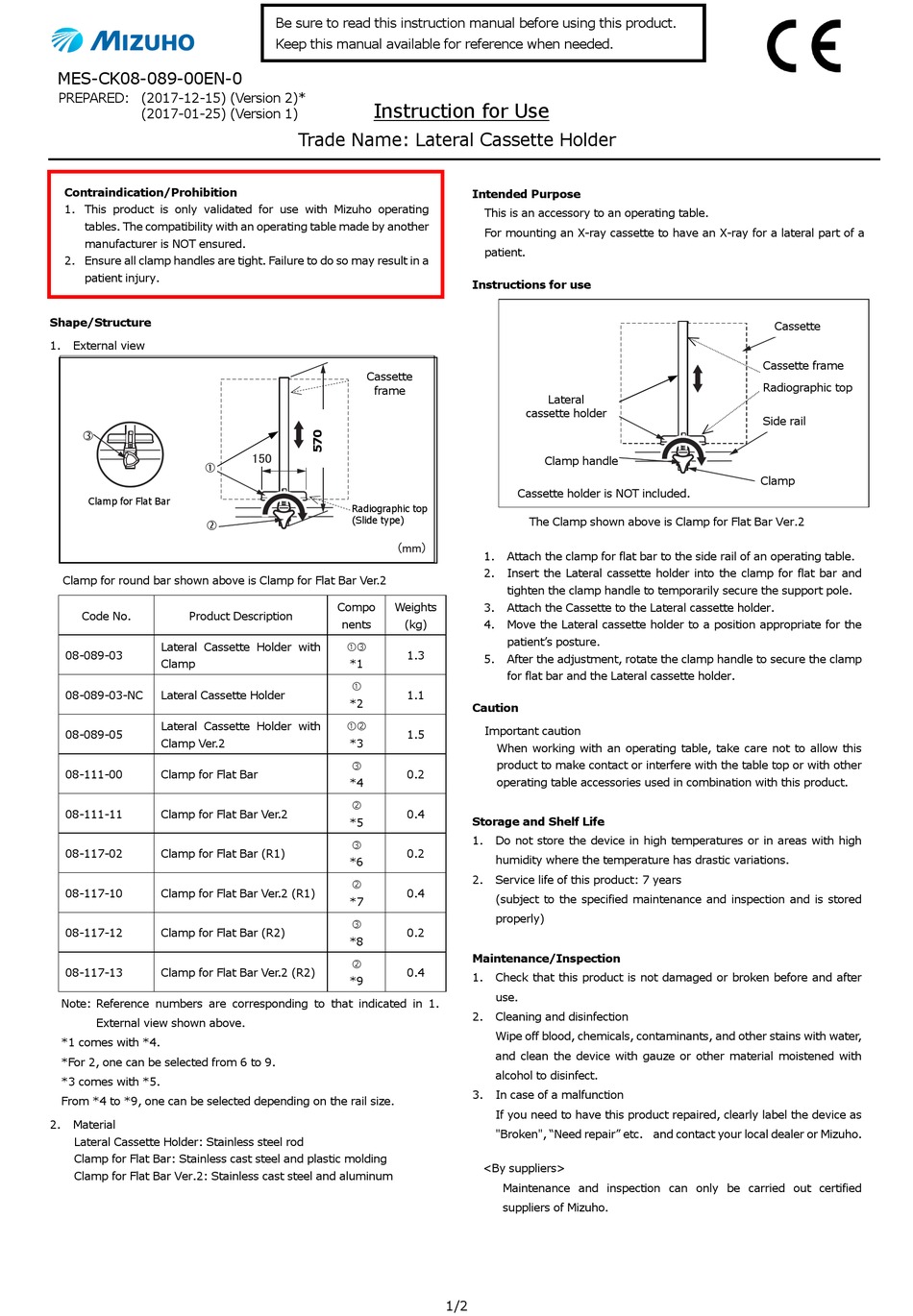

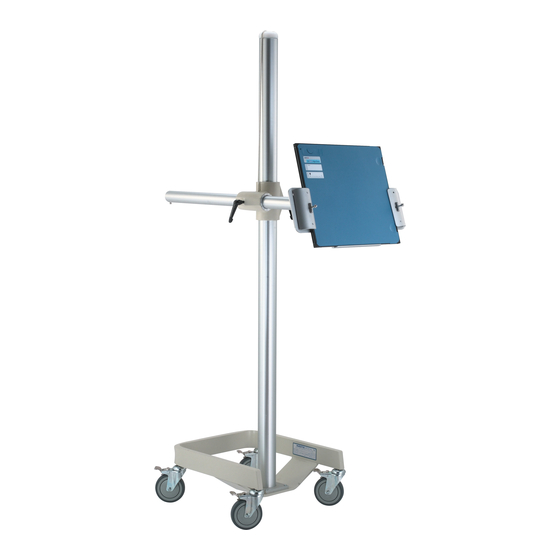

Mizuho Lateral Cassette Holder Instructions For Use

MES-CK08-089-00EN-0
PREPARED: (2017-12-15) (Version 2)*
(2017-01-25) (Version 1)
Contraindication/Prohibition
1. This product is only validated for use with Mizuho operating
tables. The compatibility with an operating table made by another
manufacturer is NOT ensured.
2. Ensure all clamp handles are tight. Failure to do so may result in a
patient injury.
Shape/Structure
1. External view


Clamp for Flat Bar

Clamp for round bar shown above is Clamp for Flat Bar Ver.2
Code No. Product Description
Lateral Cassette Holder with
08-089-03
Clamp
08-089-03-NC Lateral Cassette Holder
Lateral Cassette Holder with
08-089-05
Clamp Ver.2
08-111-00 Clamp for Flat Bar
08-111-11 Clamp for Flat Bar Ver.2
08-117-02 Clamp for Flat Bar (R1)
08-117-10 Clamp for Flat Bar Ver.2 (R1)
08-117-12 Clamp for Flat Bar (R2)
08-117-13 Clamp for Flat Bar Ver.2 (R2)
Note: Reference numbers are corresponding to that indicated in 1.
External view shown above.
*1 comes with *4.
*For 2, one can be selected from 6 to 9.
*3 comes with *5.
From *4 to *9, one can be selected depending on the rail size.
2. Material
Lateral Cassette Holder: Stainless steel rod
Clamp for Flat Bar: Stainless cast steel and plastic molding
Clamp for Flat Bar Ver.2: Stainless cast steel and aluminum
Be sure to read this instruction manual before using this product.
Keep this manual available for reference when needed.
Instruction for Use
Trade Name: Lateral Cassette Holder
Cassette
frame
Radiographic top
(Slide type)
Compo Weights
nents (kg)

1.3
*1

1.1
*2

1.5
*3

0.2
*4

0.4
*5

0.2
*6

0.4
*7

0.2
*8

0.4
*9
1/2
Intended Purpose
This is an accessory to an operating table.
For mounting an X-ray cassette to have an X-ray for a lateral part of a
patient.
Instructions for use
Lateral
cassette holder
Clamp handle
Cassette holder is NOT included.
The Clamp shown above is Clamp for Flat Bar Ver.2
1. Attach the clamp for flat bar to the side rail of an operating table.
2. Insert the Lateral cassette holder into the clamp for flat bar and
tighten the clamp handle to temporarily secure the support pole.
3. Attach the Cassette to the Lateral cassette holder.
4. Move the Lateral cassette holder to a position appropriate for the
patient's posture.
5. After the adjustment, rotate the clamp handle to secure the clamp
for flat bar and the Lateral cassette holder.
Caution
Important caution
When working with an operating table, take care not to allow this
product to make contact or interfere with the table top or with other
operating table accessories used in combination with this product.
Storage and Shelf Life
1. Do not store the device in high temperatures or in areas with high
humidity where the temperature has drastic variations.
2. Service life of this product: 7 years
(subject to the specified maintenance and inspection and is stored
properly)
Maintenance/Inspection
1. Check that this product is not damaged or broken before and after
use.
2. Cleaning and disinfection
Wipe off blood, chemicals, contaminants, and other stains with water,
and clean the device with gauze or other material moistened with
alcohol to disinfect.
3. In case of a malfunction
If you need to have this product repaired, clearly label the device as
"Broken", "Need repair" etc. and contact your local dealer or Mizuho.
<By suppliers>
Maintenance and inspection can only be carried out certified
suppliers of Mizuho.
Cassette
Cassette frame
カセッテ枠
Radiographic top
カセッテ受け枠
Side rail
Clamp
