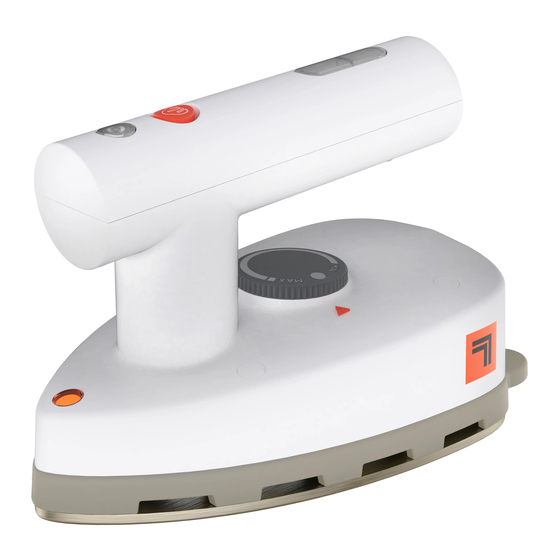

Sharper Image SI-755 Owner's Manual

Dual voltage travel iron
Hide thumbs

Advertisement

Quick Links

DUAL VOLTAGE TRAVEL IRON
OWNER'S GUIDE
MODEL
SI-755

Advertisement

loading
Need help?

Need help?

Do you have a question about the SI-755 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sharper Image SI-755

Summary of Contents for Sharper Image SI-755

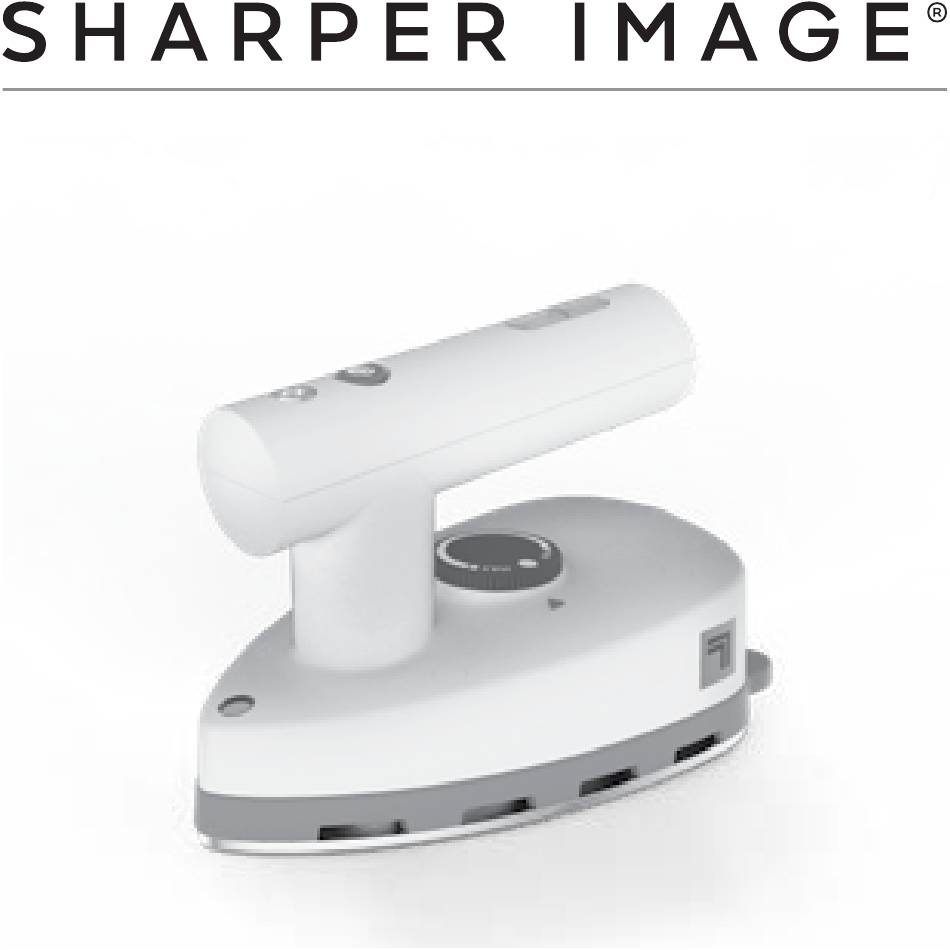

  • Page 1 DUAL VOLTAGE TRAVEL IRON OWNER’S GUIDE MODEL SI-755...

  • Page 3: Table Of Contents

    CONTENTS Important Safety Instructions .............................4 Product Information ................................7 Setting Voltage ..................................10 Filling Water Tank ................................12 How to Use ....................................13 Storage & Care ..................................15 Warranty.....................................17 English...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING This owner’s guide and any additional inserts are considered part of the product. They contain important information about safety, use and disposal. Before using the product, please familiarize yourself with all operating and safety instructions.
  • Page 5 before each use while carefully holding the product away from your body. If no steam appears, wait a few more minutes and test again. Do not look into the appliance, use your hands or other objects to check for steam. - Do not attempt to use steam function without filling Water Tank.
  • Page 6 - This appliance has a polarized plug (one blade is wider than the other.) To reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.

  • Page 7: Product Information

    PRODUCT INFORMATION The following features are included with your Dual Voltage Travel Iron. Carefully inspect the packing material for all parts listed below. To obtain possible missing parts, contact (833.800.8669) or (help@sihomecomfort.com). UNIT FEATURES & ACCESORIES Ironing Plate Main Body Heating Indicator Light Water Tank Cap Water Tank Window...
  • Page 8 The Ironing Plate is the heated, non-stick surface that is used to press fabrics, remove wrinkles and create creases. The Main Body contains the unit’s internal heating components. The Heating Indicator Light illuminates when the Temperature Control Dial is set to one of the three heat settings. The Water Tank Cap covers the Water Tank fill hole.
  • Page 9 The Water Tank, located inside the Handle, is designed to hold a maximum of 1.18 oz (34.90 ml.) water. The Voltage Selector is the recessed switch which is used to set the unit to either 120V or 220V electrical voltage standards. By default the Voltage Selector is set to 120V.

  • Page 10: Setting Voltage

    SETTING VOLTAGE The Dual Voltage Travel Iron features dual-voltage functionality, which allows it to function correctly in regions with either 120V or 220V electrical voltage standards. Voltage is set using the Voltage Selector. For use in Canada or North America, the voltage selector switch should be placed in the 120 volt position.
  • Page 11 3. Carefully insert tip of pen into white NOTCH notch. Slide Voltage Selector to the right, towards 220V label (Figure 1-B). 120V 220V IMPORTANT: Be sure that Voltage Selector 120V 220V is moved as far to the right as possible for voltage setting to take effect correctly 120V 220V...

  • Page 12: Filling Water Tank

    FILLING WATER TANK FOR STEAM IRONING 1. Unplug unit. 2. Place unit (Ironing Plate down) on a flat, heat-resistant surface. 3. Open Water Tank Cap. Fill the Water Tank with up to 1.18 oz (34.90 ml) of water. Water Tank is likely to leak if Water Tank is overfilled. 4.

  • Page 13: How To Use

    HOW TO USE IMPORTANT: This unit has no on / off switch. The unit must be plugged in to turn on and unplugged to turn off. DRY IRONING IMPORTANT: Make sure Steam Button is locked in lowered position before dry ironing.
  • Page 14 STEAM IRONING 1. Plug power cord into a standard electrical outlet. 2. Turn Temperature Control Dial clockwise as far as possible to set unit to high temperature (MAX •••). Heating Indicator Light will illuminate. 3. When Heating Indicator Light turns off, press Steam Button. Button will lock into raised position, and unit will begin emitting steam from steam vents on Ironing Plate.

  • Page 15: Storage & Care

    STORAGE & CARE PROPER STORAGE Preparing your Dual Voltage Travel Iron for storage is quick and simple. When you have finished your steaming tasks, follow the steps listed below. IMPORTANT: Make sure Steam Button is locked in lowered position before storing. This will prevent any water from accidentally dripping.
  • Page 16 The best way to minimize mineral build-up is to use distilled or de-mineralized water when using your Dual Voltage Travel Iron Steamer. In addition, it is recommended that the Reservoir be cleaned at least once a month in order to remove any deposits that form.

  • Page 17: Warranty

    SATISFACTION G U A R A N T E E Vornado Air, LLC warrants to the original consumer or purchaser this Sharper Image® Steam Product (“Product”) is free from defects in material or workmanship for a period of one (1) year from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.
  • Page 18 Sharper Image® name and logo are registered trademarks. Manufactured, marketed and distributed under license by Vornado Air LLC, Andover, Kansas 67002. Manufactured in China. U.S. Patents Pending. Sharper Image® Distributed under license by Vornado Air LLC, Andover, Kansas 67002. 18 English...
  • Page 19 T755-001 R-, V00...
