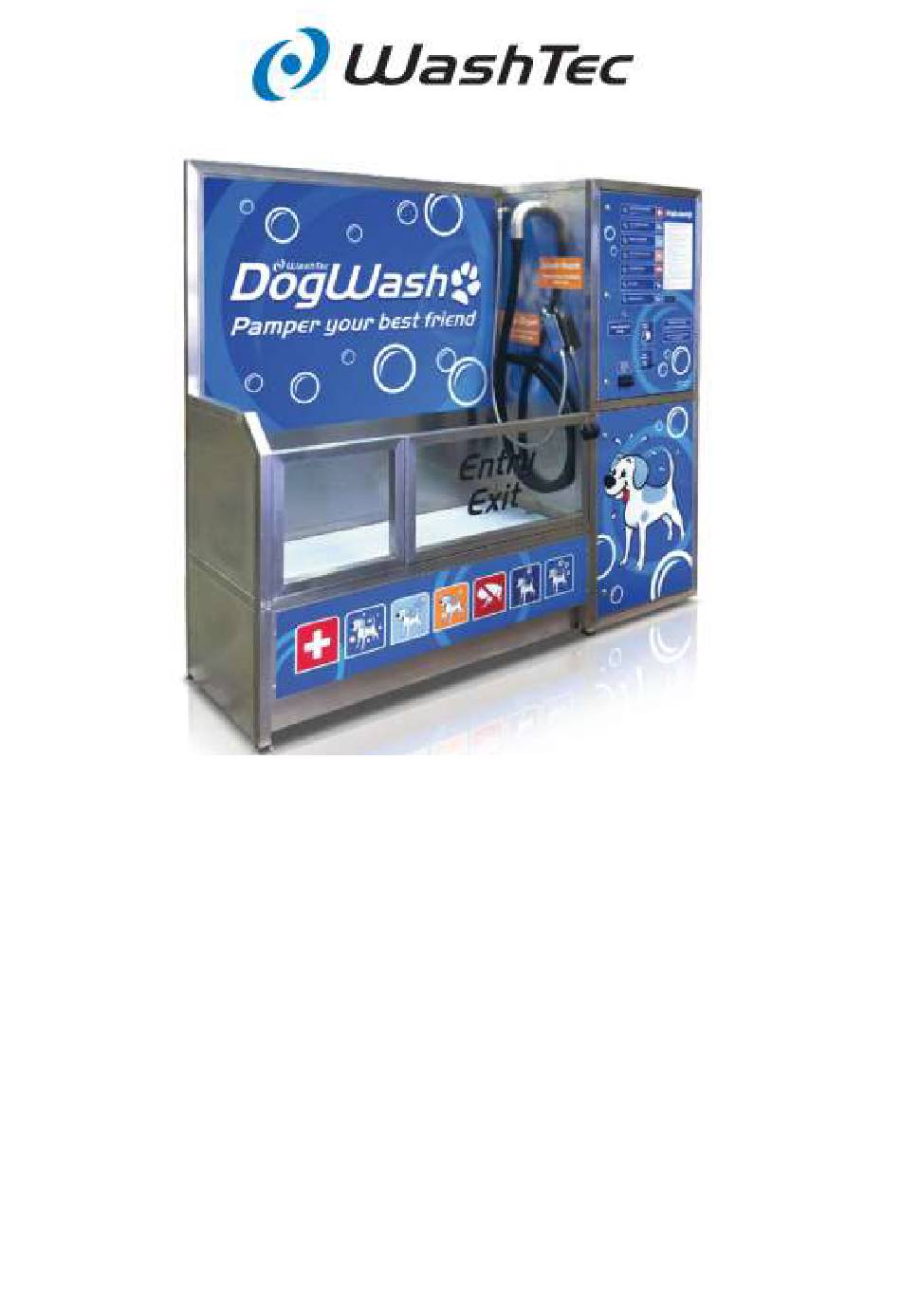

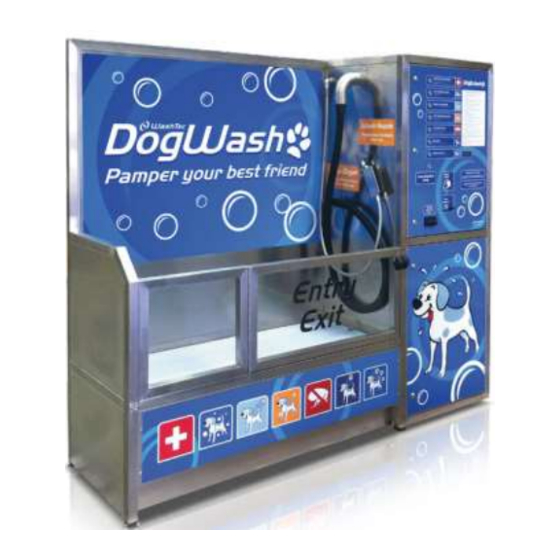

  • Page 1 92186243 DOGWASH SYSTEM WITH 9.5kW WATER HEATER OPERATING AND INSTRUCTION MANUAL...

  • Page 4: Functional Description

    Functional Description The Electrical system in the Dog Wash uses proven components. All the component parts can be replaced. The main components are: 1. PLC - Controller 2. Electrical Enclosure - Circuit Breakers, Relays and 24VDC Power Supply 3. Solenoid Valves 4.
  • Page 5 ‘Disinfectant Cycle Running’ will be displayed. The disinfectant cycle will run continuously for 5 seconds, spraying Disinfectant chemical into the wash bay. The system will automatically reset once finished. This can be de-activated if not required, please contact Washtec Service for more information.
  • Page 6 Hot Water System (HWS) To ensure that hot water is available at all times an electrical Instantaneous type system has been fitted. The unit feeds hot water to a tempering valve which has been set for a maximum operation temperature of 40ºC. This is tested and set during build and testing however depending on each individual installation this may need further adjustment once the unit is installed onsite.
  • Page 7 Coin / Token Operation The coins are caught in a steel pot located underneath the electronic coin mechanism. The coin/note acceptor assembly has a complete locking system, isolating it from the electrical backplane cabinet and the chemical cabinet. Coins are recognised by the system as a ‘Pulse Per Dollar’...
  • Page 8 Chemical Dosing Pumps There are four diaphragm chemical dosing pumps:  Shampoo  Conditioner  Flea Rinse  Disinfectant They are located underneath the main control cabinet and will require to have relevant chemical containers attached to the inlet side of the pumps. The dosing quantity can be adjusted via the % control dial on the front of the pumps.

  • Page 9: Installation

    Installation Installation should be carried out by qualified personnel. Installation should meet all the necessary electrical and plumbing standards relevant to the location in which the unit is installed. Mains water is required before electrical connection can be switched on TECHNICAL DATA ELECTRICAL SUPPLY VOLTAGE...
  • Page 10 Prime Pumps In order to prime the pumps place both the inlet tube (foot filter with SS weight) and the prime tube into the corresponding solution. The pump must be operating in order to prime, to do this insert coins and press the relevant button in accordance with the pump e.g.
  • Page 11 Operators Daily Check  Check that the chemicals have a level to maintain the use of the unit on the  Ensure the ends of the chemical tubes are fully submerged well in the chemical container to prevent air bubbles in the dosing lines. ...
  • Page 12 Regular Service/Maintenance Check  Check the operation of the chemical pump, remember the pump will only turn on when flow is present.  Regularly disinfect wash and rinse down  Check for build-up of hair in wash bay (figure 2). ...
  • Page 13 6 Month Service  Blow Dry Filter Service. To clean out the dryer, undo the cap at the bottom of the dryer (figure 6). Remove the vent at the bottom and clean it under a tap (figure 7). Once clean leave filter to dry before re-installing. (Figure 6) (Figure 7) ...

  • Page 14: Troubleshooting

    Troubleshooting T1.1 Machine fails to operate after coin/note insertion 1. Check that the electrical supply to the machine is ON. Check Circuit Breakers are on 2. Check the coin/note travels freely through the coin/note mechanism. 3. Check the operation of the coin/note mechanism. There should only be a green light on the coin accepter and the note accepter lights should illuminate green on the front note entry area.
  • Page 15 T1.4 Machine not dispensing chemicals 1. Check the chemical storage levels. Check suction tubes are fully submerged in chemical storage. 2. Check that the appropriate dosing pump is operating correctly. Start system and select corresponding pushbutton. Flow mush be present for dosing pumps to operate.
  • Page 16 T1.6 Machine dispensing Too Hot Water 1. Ensure water to the Dogwash does not exceed 20ºC 2. Check the Tempering Valve and adjust as per T1.5 - 4...
  • Page 17 DOSING PUMP 92186245 92150916 92150916 CUSTOMER: SIZE BURKERT CONTROMATIC AUSTRALIA PTY LTD WASHTEC THIS DRAWING IS THE PROJECT: SYDNEY: SUBJECT OF COPYRIGHT 15 COLUMBIA WAY, NORWEST BUSINESS PARK, BAULKHAM HILLS, NSW, 2153 DOGWASH SYSTEM MK3.1 - 9.1kW SYSTEM AND MUST NOT BE COPIED...
  • Page 18 CREDIT PULSE TERMINALS 1-10 BOTTTOM TO BE 24VDC LINKED TERMINALS 11-27 BOTTOM TO BE 0V LINKED CUSTOMER: SIZE BURKERT CONTROMATIC AUSTRALIA PTY LTD WASHTEC THIS DRAWING IS THE PROJECT: SYDNEY: SUBJECT OF COPYRIGHT DOGWASH SYSTEM MK3.1 - 9.1kW SYSTEM 15 COLUMBIA WAY, NORWEST BUSINESS PARK, BAULKHAM HILLS, NSW, 2153...
  • Page 19 VIEW FROM BEHIND CONTINUES ON SHEET 04 CUSTOMER: SIZE BURKERT CONTROMATIC AUSTRALIA PTY LTD WASHTEC THIS DRAWING IS THE PROJECT: SYDNEY: SUBJECT OF COPYRIGHT 15 COLUMBIA WAY, NORWEST BUSINESS PARK, BAULKHAM HILLS, NSW, 2153 DOGWASH SYSTEM MK3.1 - 9.1kW SYSTEM...
  • Page 20 92150515 (GRN) CONTINUES ON SHEET 05 CUSTOMER: SIZE BURKERT CONTROMATIC AUSTRALIA PTY LTD WASHTEC THIS DRAWING IS THE PROJECT: SYDNEY: SUBJECT OF COPYRIGHT 15 COLUMBIA WAY, NORWEST BUSINESS PARK, BAULKHAM HILLS, NSW, 2153 DOGWASH SYSTEM MK3.1 - 9.1kW SYSTEM AND MUST NOT BE COPIED...
  • Page 21 92163529 BEEPER 24VDC 92150531 CUSTOMER: SIZE BURKERT CONTROMATIC AUSTRALIA PTY LTD WASHTEC THIS DRAWING IS THE PROJECT: SYDNEY: SUBJECT OF COPYRIGHT 15 COLUMBIA WAY, NORWEST BUSINESS PARK, BAULKHAM HILLS, NSW, 2153 DOGWASH SYSTEM MK3.1 - 9.1kW SYSTEM AND MUST NOT BE COPIED...
  • Page 22 BURKERT 8400 TEMPERATURE SWITCH M12 PLUG 436501 CUSTOMER: SIZE WASHTEC BURKERT CONTROMATIC AUSTRALIA PTY LTD THIS DRAWING IS THE PROJECT: SYDNEY: SUBJECT OF COPYRIGHT 15 COLUMBIA WAY, NORWEST BUSINESS PARK, BAULKHAM HILLS, NSW, 2153 DOGWASH SYSTEM MK3.1 - 9.1kW SYSTEM...
  • Page 23 CK-DOGWASH MK3.1 - I/O LIST I/O TYPE/NUMBER PLC ADDRESS DESCRIPTION AI 00 AI 01 AI 02 AI 03 DI 00 HSI0 Credit Pulse DI 01 HSI1 Disinfectant Button DI 02 Shampoo Button DI 03 Conditioner Button DI 04 Clean Rinse Button DI 05 Flea Rinse Button DI 06...
  • Page 24 Dogwash Jazz Configuration Code Each Dogwash PLC will have an individual code corresponding with the program settings. This code will be labelled on the back of the Jazz and recorded down in the Configuration Details spreadsheet and checksheet. The Code is an 11 stage number system. Each stage is for each configuration setting and is in the following order: 1.
  • Page 25 Enter Key Down Key Enter Key Down Key Enter Key Down Key Enter Key CUSTOMER: BURKERT CONTROMATIC AUSTRALIA PTY LTD WASHTEC AUSTRALIA THIS DRAWING IS THE SYDNEY: SUBJECT OF COPYRIGHT TITLE: 15 COLUMBIA WAY, NORWEST BUSINESS PARK, BAULKHAM HILLS, NSW, 2153...

  • Page 26: Data Sheet

    Data Sheet DHCE 6/50 Instantaneous Single Phase Electric Water Heater Delivers hot water not exceeding 50°Celsius in accordance with AS3498* The advantages › Electronically controlled to save energy and water › Temperature selection up to a maximum of 50°Celsius in accordance with AS3498* ›...
