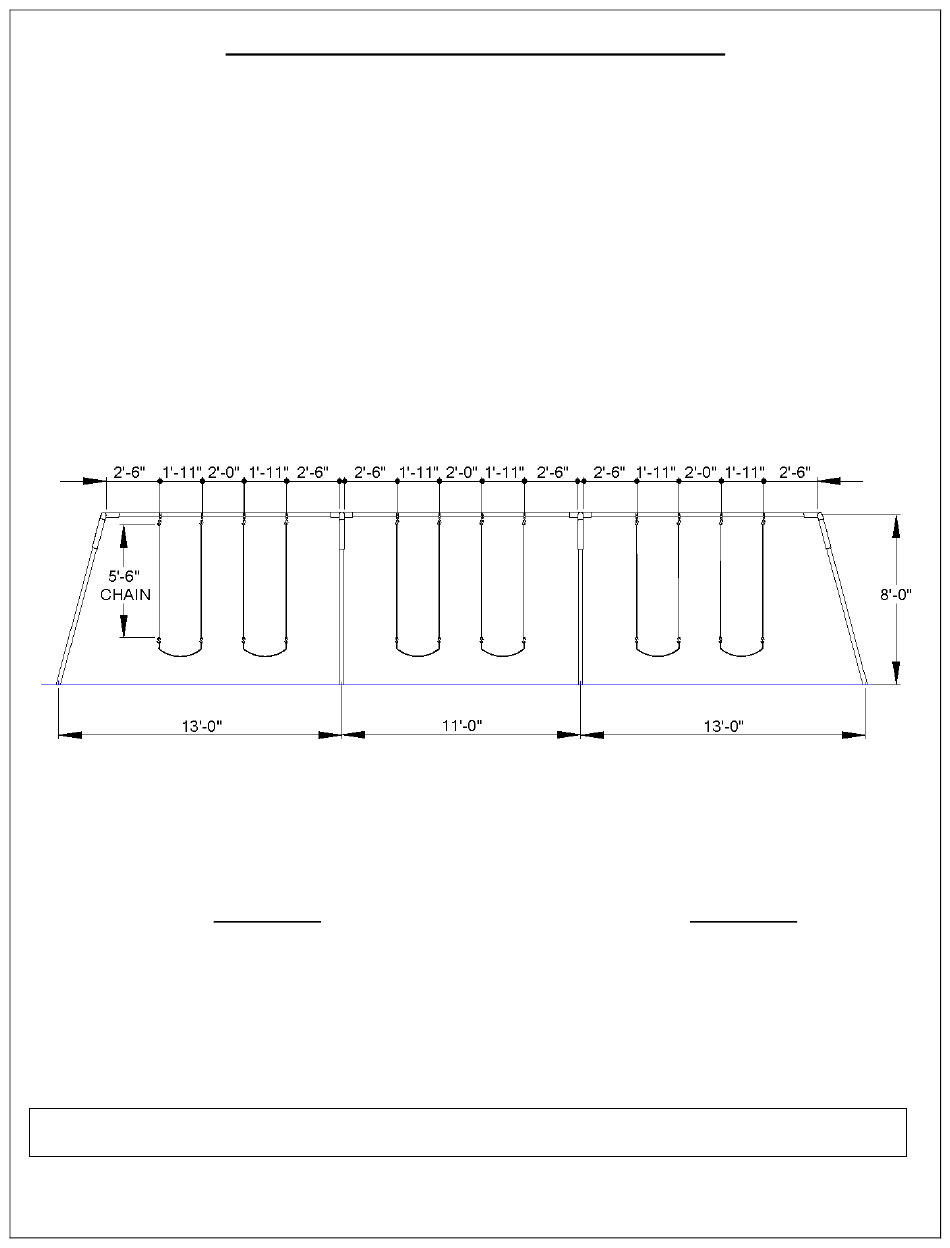

581-638 8' Modern Bipod 6 Seat Swing
PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING ASSEMBLY.
must be installed in accordance with these instructions.
against Bill of Lading and Parts list.
reported to your distributor within 10 days of receipt of your order.
properly installed and maintained, equipment will give many years of Safe,
Trouble-Free use.
must be tightened and broken parts must be replaced as they can possibly
create dangerous situations leading to unnecessary accidents.
Surfacing should be used under all playground equipment.
publications, available at no charge, from the Consumer Product Safety
Commission, include "A Handbook for Public Playground Safety".
receive your free copy by calling 1-301-504-7908.
PACKING LIST
1
CTN
2
WF
1
583-523
2
WF
1
583-522
11
PIPE
1
343-210A
1 CTN
4 WF
IMPORTANT
Periodically check for loose or broken parts.
Hardware Bag
Center Fitting
Swing End
Pipe 2 3/8" OD x 11'
11 PIPE
Any missing or broken parts must be
12
585-520
2 3/8" Swing Hanger
6
585-955
Cut Proof Belt Seat
12
317-140
4/0 Chain x 5'6" long
24
585-901
S Hook
14
196-802
½" x ½" Socket Set Screw
1
416-400
¼" Socket Key
1
805-532
Warning Label
1
805-534
SportsPlay Label
1
Maintenance Checklist
16 TOTAL PCS
All equipment
Check your shipment
When
Loose bolts
Resilient
Appropriate
You can
HARDWARE BAG
Weight 400# Class 70
Advertisement
Table of Contents
Related Manuals for Terra Bound Solutions 581-638
Summary of Contents for Terra Bound Solutions 581-638
- Page 1 581-638 8’ Modern Bipod 6 Seat Swing IMPORTANT PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING ASSEMBLY. All equipment must be installed in accordance with these instructions. Check your shipment against Bill of Lading and Parts list. Any missing or broken parts must be reported to your distributor within 10 days of receipt of your order.
- Page 2 581-638 8’ Modern Bipod 6 Seat Swing GENERAL FOOTING RECOMMENDATIONS Diameter and depth of footings illustrated are satisfactory in most applications for pipe sizes up to 2 3/8” diameter. Varying soil & climatic conditions may require deeper and heavier footings in some areas.
- Page 3 581-638 8’ Modern Bipod 6 Seat Swing GENERAL USE/FALL ZONE & FOOTING RECOMMENDATIONS: Single Axis Swings: The Use/Fall Zone should extend to the front & rear, a minimum distance of twice the height of the Top Rail above the resilient surfacing material.
- Page 4 581-638 8’ Modern Bipod 6 Seat Swing STEP #2: Remove swing hanger pendulums from the swing hanger assemblies. Using S- hooks, attach seats to chain and chain to swing hanger pendulums. Close the S-hooks to within .034” (1/32”) using S-hook pliers.
