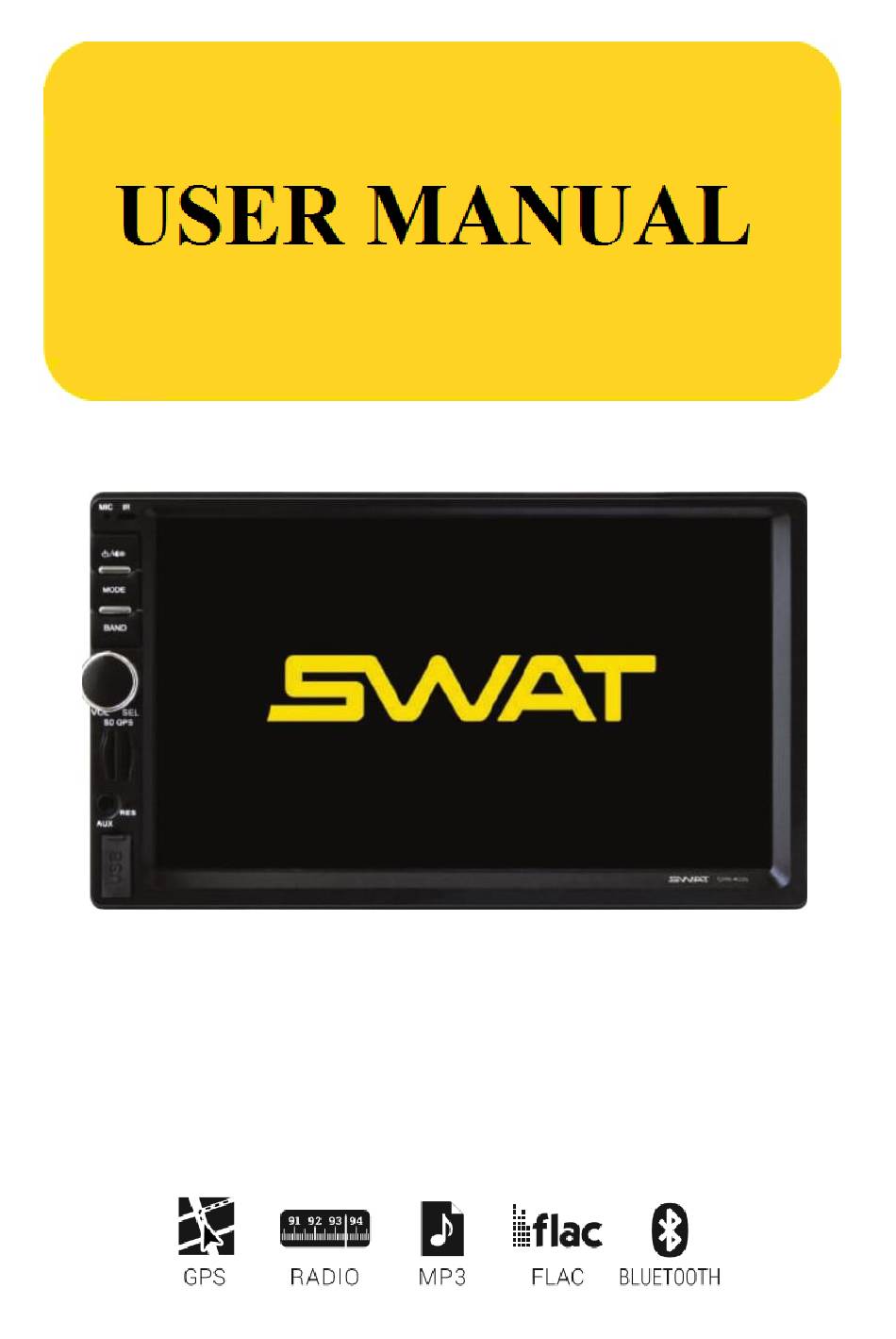

- Page 1 Multimedia system SNR-D220...
-
Page 2: Safety Precautions
Safety precautions Please read this guide to secure the safety use of this product. This instruction manual may change without a notification, because of technical improvements. Pay special attention to the following safety precautions: The driver is prohibited from using the video player while driving. A fuse in the device is applied to ensure safety. - Page 3 In the event of a breakage of the LCD display, avoid any physical contact with the broken glass or the fluid leaking from the device. In case of such contact, bathe the area of the skin on which the fluid has been fallen with a large amount of water. Then immediately seek medical care. –...
- Page 4 Introduction Thank you for choosing our product. For correct and complete use, please read this manual. To improve the consumer characteristics of this product, we reserve the right to make changes in its design without prior notification All illustrations of this manual are of a reference nature and may differ from the original product. Characteristics •...
-
Page 5: Table Of Contents
Contents Safety precautions………………………………………...……………………2 External control panel…………………………………………………………...6 Remote control…………………………………………………………………..7 Device control…………………………………………………………………..6 Interface…………………………………………………………………………8 Radio…………………………………………………………………………….9 USB, SD………………………………………………………………………..11 Bluetooth…………………………………...…………………………………..12 AUX……………………………………………………………………………13 Settings………………………………………………………………………...14 Radio…………………………………………………………………………...14 Time……………………………………………………………………………14 Language……………………………………………………………………..14 Audio…………………………………………………………………………...15 Control buttons on steering wheel………………………………………………15 Troubleshooting…………………………..……………………………………16... -
Page 6: External Control Panel
Introduction Control 1. Microphone; 2. IR remote control sensor; 3. Short press: on/off, Long press: mute; 4. Short press: switching modes/MODE, Long press: turn on navigation 5. Switching a modulation of radio waves (switching the ranges) 6. Adjusting the volume, when pressed, switches to the audio setting mode; 7. -
Page 7: Remote Control
Remote control Remote control Play/pause; Turn ON/OFF Switching modes Equalizer Volume control Mute Rewind/Forward Number buttons Search and save Repeat radio stations In radio mode, switching of radio waves modulation In video mode, channel switching Warning! Before using the remote control, remove the insulating film from the battery compartment. Battery replacement Replace the battery if it is discharged (the remote control only works at the closest distance or does not work at all). -
Page 8: Device Control
Device control Interface The main menu contains icons with basic functions. Warning! The music, photo, and video functions will not be available unless you have installed a multimedia SD card or USB media. GPS navigation From the main menu, click on the GPS icon to start the navigation program. Warning: install SD card with a navigation card in the device. -
Page 9: Radio
Radio Click on "Radio" in the main menu 1. Display the figure of the radio station currently running; 2. Display the modulation of radio waves; 3. Make a short click on the icon to automatically search for radio stations in the direction of decreasing the figure of the radio frequency. - Page 10 Radio Select the FM broadcast band. Click on the in the main menu or on the BAND on the remote control to switch between the three FM bands. • Semi-automatic radio station search. Make a short click on the icon to automatically search for radio stations in the direction of decreasing the figure of the radio frequency.
-
Page 11: Usb, Sd
USB, SD Install USB/SD with video, music, or photos to the head unit. Playback or slideshow starts automatically. In the main menu or from the remote control, you can switch the "Music", "Photo", "Video" functions. 1. Previous (track) 2. Play! Pause 3. -
Page 12: Bluetooth
Bluetooth Using the function of Bluetooth, is possible to connect a mobile phone to the head unit and use all its functions. Warning: to listen to music from a mobile phone, the phone must support a Bluetooth A2DP profile. If the Bluetooth connection with the mobile phone is already set, the incoming call will automatically switch the head unit to the mobile phone, regardless of the application that is currently running. -
Page 13: Aux
Connection of a mobile device Set the Bluetooth search on the mobile phone for Bluetooth connection to the head unit. Then, in the mobile phone, select CAR-BT and dial the 0000 code to connect. Bluetooth will be connected. Phone call For a phone call, click on the Bluetooth icon on the head unit or use the remote control. -
Page 14: Settings
Settings Settings! Settings Click on the "Settings" in the main menu, a list of settings will be opened: Radio reception zones, audio settings, time settings, language selection for the interface, and so on. Radio reception zones Date and time settings Language selection for the interface... -
Page 15: Audio
Audio settings "Reset" reset audio settings, "Sub on/off" turn on/turn off the subwoofer, "Classic/Pop/Rock/User" music presets, "Tone" sounds when buttons are pressed, "Loud on/off" means loudness on/off. The sound balance in the car's cabin. Adjustment of low/"Low", high/"High" frequencies. Control the head unit with the buttons on the steering wheel Learning logic: 1. -
Page 16: Troubleshooting
Troubleshooting tips Problem Reasons Remedies Device does not The fuses are blown, the battery is Replace the fuses. work low. It is an automatic overvoltage or Check the on-board power supply overload protection. voltage. Restart device with the button RESET. The remote control The battery of the remote control is Replace the battery. - Page 20 The commercial use and reprinting of the manual or any part thereof without written authorization is prohibited. All products and companies mentioned in this manual belong to their rightful owners. The company reserves the right to make changes in the design of the device without prior notice.
