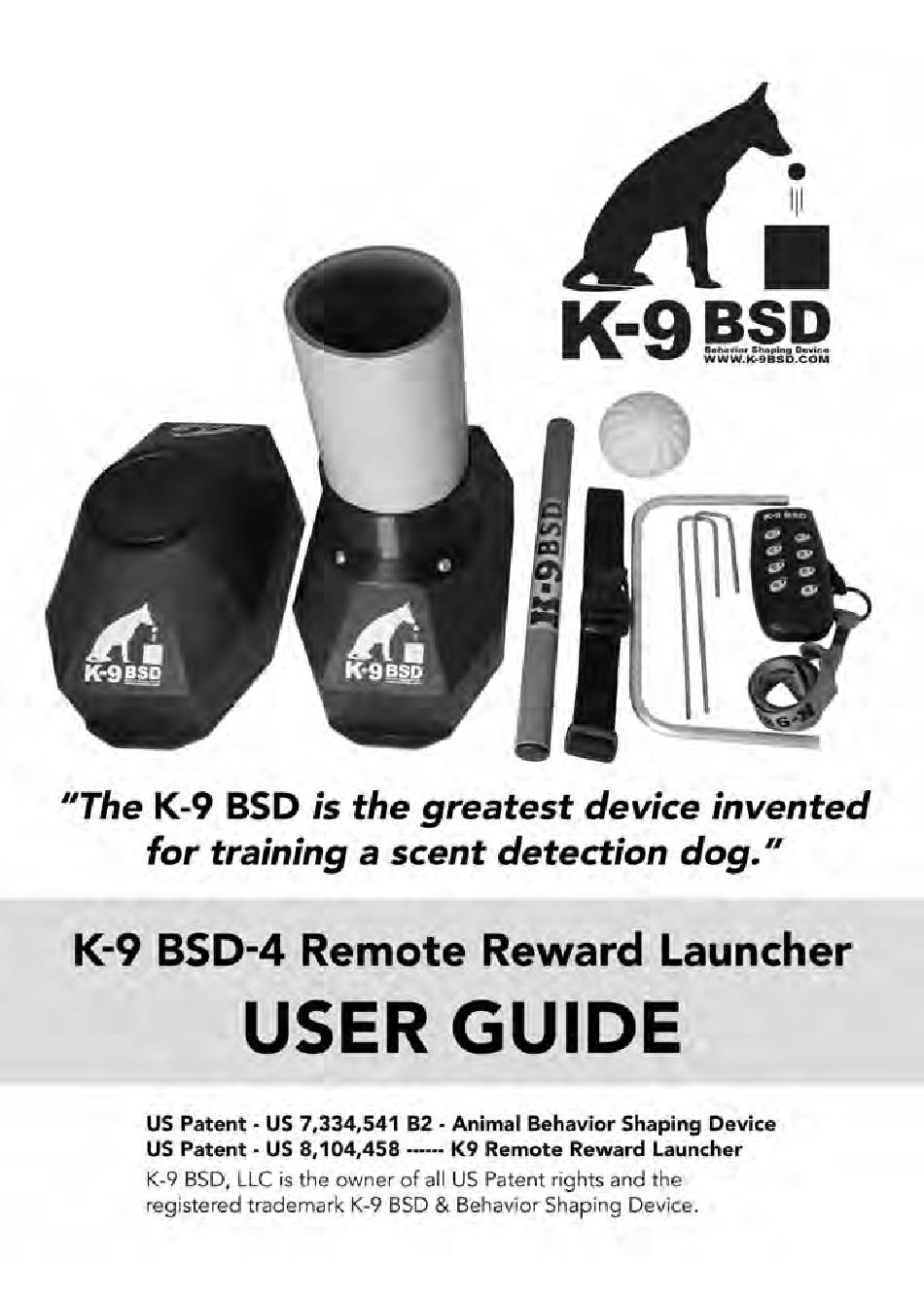

K-9 BSD BSD-4 User Manual

Remote reward launcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Summary of Contents for K-9 BSD BSD-4

  • Page 2: Table Of Contents

    K-9 BSD-4 Control ........

  • Page 3: Introduction

    18 ft / 6 m. Low profile of the K-9 BSD-4 (4" tall / 105 mm) allows for easy camouflage. The transmitter can control up to 4 launchers and can be combined with ball droppers.

  • Page 4: Product Description

    Product Description K-9 BSD-4 Remote Reward Launcher - Transmitter 1. Indicators 2. Acoustic signal buttons for launcher 1 to 4 3. Reward launch buttons for launcher 1 to 4 4. Neck strap hole for Lanyard 5. Battery compartment cover...

  • Page 5: Reward Launcher

    K-9 BSD-4 Remote Reward Launcher 1. Space for inserting the reward 2. Holes for pins attaching the reward launcher to the ground 3. Eyelet for lacing the strap to hang the reward launcher 4. Indicators 5. Target – a place for applying the magnet – switching on/off 6.

  • Page 6: Transmitter Preparation

    Transmitter Preparation Replacement of the battery in the transmitter 1. Unscrew the screw on the back of the battery compartment cover using a cross-head screwdriver and open the cover carefully. 2. Insert the CR2 3V battery correctly regarding its polarity. The polarity is indicated in the battery compartment (see the photo).

  • Page 7: Checking The State Of The Batteries In The Launcher

    Checking the state of the batteries in the reward launcher The state of the batteries is checked by flashing indicators on the bottom side of the launcher. Charged battery – the green indicator flashes when the reward launcher is switched on. Low battery –...

  • Page 8: Pairing The Transmitter With The Launcher

    2. Push the reward by your palm to the bottom of the reward launcher 3. If you have a BSD-4 with barrel, insert a ball or large Kong upside down into the barrel and push down on the ball or Kong with the supplied cocking stick.

  • Page 9: Features Of The Transmitter

    18 ft / 6 m. Maximum Range of the Transmitter The K-9 BSD-4 can be used up to 650 ft / 200 m. However, the maximum range is influenced by a number of factors – weather, terrain, vegetation, etc.

  • Page 10: Maintenance

    Do not use volatile substances such as solvents, petrol or other cleaners to clean your K-9 BSD-4 . Use a soft damp cloth and, if necessary, also a neutral detergent. The transmitter is only resistant to dripping water – protect it from moisture. Permanent damage may occur if moisture penetrates inside the unit.

  • Page 11: Warranty Terms And Conditions

    Warranty Terms and Conditions The warranty does not cover the following items: Batteries Strap with eyes for hanging Direct or indirect risks during product transport to the seller Damage to the product due to user negligence or accident (e.g. breaking, impact, etc.) and intervention of unauthorized persons.
