Installing the components

1. Take off the adhesive protection from both sides of the chassis.

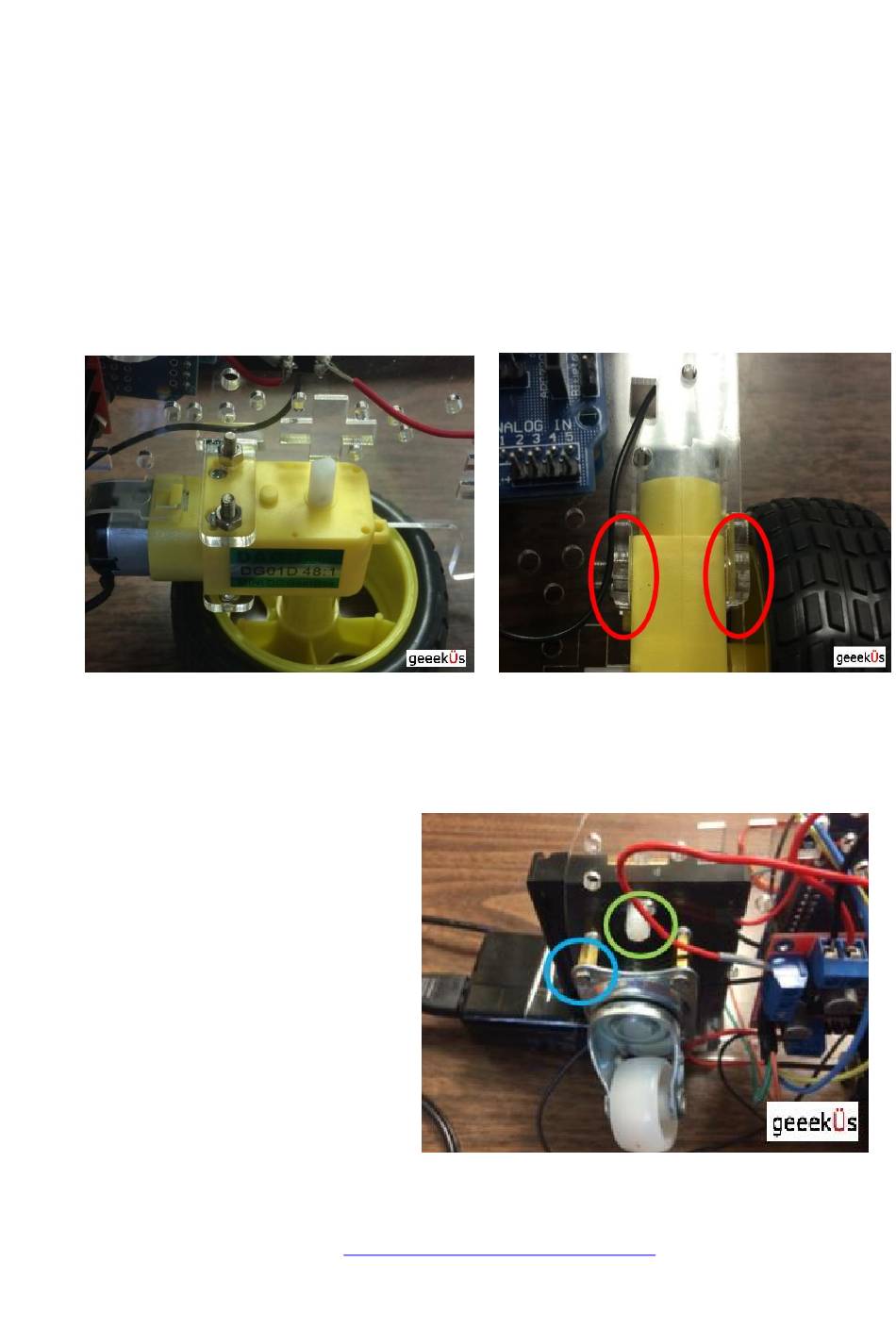

2. Using two motor blocks for each DC Motor, install the latter on the chassis
(as seen in the picture on the right)
3. Between the blocks and on the chassis, fasten the DC using the long
screws and two nuts. The mounted motors should look like the picture on
the left below:
4. Do the same with the second motor.
5. Add the ON/OFF switch in the middle of the chassis in its rectangular
position.
6. Use the four brass standoffs
and eight screws provided to
install the metal ball caster.
Mount it on the front of the
chassis as seen here:
