INTRA-AORTIC BALLOON
Intra-aortic Balloon

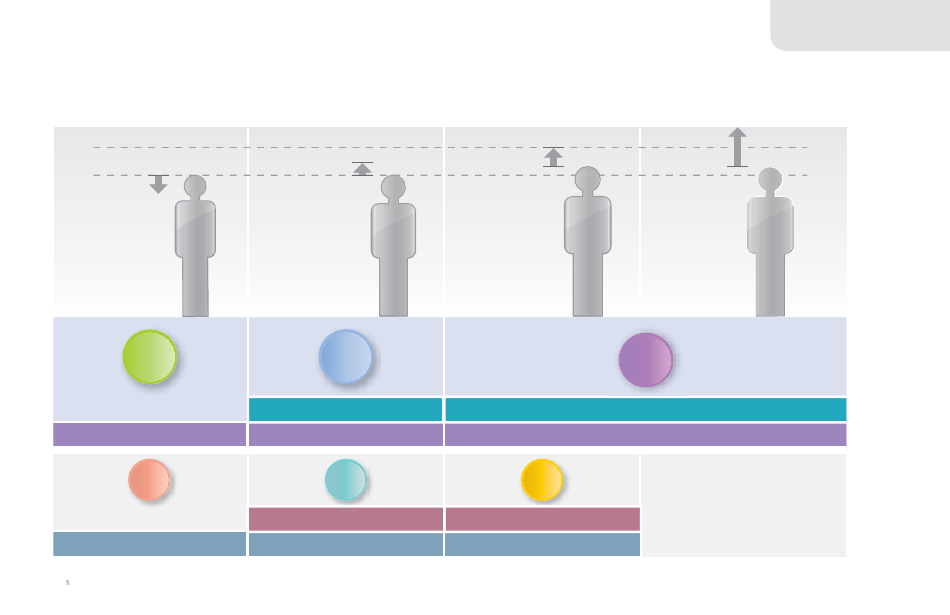

NEW SIZING GUIDE

Reference Sizing Guide

< 5'0"
(< 152cm)
30cc
MEGA 7.5Fr.
®
25cc
LINEAR
7.5Fr.
®
Note: This information is to be used as a guidance only. Clinical information and patient factors such as torso length should be considered when selecting the appropriate balloon size. SENSATION and SENSATION PLUS
are ber-optic IAB catheters.
| Cardiac Assist |
5'0" to 5'4"
(152cm - 162cm)
40cc
SENSATION PLUS 7.5Fr.
®
MEGA 7.5Fr.
®
34cc
SENSATION 7Fr.
®
LINEAR
7.5Fr.
®
5'4" to 6'0"
(162cm - 183cm)
50cc
SENSATION PLUS
MEGA 8Fr.
®
40cc
SENSATION 7Fr.
®
LINEAR
7.5Fr.
®
IAB SIZING
6'
5'
5'4" & taller
(≥ 162cm)
8Fr.
®
