Mami SLIM-3X3 Quick Manual

SLIM-3X3 SELF LEARN remote control

The unit can only learn fixed codes ( TRINARY /Mototola , BINARY/National , MAMI 10+4 and MAMI smart code)
The SLIM 3x3 can store up to 9 different CODES and in any of the above formats ;
The 9 codes are divided into 3 blocks : G(Green ), R(Red) and B(Blue) .
Each block contains 3 different codes corresponding to : button 1, button 2 and button 3
BUTTON S is used to select the blocks. The block is indicated with 3 different color LED
BUTTONS 1 ,2 or 3 TRANSMIT the selected codes (1, 2 or 3) in that block
NOTES : THE REMOTE COMES FROM THE MANUFACTURER WITH NO CODES IN MEMORY

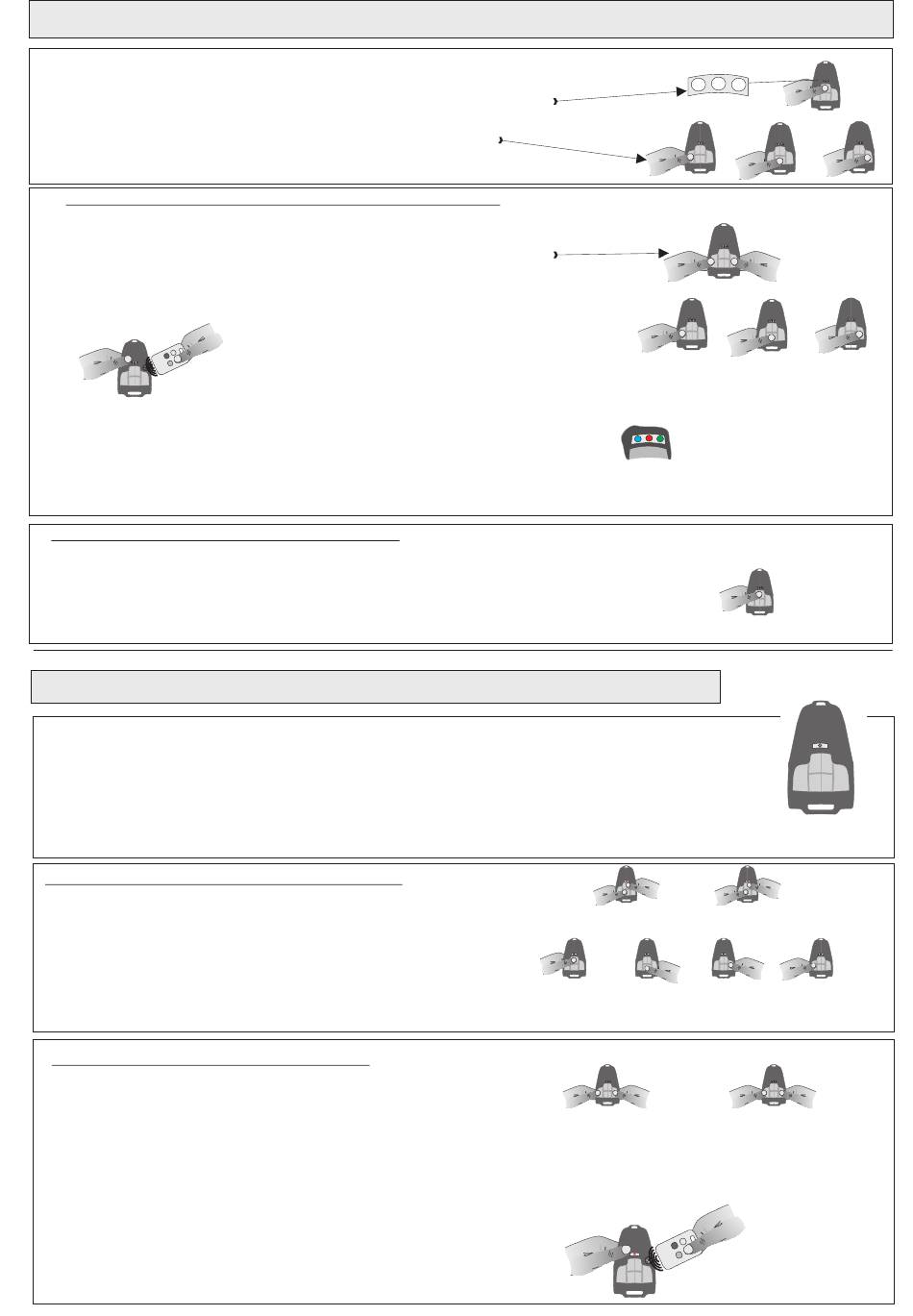

HOW TO PROGRAM A CODE IN A SPECIFIC BLOCK:

1 - press the S button to Select the block ( notice the leds change according to the block selected)
if you change your mind in the process, press button S again until the correct block is selected.
2 - Simultaneously press BUTTONS 1 and 3 until the led corresponding to that block turns ON
3 - now press and hold the button you have chosen to program
BLUE, RED and GREEN flash alternatively
4 - bring the antenna section of the transmitter to be copied (MASTER transmitter)
S
1 2 3
note: a 10th code can be stored also under button S. This is a special code and is common to all 3 blocks when pressing for longer
then 2 seconds and could be used as the Panic Button
If the RED led stays on it means that the master is faulty is on a different frequency .
If the red led flashes 3 times it means that the antenna of the MASTER remote is not close enough.
try and change the position of the MASTER transmitter to improve the irradiation pattern
If unsuccessful the red led will flash 6 times and will switch itself off after approximately 20 seconds

HOW TO SELECT THE CODE TO TRANSMIT

1- briefly press the S button until the correct block is selected ( notice the leds change according to the block selected)
2 - Press either BUTTON 1, 2 or 3 to TRANSMIT.(the corresponding LED indicates a valid code at that location
.
3 - if you hold the S button for longer then 2 seconds the common code (panic button) will be transmitted independently of the
block selected. This indicated by all 3 led turning on.
NOTE : the remote control will remain in the block selected until changed by
SLIM-QUATTRO remote control (page 1)
NOTES : THE REMOTE COMES FROM THE MANUFACTURER WITH NO CODES IN MEMORY
The unit can be configured to be :
MODE 1 - a single channel "SMARTCODE" transmitter where all 4 buttons will activate CH1 on the receiver
MODE 2 - a 2 channel "SMARTCODE"
MODE 3 - a 4 channel"SMARTCODE" transmitter where buttons 1,2,3 and 4 will activate CH1,CH2,CH3 and CH4 on the receiver
MODE 4 - a four channel "SMARTCODE" transmitter specifically designed to work with the TRACER ALARM PANEL
where button 1 is panic, button 2 is ARM/DISARM, button 3 activates the lights and 4 will act as a call button
The 4 models can be re-configured as pleased at a later stage.

HOW TO PROGRAM THE REQUIRED MODE :

1 - Simultaneously press BUTTONS 1 and 2 until the RED led turns ON
2 - Release both buttons
3 - Again simultaneously press BUTTONS 1 and 2 until the RED led flashes TWICE
4 - Release both buttons
5 - now remembering that :
Button 1 corresponds to MODE 1
Button 3 corresponds to MODE 3
press and hold the button corresponding to the mode you have chosen until a 1 second flash on the red led

HOW TO PROGRAM THE DIPSW CODE:

1 - Simultaneously press BUTTONS 3 and 4 until the RED led turns ON
2 - Release both buttons
3 - Simultaneously press again BUTTONS 3 and 4 until the RED led ONCE
4 - Release both buttons
5 - the red led will start flashing indicating that the unit is awaiting a code to be acquired
the DIP-SWITCH code may be acquired in the three different methods , A, B or C:
A
- by self-learning method ( holding the master transmitter close to the learning unit
a.1 - bring the antenna section of the transmitter to be copied (MASTER transmitter)
close to the buttons 1 and 3 of the learning transmitter.
a.2 - Press the button to be copied on the MASTER transmitter
and observe that the RED stops flashing indicating that the
learning transmitter is trying to analyze the incoming code.
a.3 - keep transmitting . If successful the unit will flash once (for 1 Second)
(1, 2 , or 3 )
close to the buttons S and 3 of the learning transmitter.
5 - Press the button to be copied on the MASTER transmitter
and observe that the BLUE led is flashing indicating that the
learning transmitter is trying to analyze the incoming code.
6 - keep transmitting . If successful the unit will flash once (for 1 Second)
transmitter where buttons 1 will activate CH1 and buttons 2 will activate Ch2 on the receiver
B utton 2 corresponds to MODE 2
Button 4 corresponds to MODE 4
until the
BLUE LED
briefly pressing button S
1
4
1&2
or
+
1 1
3
3
2
MODE 1
1
3
4
2
3&4
4
or (PTO)
R G
B
or
1
2
S
S
1
3 1
3
2
2
S
1 3
2
1&3
or
S
S
1 3
1
3
2
2
1
2
RED LED
GREEN LED
if pressed for longer
then 2 seconds, sends
1 1
3
1 2 3
code 10 (panic )
4
+
1
4
2 3 2 3
1&2
or or
1
1
3
3
4 4
2 2
MODE 2 MODE 3
+
1
3
4
2
3&4
1
2 3
1
1
3
1 2 3
or
3
S
3
1
2
or
S
1 3
2
slim 3x3 insts
1
3
2
1
4 3
2
MODE 4
