Using the ēno Interactive Whiteboard
Part A: Equipment
Please come to Teaching and Learning in room A2508 to sign out the ēno Stylus kit and to get
the ēno Application installed on your laptop.

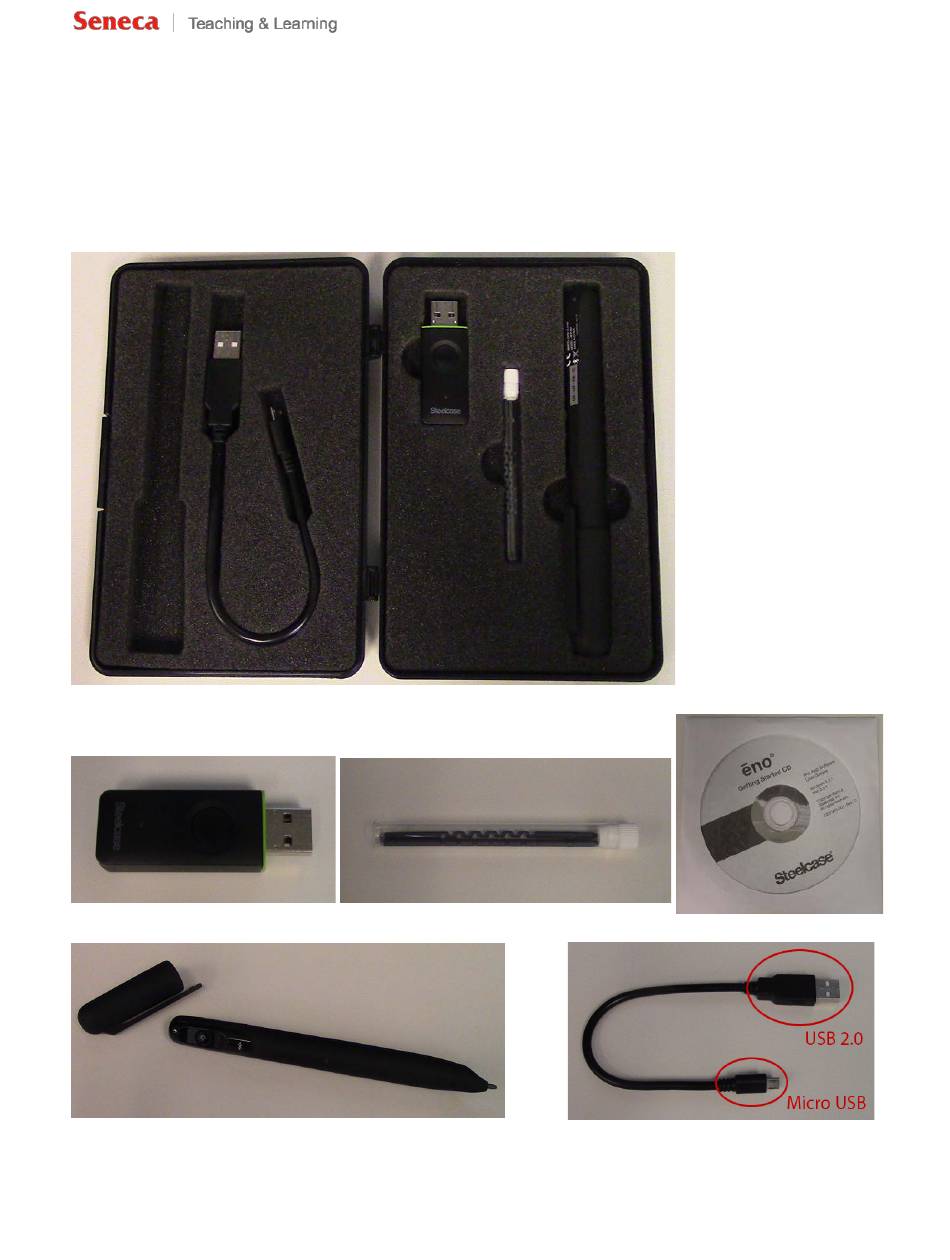

ēno Stylus Kit
ēno Bluetooth Receiver
Stylus Tip Replacements
Installation CD
Rechargable ēno Stylus
USB Charging Cable
1
Advertisement
Summary of Contents for Seneca eno
- Page 1 Using the ēno Interactive Whiteboard Part A: Equipment Please come to Teaching and Learning in room A2508 to sign out the ēno Stylus kit and to get the ēno Application installed on your laptop. ēno Stylus Kit ēno Bluetooth Receiver Stylus Tip Replacements Installation CD Rechargable ēno Stylus...
- Page 2 Part B: Installing the ēno Application 1. Insert the ēno getting started CD. When you insert a CD into a Windows computer, AutoPlay will run. Click “Install ēno Application.” If AutoPlay does not run, open “My Computer” to see your CD/DVD drive, right click the “DVD RW Drive ēno App 3.2.1”, and click “Install ēno Application.”...
- Page 3 2. Windows Installer will begin the installation process. The User Account Control prompt will appear, asking for permission to install the software onto your computer. Click “Yes.” The User Account Control will also ask for permission for the installer to make changes to your computer;...
- Page 4 5. Check the box to accept the terms in the license agreement and click “Continue.” 6. By default, “ēno” should be selected; if not, check the “ēno” option box. Click “Install.” 7. Please wait while the ēno application is installing.
- Page 5 8. When you receive the prompt, plug the ēno Receiver into a USB port on your computer. Click “OK” to close the prompt. 9. Once the installation is complete, click on “Reboot” to reboot your system.
- Page 6 Part C: Pairing with the ēno Application 1. Once your computer finishes rebooting and loading, click on the “Windows” button (or “Start”) and open the Steelcase ēno Application. 2. When the application is finished loading, you will see the screen shown below. If the ēno Receiver is not plugged into your computer at this point, plug it into a USB port.
- Page 7 b. Click on the button on the ēno Receiver and proceed to step 4. 4. Power off and on the ēno Stylus. There are two ways to do this. a. Press the power button. b. Replace and remove the stylus cap.
- Page 8 There will be a green blinking light when the stylus turns on. 5. Wait for the auto-pairing to be complete. The ēno Receiver will have a blinking green light while it’s attempting to connect. When the ēno Stylus is paired successfully, click “OK.” When successfully paired, the light on the ēno Stylus will have a solid green light and the ēno Receiver will have a solid blue light.
- Page 9 b. Make sure the ēno Stylus is charged. If it needs charging, plug the micro USB end of the charger into the ēno Stylus and plug the USB end into your computer's USB port. c. Power the ēno Stylus off and on by pressing the power button or replace and remove the stylus cap.
- Page 10 6. You will see that the ēno Stylus is “Connected” and the ēno Receiver is “Active.”...
- Page 11 Part D: Connecting to the ēno Interactive Whiteboard 1. Connect the HDMI cable to your computer. If the ēno Receiver is not plugged into your computer at this point, please plug it into a USB port. 2. Turn on the ēno Interactive Whiteboard by touching the Crestron screen. Click “Send Front Plate to all.”...
- Page 12 Your computer’s desktop will now be projected onto the whiteboard, Mediascape 1 and Mediascape 2. You will see on your computer with the Steelecase ēno Application opened, that the ēno whiteboard is now active.
- Page 13 3. If this is the first time you are using the ēno Interactive Whiteboard, you need to calibrate the whiteboard with your computer. Using the ēno Stylus, tap the Calibrate icon on the ēno App strip once. 4. Follow the instructions that is projected onto the whiteboard. You will be asked to tap the “X”...
- Page 14 5. Once you finish calibrating the whiteboard with your computer, go to “User Settings” in the Steelcase ēno Application. Turn ON “Fixed Projector” and “Search COM Ports on.”...
- Page 15 Part E: Using the ēno App Icon Strip You can use the ēno Stylus to tap on these icons on the ēno App icon strip.
- Page 16 Part F: PowerPoint Presentations 1. When connected to the ēno Interactive Whiteboard, click the “Slide Show” button to begin your PowerPoint presentation. 2. Sometimes what you see on your computer screen is different from what is displayed on the whiteboard, as shown below.
- Page 17 3. Click “Display Settings” and then “Duplicate Slide Show” to duplicate your screens. 4. Now both your computer screen and the whiteboard will display the same thing. For more detailed information: • ēno Interactive Whiteboard User Guide • Self-Help Documents and How-To Videos from Bring Learning to Life...
