Summary of Contents for SKY BLUE FMUSER

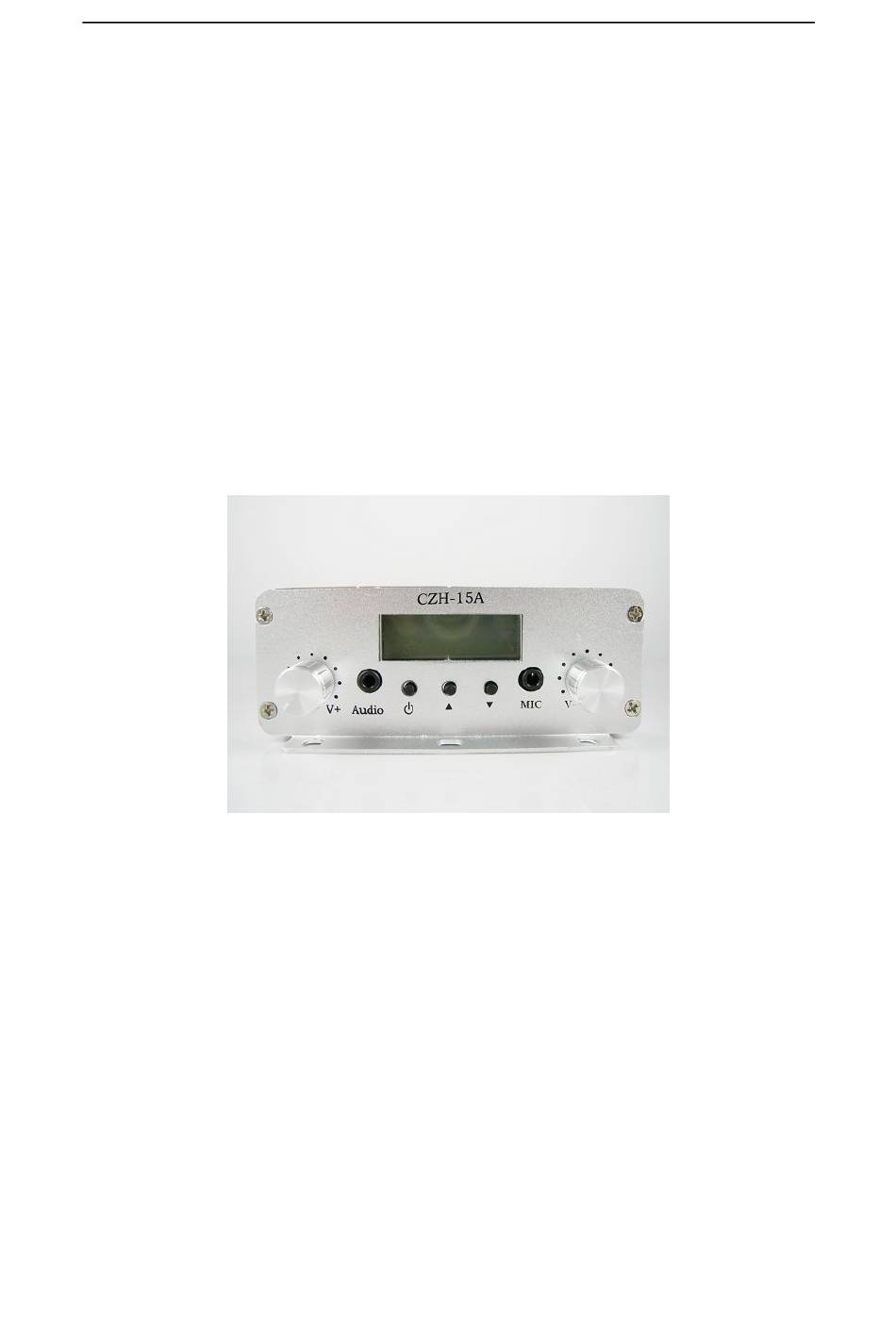

- Page 1 Contact person: Sky Blue Email: sky@cantonmade.com Web: www.fmuser.org Skype:sky198710021 FMUSER 15W Transmitter Manual Contact person: Sky Blue Email: sky@cantonmade.com Web: www.fmuser.org Skype:sky198710021...
- Page 2 Contact person: Sky Blue Email: sky@cantonmade.com Web: www.fmuser.org Skype:sky198710021 This product uses a new generation of Japanese ROHM's chip FM stereo radio emission (BH1415F) Seiko-produced. This machine looks beautiful, with gold-plated aluminum chassis fully closed, compact structure, shielding is good, solid firm,...
- Page 3 Contact person: Sky Blue Email: sky@cantonmade.com Web: www.fmuser.org Skype:sky198710021 the "+" and "-" two touch switches to regulate the frequency of upward and downward, fast and intuitive. "Audio" as the standard 3.5mm stereo input jack, you can easily connect to most home stereo audio playback device.
- Page 4 Contact person: Sky Blue Email: sky@cantonmade.com Web: www.fmuser.org Skype:sky198710021 Modulation Mode: FM Frequency Offset: + /-75KHz Output Impedance: 50 Europe Harmonic radiation: <-55dbc Pre-emphasis delay: 50us;; Separation: 40dB; Input Level:-13dBV; Applicable to the microphone: Electret condenser microphone Operation instructions Contact person: Sky Blue Email: sky@cantonmade.com Web: www.fmuser.org Skype:sky198710021...
- Page 5 Contact person: Sky Blue Email: sky@cantonmade.com Web: www.fmuser.org Skype:sky198710021 1. Operation steps: installing an antenna---->>> to connect the power ---->>>to connect audio source---->>> to connect the microphone 2. Press the power button to boot into normal working condition. AS the step of the bottom:...
- Page 6 Contact person: Sky Blue Email: sky@cantonmade.com Web: www.fmuser.org Skype:sky198710021 of the power socket (Note the polarity is correct, he is outside the negative) As shown above, for connecting external sound source audio lines connected to "AUDIO" interface. Should use more cable shielding performance audio cable, 3.5mm plug.
- Page 7 Contact person: Sky Blue Email: sky@cantonmade.com Web: www.fmuser.org Skype:sky198710021 After all the preparation work was ready, the power adapter open, the transmitter is in standby mode the screen displays "OFF": Click on the front panel , The transmitter will enter the normal working state, and then, through the "+"...
- Page 8 Contact person: Sky Blue Email: sky@cantonmade.com Web: www.fmuser.org Skype:sky198710021 parameters (see instructions) B. To open the boot method, press the power button, the flash look, LCD displays "OFF" Reasons: low-voltage, over-power adapter with a lower load capacity. Solution: replace the power adapter (12V/4A) C.
