Summary of Contents for Soundtrack USA Titan-18P

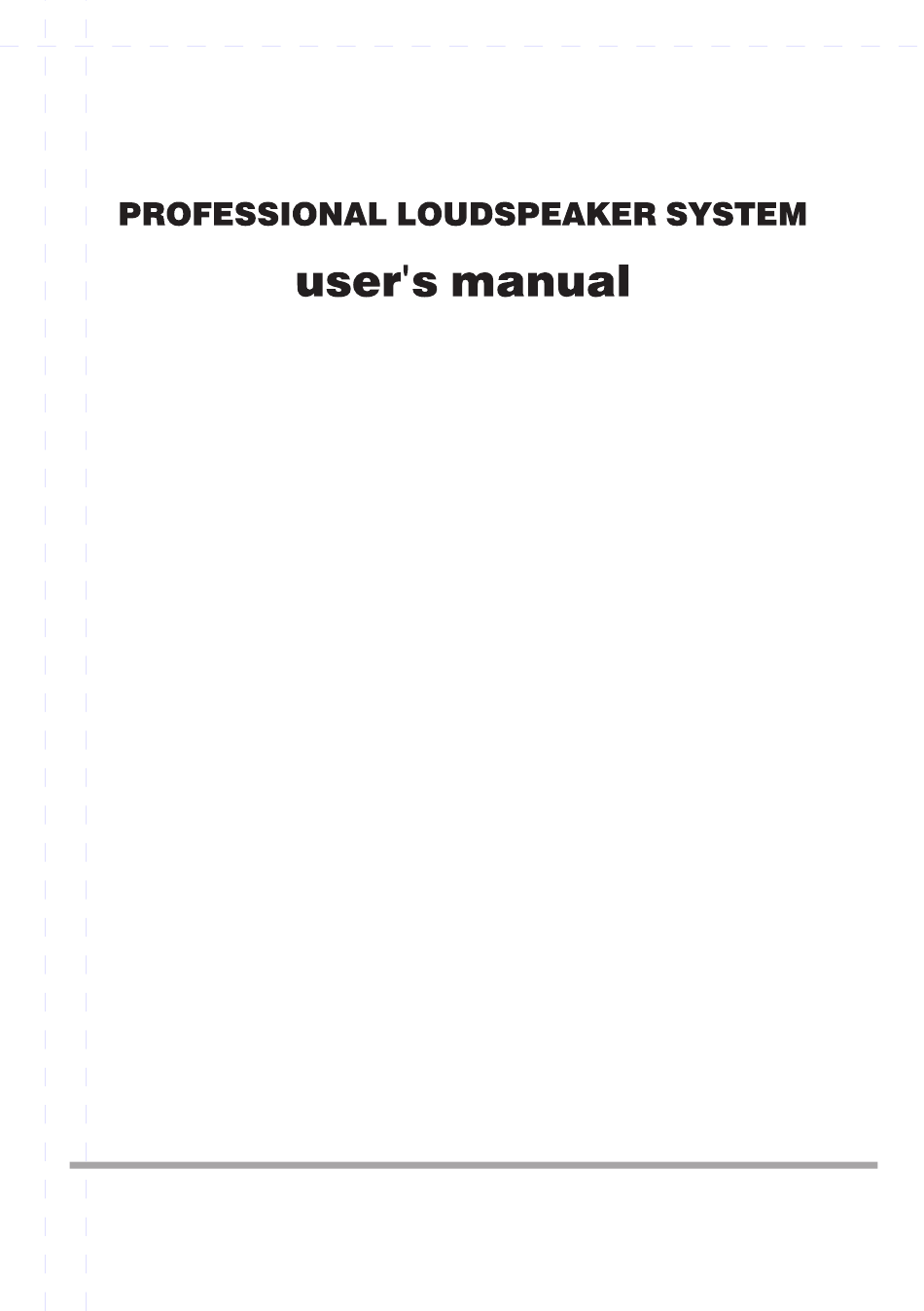

- Page 1 W15AL/W18XA...
- Page 2 IMPORTANT SAFETY SYMBOLS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating conditions, which may be sufficient to constitute the risk of electric shock or death.
- Page 3 1 Features The Sub woofer speakers are designed for professional stage, using high strength and density board, for cabinet, two metal handle, enjoying strong subwoofer. Attractive appearance with black paint finishing, containing precise crossover frequency for good performance, four rubber corners in bottom bracket and sides to protect the unit.
- Page 5 W115AL 1. MIC INPUT Plug a mic directly into this port for public address usage and let AUX LEVEL your voice be heard. (No phantom power) 2. RCA INPUT Connect a CD player, digital media player, mixer, or other media AUX IN source to these inputs.
- Page 6 Application Examples #1 This example shows a two-channel (stereo) setup utilizing one subwoofer and two top-boxes. Audio signals for the left and right channels are supplied by the mixer console. this signal source can be just about any variable-output level audio source, such as DJ mixers, professional CD players, or computer-based audio signal sources. Audio output from the mixer is connected to the subwoofer left (L) and right (R) channels.
- Page 7 Application Examples #2 This example shows a two-channel (stereo) setup utilizing two subwoofers and two top-boxes. Audio signals for the left and right channels are supplied by the mixer console. this signal source can be just about any variable-output level audio source, such as DJ mixers, professional CD players, or computer-based audio signal sources. Audio output from the mixer is connected to the subwoofer input of each channel.
- Page 8 3. WIRING Sleeve 1: Shield 2: Hot (+) 3: Cold (-) Ring 1/4" TRS JACK 4. TECHNICAL SPECIFICATIONS W15AL Specifications Type Two Way Frequency Range 45Hz-20KHz 95dB Sensitivity(1m/1w) Impedance 4ohm Woofer 15" 65mm 60OZ Driver 1.0" Exit-1.0" Compression Drive 123dB Treble, Bass Amp Type Class H...
