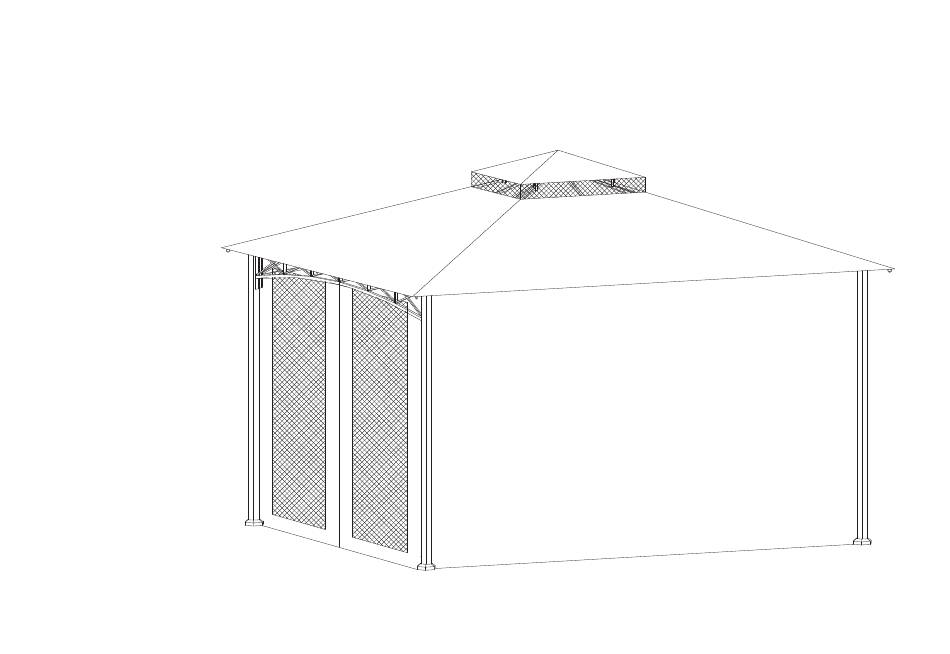

- Page 1 10’x12’ Smith and Hawken San Rafael Gazebo style # LGZ531PSTC tc # 13720902 >> assembly instructions...
-
Page 2: Before You Begin
Congratulations on your latest Target.com purchase Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your room in no time. -
Page 3: Tools Needed
Tools needed... - Page 4 Table of contents Introduction Hardware Parts list Assembly 7-10 QUESTION? Please call 855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and TC number ready when calling.
-
Page 5: Hardware Pack
Hardware Pack (H1) x 32 (H2) x 72 (H3) x 16 (H4) x 8 (H5) x 8 M6 x15 M6 flat washer M6x15 hex bolt M6x25 hex bolt M6 hex nut cross recessed bolt (H6) x 8 (H7) x 52 (H8) x 12 (H9) x 16 (H10) x 1... -
Page 6: Item Description
ITEM DESCRIPTION QUANTITY Small top connector Small top slanting bar Hook Big top connector Slanting bar (packed inside Part L1) Big top lower slanting bar connector Center beam 1 (packed inside Part L1) Center beam 2 (packed inside Part L1) Center beam connector Long valance 1 Long valance 2... - Page 7 Step 1: Fig.1 Fig.2 Fig.3 L1(L2) K1(J1) K2(J2) I K2/K1 J1/J2 L1(L2) L1&L2 Fig.1: Attach stake cover (O) to post 1 (L1) or post 2 (L2), then attach stake plate (N) to post 1 (L1) or post 2 (L2) with bolt (H1) and flat washer (H2). Fig.2: Lock big top lower slanting bar connector (F) to post 1 (L1) or post 2 (L2) with bolt (H1) and flat washer (H2).
- Page 8 Step 2: Fig.13 Fig.14 Fig.6 Fig.8 Fig.7 Fig.12 Fig.9 Fig.10 Fig.11 (H1) x 12 (H2) x 28 M6x15 cross M6 flat washer recessed bolt (H5) x 8 (H6) x 8 Fig.6 M6 hex nut M6x35 cross recessed bolt Fig.6: Attach hook (C) to big top connector (D). Insert slanting bar (E) to big top connector (D). Fig.7: Insert lower part of top slanting bar (E) to big top lower slanting bar connector (F).
- Page 9 Step 2: Fig.11 P2,P4 P1,P3 Fig.9: Attach center beam 1 (G) and center beam 2 (H) to center beam connector (I) with bolt (H6) and flat washer (H2) and nut (H5). Attach the big canopy to big top, but do not fully spread it. Fig.10: Attach mosquito netting tube connector (P5) to center beam 1 (G) and center beam 2 (H) with bolt (H1) and flat washer ( H2).
- Page 10 Step 4: Fig.15 Fig.16 (H7) x 52 (H8) x 12 plastic loop Φ8x180 stake Fig.15 Fig.16 P1(P2)(P3)(P4) L1(L2) H8 H8 Fig.15: Attach mosquito netting (T) to mosquito netting tube P1(P2)(P3)(P4) with plastic loop (H7). Tie Sunshade to the post at wider side. Fig.16: Lift Stake cover (O), fix gazebo to the ground with stake (H8).
-
Page 11: Care And Maintenance
Care & Maintenance Our iron / steel components for garden accessories and furniture are treated with rust inhibiting paint that protects it from rusting. However, due to the nature of iron / steel, surface oxidation (rusting) will occur once these protective coatings are scratched. This is a natural process and is not a defect! To minimize this condition, we recommend care to be taken when assembling &...
