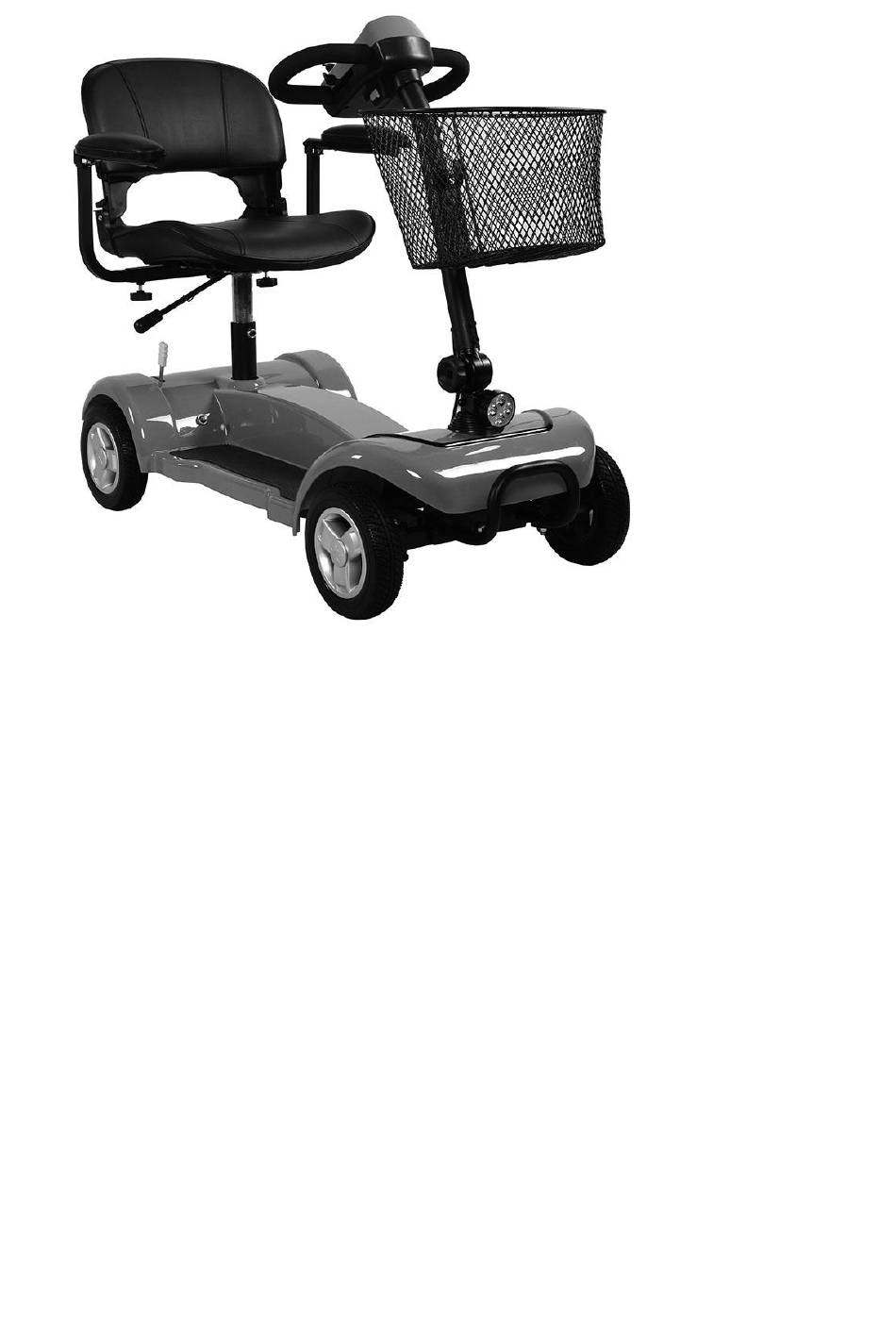

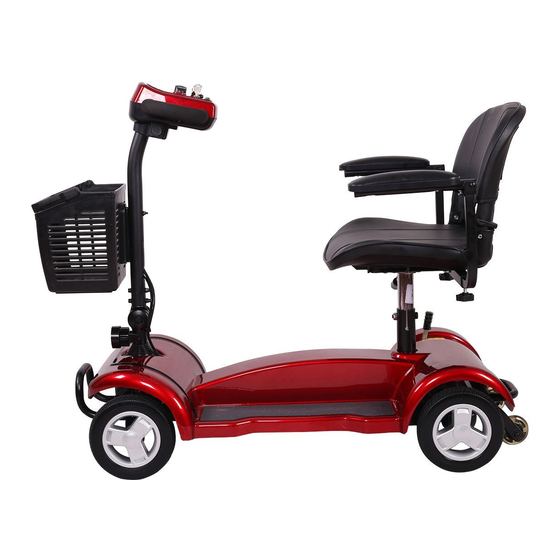

  • Page 1 Mobility scooter X-01...

  • Page 2: Table Of Contents

    The model of this produce is X-01, We will be appreciated to hear your Whether to use your product safely is up to whether you follow suggestions for this manual and the evaluation to the safety, reliability of instructions, caution sand warning sin this manual.

  • Page 3: Structureandperformance

    II.STRUCTURE AND PERFORMANCE II.STRUCTURE AND PERFORMANCE 1．TILLERCONTROL This scooter mainly consists of four parts: front body, rear body, seat unit and batteries (See fig. 1). A. Power indicator Front body consists of controller, handlebar and footrest. B. Speed dial Rear body consists of drive motor, brake, electric controller unit. Seat C.

  • Page 4: Assembly

    III.ASSEMBLY For convenience of transportation and reduction of possible damage, the batteries and the seat unit are separately packaged. So you need assemble them onto the main frame of your scooter. Overload protector 3-pin charger socket OPENING THE PACKING BOX II.STRUCTURE AND PERFORMANCE Open the packing box of your new scooter ,and take off all protective Fig.3...

  • Page 5: Iv. Comfort Adjustments

    III.ASSEMBLY BATTERYASSEMBLY This new model’ battery is inside of the body of scooter, so don’t need assembly by customers.(fig.6) If you need to fix the battery, please open the body like the picture.(fig.7) Fig.4 Fig.5 SEATASSEMBLY SEATHEIGHT 1. Put the seat onto the seat post（fig.8）. Pull up the seating fixing bar to release the seat.
  • Page 6 Fig.6 V.OPERATION V.OPERATION type deep-cycle lead acid batteries 1. CHARGINGBATTERIES voltage 12 V capacity 12 Ah The battery charger is important to the batteries. This off-board charger can charge your scooter’s batteries safely, 2. TILLER CONSOLE quickly and easily. WARNING! Your scooter's batteries must be charged with the off-board battery charger supplied by The tiller console houses all of the controls required for driving your see dream.
  • Page 7 WARNING! Do not use the key switch to stop your scooter V.OPERATION unless an urgent event has happened. WARNING! If your scooter occurs unintended motion, please WARNING! If your scooter has stopped for a long period, power release the throttle control lever immediately. The scooter will down it to prevent unintended motion automatically come to stop unless this lever is out of order.
  • Page 8 V.OPERATION Battery Condition Indicator（see fig. 2） 4. MANUAL FREE-WHEEL LEVER When your scooter is powered up, this indicator shows the remaining There is a free-wheel lever at the low right of the seat, shown as fig.16. capacity of the batteries by 3 color ranges on it: red, yellow and green. Whenever you do not want to move your scooter by motor, you can put it in free-wheel mode.

  • Page 9: Maintenance

    5. 3-PINCHARGERSOCKET（seefig.3） WARNING! This socket is used to connect to the charger. When the batteries are A wrong connection may cause damages to the charger. charged, this socket makes your scooter out of work. VII.SAFETY VI.MAINTENANCE 1.PRE-RIDESAFETYCHECK Check all electrical connections. Make sure they are tight and not GENERALGUIDELINES corroded.
  • Page 10 The maximum safe slope of an incline is of 12°for your scooter. If a VII.SAFETY slope is less than this angle, it is safety for your scooter whenever climb or descent. 7.TRANSFERONTOOROFFSCOOTER Table 2 Checklist To avoid an injury, the following safety precautions are useful for you Check Items At any tim e Weekly Monthly Six m onthly...
  • Page 11 Failure to do so may cause immediately turn your scooter off and contact your authorized personal injury. Seedream provider. Seedream Corporation is not liable for any damage and/or injuries due to failure WARNING! Do not attempt to place your scooter in manual freewheel mode while seated on it.

  • Page 12: Warranty

    VII.WARRANTY VIII.Error Code All of design and production processes of Seedream products are managed in accordance with ISO 9001 to guarantee their quality. Times of buzzer Fault description Possible Causes Warranty service will be performed by the authorized Seedream provider in cooperation with the Seedream after-service department.
