SolarBright K-LED25 Installation Instruction

LED SOLARLIGHT INSTALLATION INSTRUCTION
Model
K-LED25 250mm LED light for day
K-LED40 400mm LED light for day
K-LED25B 250mm LED light for day
K-LED40B 400mm LED light for day
Safety - When installing SolarBright LED system ensure that all safety measures and precautions are taken.
The installation of the product will require using power tools, climbing on the roof and possibly working in a
confined space. The product has been designed to be installed by an experienced handyman; however the
installer must be competent to carry out this task safely and correctly.
Ensure the area surrounding & top of the LED light inside the roof space is clear, insulation and other
Roof work: Please ensure the solar panel is installed in north pitched facing position and away from any
potential shading. The performance of the LED will depend on the quality and amount of the light
Tiled Roof
Description
operation only
operation only
& night operation
& night operation
objects must be secured away from the LED light
captured by the solar panel.
11 Progress Circuit Prestons NSW 2170 – Ph. 1300 852 622 – www.solarbright.com.au
250mm diffuser kit with LED light, 40w solar panel, 5m or
10m cable, fixing brackets for tiled & metal roof
400mm diffuser kit with LED light, 40w solar panel, 5m or
10m cable, fixing brackets for tiled & metal roof
250mm diffuser kit & LED light, 40w solar panel, 5m or 10m
cable, fixing brackets for tiled & metal roof, battery pack
400mm diffuser kit & LED light, 40w solar panel, 5m or 10m
cable, fixing brackets for tiled & metal roof, battery pack

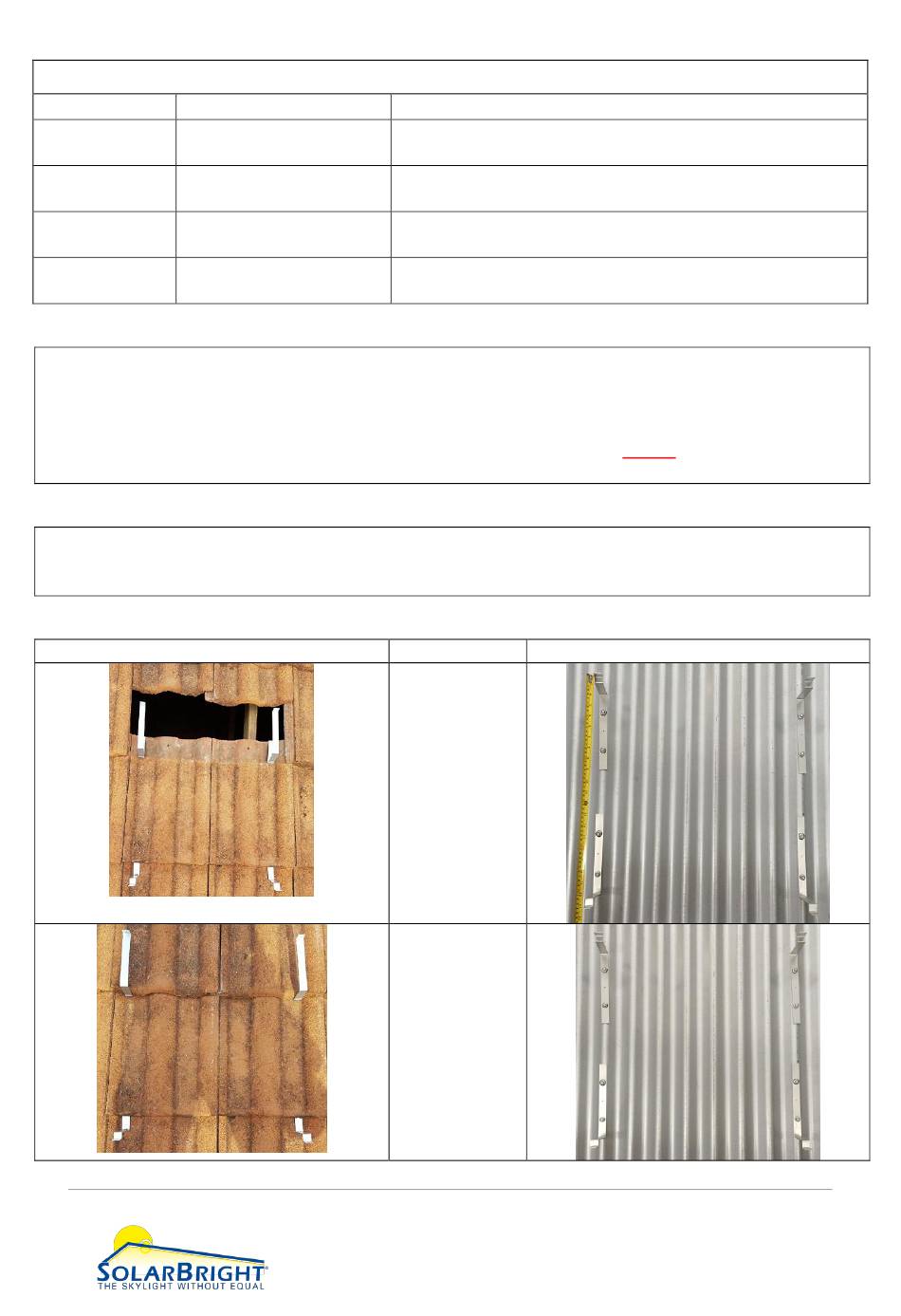

Attach the
brackets to the
roof structure
as shown to
match the size
of the panel
Place roof tile
in their normal
position
Inclusions
Metal Roof
