USER'S MANUAL
Digital Satellite Finder
We operate a policy of technically change without prior notice,
the picture of outlook and color is for a reference only, the actual item is the
standard.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SH-400HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Sathero SH-400HD

  • Page 1 USER'S MANUAL Digital Satellite Finder We operate a policy of technically change without prior notice, the picture of outlook and color is for a reference only, the actual item is the standard.

  • Page 2: Front Panel

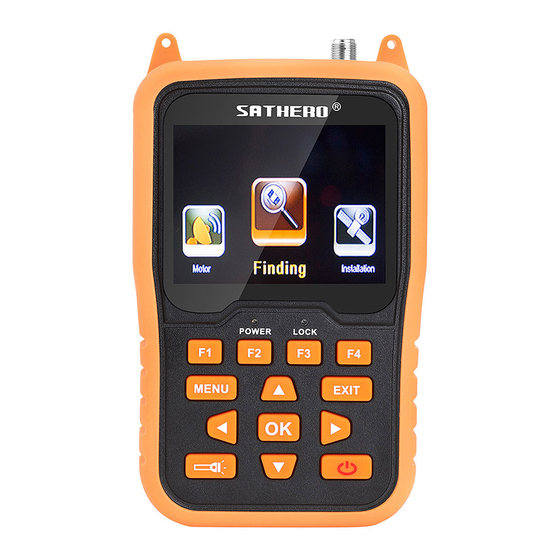

    FRONT PANEL No. Item Description USB-Port Connect to U Disk MINI USB-Port USB port for PC connection and power supply connection Connect to TV through HDMI cable HDMI-Port Satellite signal input LNB-IN Display the TV program, the operation menu and the LCD-Display detailed parameters LED lights when satellite signal is locked...
  • Page 3 INSTRUCTION Charging If the finder is being used for the first time, it may be necessary to charge for no longer than 12 hours. If the battery runs low during use, you should recharge it for 5 or 6 hours, it will be full when the power light turns to orange from green.
  • Page 4 INSTRUCTION Satellite Finding Select Satellite From the finding menu, move the cursor to Satellite, you can browse the satellites list, use [◄][►] buttons to switch between different satellites, select the one you want, press the OK button. Select LNB From the finding menu, move the cursor to LNB Type, Use [◄][►] buttons to choose LNB Type between Single, Universal and MDU, then move the cursor to the next bar, Use [◄][►]buttons to select the default LNB frequency.
  • Page 5 INSTRUCTION Detect satellite signal After signal detected, the finder will display signals at the signal bar and beeps. View the PWR,C/N,MER, a.BER and NIT on the screen, if the value of POWER is higher, the strength of signal is better and stronger. You can also search the satellite channel list by pressing the OK button.
  • Page 6 NOTES Notice: Before being ready to seek satellite signal, make sure that the cable is properly connected first. While installing the antenna, make sure that the LNB in port of finder is well connected to the tuner of the antenna with tested cable. Turn the antenna in the approximate direction, beep when the antenna close to the satellite.

  • Page 7: Technical Spec

    TECHNICAL SPEC LNB Input F-type connector IEC 169 - 24 Frequency range 950MHz ~ 2150MHz Input level -65dBm ~ -25dBm Input Input Impedance 75Ω LNB power supply 14/18V, Max 650mA LNB switch control 22kHz Demodulator Demodulator front end QPSK, 8PSK, 16APSK, 32APSK Symbol rate 2Mbps ~ 45Mbps...
