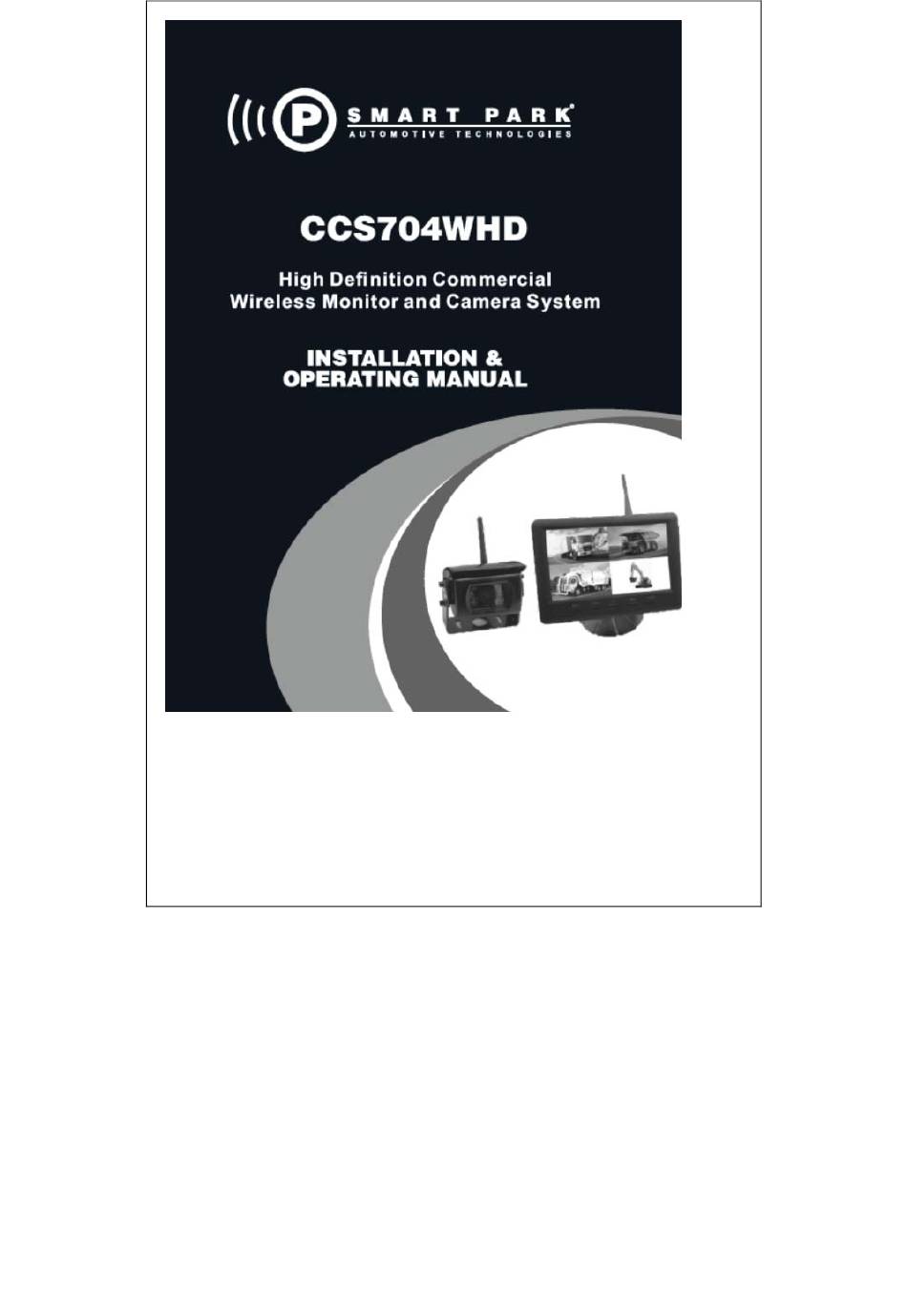

Summary of Contents for Smart Park CCS704WHD
-
Page 2: Product Overview
Product Overview The CCS704WHD represents a combination of the highest quality camera and LCD components, combined with the most advance digital wireless communication technology available. The system operates at 2.4GHz. It uses Coded Differential Orthogonal Frequency Division Multiplexing (CDOFDM) technology to provide the highest quality, most secure, most reliable wireless signal available. - Page 3 Features & Specification LCD701WHD Monitor size 7.0’’ IPS-LCD monitor Transmission frequency 2.4GHz (digital) Transmission resolution High definition Transmission delay (ave) < 200mS RF pairing Auto Changeable channel 125CH (overlapping hopping channel) Video frame rate 25fps / 30fps Operating voltage DC 9V-36V Consumption <...
-
Page 4: Required Tool List
Required Tool List Supplied Parts list Screwdrivers Wireless camera with power cable Marker pencil Wireless monitor with wiring harness Drill Monitor stand Plyers Monitor sunshade Panel removal tool Installation screws/clips Soldering iron & solder Antenna rubber stoppers Voltmeter Safety Glasses Set Antenna &... -
Page 5: Camera Installation
Camera Installation The CAM150WHD Camera installation is simply a matter of bolting the camera onto the vehicle and supplying reverse power (DC 9V-36V). The only issue to take into account is mounting location. There are 3 main factors to consider: 1.Wireless Performance –... - Page 6 Operation Instruction Button 1: System functionality setting MENU Button 2: Selection/adjustment down Button 3: Selection/adjustment up Button 4: Record-Pause (Normal) / Setting enter (Menu) Button 5: System power ON-OFF / CAM-CH selection Page 6...
-
Page 7: System Pairing
To enter the system menu interface power on the screen, press the “MENU” button and use the “ ” or “ ” button to move the cursor to the required sub menu. Press the REC / ENT button to enter the selected sub menu. 1. -
Page 8: Picture Setting
2. Picture setting Select the “PICTURE” icon to enter the sub-menu setting interface a shown, then select and adjust the brightness, contrast, saturation and guideline feature. 3. Mirror-FLP Select the “MIR-FLP” icon to enter the sub-menu setting interface as shown, choose and select the correct mode. When used as a backup camera the image is MIRRORED, this is the default configuration. - Page 9 5. CAMERA SETUP Select the “CAM-SETUP” to enter the sub-menu setting interface as shown. Choose and select the 4 cameras’ ON-OFF status, scan time and auto scan. The auto scan feature will continuously loop the picture display of multiply cameras. The cycling time interval displays can be adjusted using the scan time feature.
-
Page 10: Troubleshooting
8. Record Select the “RECORD” icon to enter the sub-menu setting interface as shown. Choose and select the rewrite and format settings. The initial use of a new SD card (not supplied) must be formatted prior to using the record feature. -
Page 11: Wiring Diagram
Wiring Diagram Page 11... -
Page 12: Fcc Declaration Of Conformity
FCC Declaration of Conformity This device complies with Part 15 of the RCC rules. Operation is subject to the following conditions, (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment generates, uses, and can radiate radio frequency energy. - Page 13 DATE OF SALE _________________________________ PURCHASE PRICE ______________________________ BUYER’S NAME ________________________________ Section 3: LIMITED WARRANTY The Smart Park™ product is guaranteed to be free from mechanical defects for a period of three years when installed by an authorized Dealership. Page 13...
- Page 14 Page 14...
