Summary of Contents for SHS AUDIO SPM Series
- Page 2 IMPORTANT SAFETY SYMBOLS This symbol is used to indicate that some hazardous live terminals are involved with this apparatus, which even under normal operating conditions may be sufficient to constitute a risk of electric shock or death. This symbol is used in the service documentation to indicate that a specific component shall be replaced only by the component specified in that docu- mentation for safety reasons.

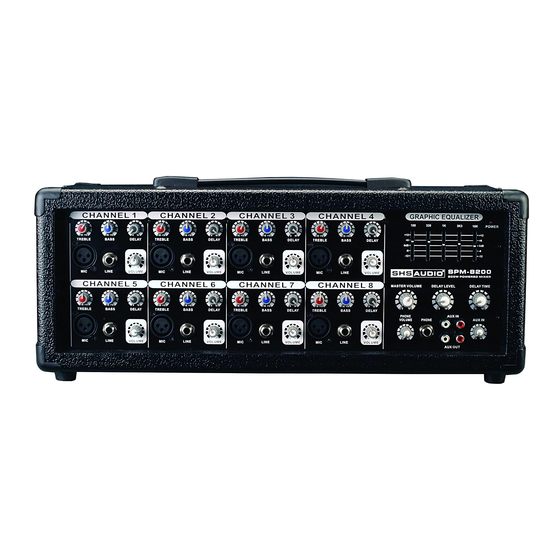

- Page 3 Input Section Controls 1) Mic XLR balanced input. Connect microphones here. (2)Line 1/4” unbalanced hi impedance input. (3) Volume Controls volume of just that channel. (4) Treble High frequency control rated +/- 15db at 15Khz (5) Bass Low frequency control rated at +/- 15db at 80Hz (6) Delay Controls the amount of delay going to the chan- nel.
- Page 4 Master Section Controls 1) Master Equalization Controls equalization on main output. Adjustment range: 100Hz, 330Hz, 1Khz, 3.3kHz + / - 12db (2) Master Volume Controls volume output of all channels. (3) Delay Level Controls overall amount of delay effect on all channels. (4) Delay Time Controls delay effect from short to long.
- Page 5 Rear Panel Controls 1) AC and Fuse Power cord and fuse for powering the unit. ALWAYS make sure unit is powered off before replacing fuse! Only use rec- ommended fuses for replacement. (2) Power Main power on/off control (3) Speaker Outputs 1/4”...
- Page 6 DETAILED SPECIFICATIONS shsaudio.com...
- Page 7 shsaudio.com...
- Page 8 WARRANTY INFORMATION SHS Audio warrants this powered mixer solely to the original retail purchaser to be free of defects in materials and workmanship for a period of 5 Years under normal use. Warranty must be registered online at www.shsint.net within 15 days of purchase.
