Orolia kannad aviation RC100 Abbreviated Component Maintenance Manual

TASK 25-63-20-870-801-A01
1.

Description and Operation

A. General
(1) Purpose
(a) The RC100 is the smallest and most basic version of the remote control panels that are
(b) The RC150 is a variant of the RC100. This version has a more rugged toggle switch.
(c) The RC100 and RC150 permit remote control of the primary functions of the KANNAD ELTs
(2) Description

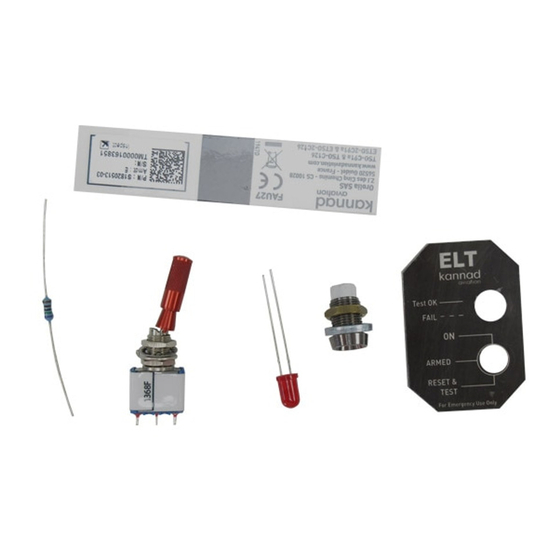

(a) The RC100 and RC150 are made of:
Revision : 04 First Issue : OCT 07/2002
© Orolia S.A.S.
REF.: DOC02335D
The document reference is online, please check the correspondence between the online documentation and the printed version.
Orolia S.A.S. - A Company of the Orolia Group
REMOTE CONTROL KIT, RC100 / RC150
PART NUMBER
S1820513-03 / S1820513-07
ABBREVIATED COMPONENT MAINTENANCE MANUAL
Description and Operation
compatible with the KANNAD Emergency Locator Transmitter (ELT). It is specially intended
for general aviation and its small dimensions also make it suitable for airline cabin
installations or cockpit retrofit.
(Manual activation, Reset, Test, Monitoring).

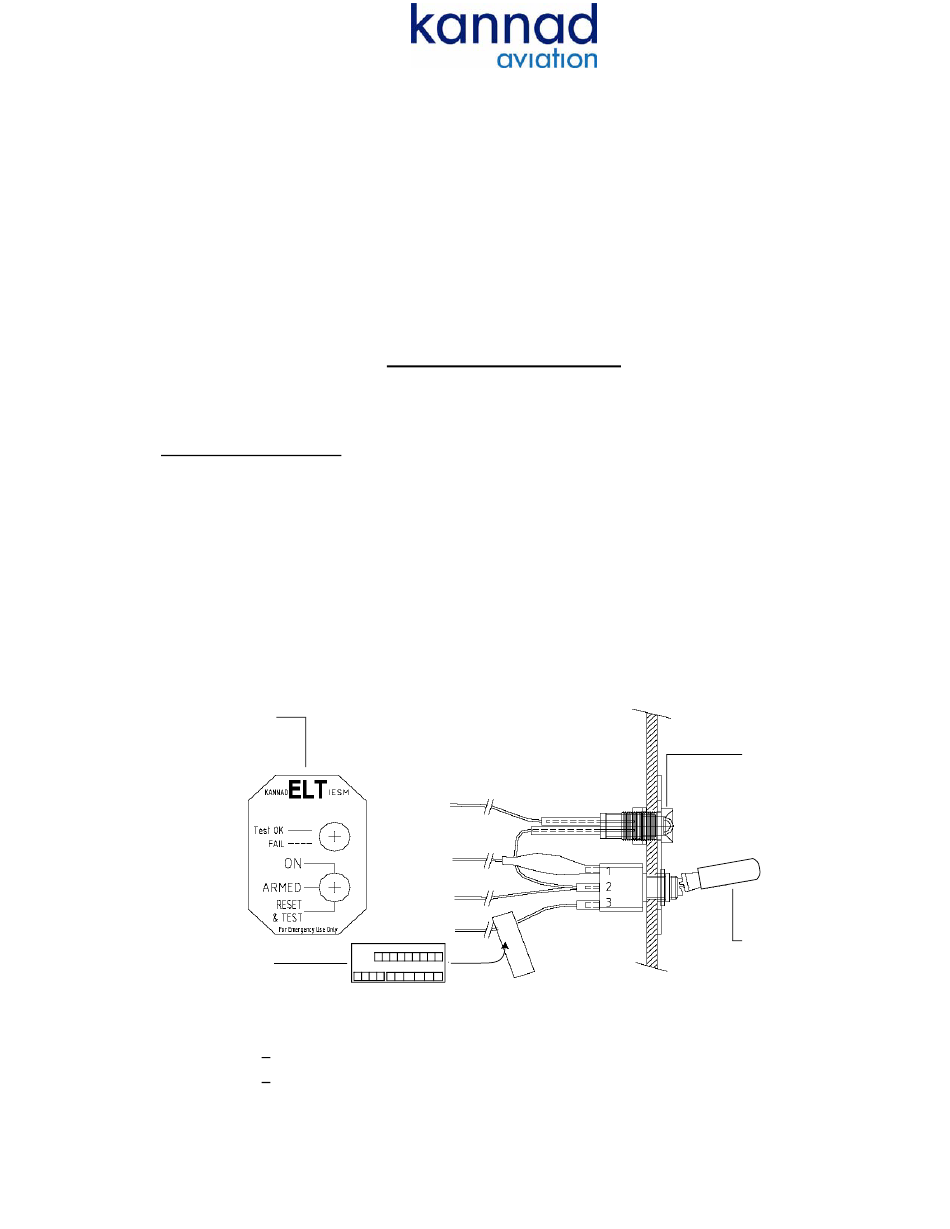

Figure 1 / 25-63-20-991-01-1
Remote Control Panel, Description
1
P/N : Sxxxxxxx-xx
AMDT A
B C D E F G H J
4
S/N : Lxxxx-xxxx
1 2 3 4 V D C1 C2 C3 CF
(Refer to Figure 1 / 25-63-20-991-01-1 Remote Control Panel, Description
1 A self adhesive front plate (black with white inscriptions).
2 A three-position toggle switch with two locking positions and its red protective cap
(RC150 only).
FAU27
25-63-20
3
2
)
Page 1
FEB 03/2014
