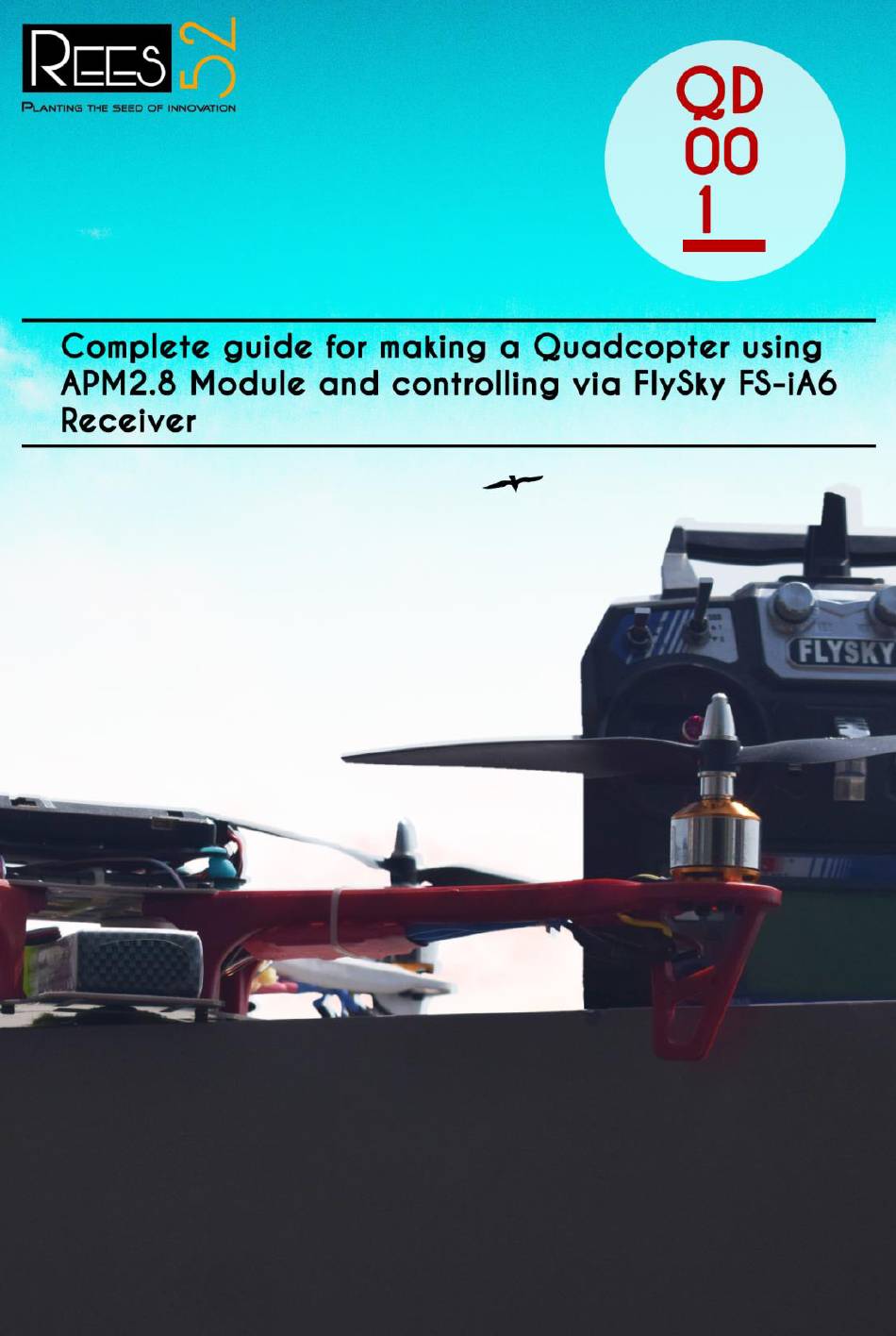

REES52 QD001 Manual

Complete guide for making quadcopter using apm2.8 & controlling via flysky fs-ia6 receiver
Hide thumbs

Advertisement

Quick Links

Download this manual
Pg
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the QD001 and is the answer not in the manual?

Questions and answers

Summary of Contents for REES52 QD001

  • Page 2: Hardware Required

    Hardware Required  Quadcopter Frame – 1 set  Jumper Wire (Female to Female) – 8 sets  FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter – 1  Fly Sky FS-iA6 Receiver – 1  Propellers - 2 sets  1400 Kv Brushless Motor – 4 ...
  • Page 3  APM 2.8 Flight Controller – 1  APM 2.8 Flight Controller Frame – 1  ESC 30A with Bullet connector and Dean Connector – 4 Pin Description FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter Propellers...
  • Page 4 1400 Kv Brushless Motor APM 2.8 Flight Controller...
  • Page 5 ESC 30A with Bullet Connector and Dean Connector...
  • Page 6 Assembling of the Quad-Copter  To assemble the Quadcopter circuit. First, we will cut off the two pins (Dean Connector) of ESC module.  We will use soldering iron for further connections of VCC and GND pins of ESC module on the Quadcopter Frame. ...
  • Page 7 and GND (black wire) with negative terminal of Quadcopter Frame.  Now, follow the same procedure for the other three circuit connections.  Connect XT-60 Female Battery connector with the Quadcopter frame for further power supply connections.
  • Page 8  Attach the other components of Quadcopter frame with the given circuit through Nuts and Screws. Repeat the same procedure for the other three components as well.  Move the Jumper wires beneath the quadcopter frame.
  • Page 9  Attach the Quadcopter component with the main frame through Nuts and Screws.  Attach Brushless Motor with the Frame through Nuts and screws. And repeat the same procedure for the other three motors.
  • Page 10  Now, we’ll do the ESC connections as follows:  Connect the VCC of ESC with VCC of motor.  Connect the GND of ESC with GND of motor.  Connect the PWM/Signal of ESC with Signal of motor. And repeat the same step for front facing motor. ...
  • Page 11  Connect the GND of ESC with Signal/PWM of motor.  Connect the PWM/Signal of ESC with GND of motor. And repeat the same step for front facing motor.  Place Ardupilot Flight Controller over the Frame.  Assemble the frame for Ardupilot Flight Controller.
  • Page 12  Place and attach Ardupilot Flight Controller over the Quadcopter Frame through double sided tape.  Connect Ardupilot Input Pins 1-5 with the Fly Sky FS-iA6 Receiver Channel Input Pins CH1-CH5 via Jumper wires (Female to Female)
  • Page 13  Now, place and attach Fly Sky FS-iA6 Receiver and Jumper wires over the Quadcopter frame via cable ties.  Attach the Receiver Pins with the quadcopter frame via cable ties.
  • Page 14  Here are the given ESC of the Quadcopter Frame.  Now, we’ll do the ESC connections with Ardupilot Flight Controller as follows:  Connect the ESC-2 Pin with Ardupilot Output Pin - 1.  Connect the ESC-4 Pin with Ardupilot Output Pin - 2. ...
  • Page 15  Attach adapter, back plate with the motor to connect propeller.  And then attach spinner cap above the propeller. Repeat the same procedure for the other three propellers.
  • Page 16  Install Mission Planner Software.  Go to the Option Flight Planner and connect Quadcopter with System via USB cable.
  • Page 17  Select the COM Port and Band Rate, then click the connect icon.  Click on Initial Setup, and choose option Mandatory Hardware > Select option Frame Type > Select Quad X type frame.
  • Page 18  Click on Accel Calibration and choose option Calibrate Accel and Follow the given instructions given in the image below.  Now, Place vehicle (Quadcopter Frame) on its left side and press any key.  Place vehicle (Quadcopter Frame) on its right side and press any key.
  • Page 19  Place vehicle (Quadcopter Frame) nose Down & press any key.  Place vehicle (Quadcopter Frame) nose Up and press any key.
  • Page 20  Place vehicle on its Back and press any key.  After process click >Click when done >Calibration Successful.
  • Page 21  Click on Compass option and then choose options APM 2.5 (Internal Compass) > then click on Live Calibration > And click and follow the pop up message. Also, follow the steps given in the image below.  You must follow every instruction given in the image below. Aim for white dots and point the autopilot north, and rotate around the pitch axis until level.
  • Page 22  After successful Live Calibration, new offsets for compass are being saved.  Click on Radio Calibration > then click on Calibrate Radio option and Check all the buttons whether they are in working condition or not > then click on option Click when done. ...
  • Page 23  Ensure all sticks are centered and throttle is down. Now, click OK button.  Click on Flight Modes option and follow the instructions as given in the image below. Flight Mode 3 > Click on option At Hold.
  • Page 24  Now, click on Flight Mode 6 > select option Land. And then click on button Save Modes.  Click on Fail Safe option and click OK button for given Pop up message. Go to Radio > Select option Enabled always RTL. And lastly click on Option Flight Data.
  • Page 25  Now, disconnect the USB cable from the Ardupilot Flight Controller.  Connect battery with the battery connector of Quadcopter.  To connect the remote controller, long press the left knob...

  • Page 26: Troubleshooting

    towards right bottom direction until the red light stops blinking.  Now, your Quadcopter is ready to Fly. Troubleshooting  Soldering You should be sure that all your solder joints have the liquid silver look and are reliable. Bad solder joints may cause the FC, RX, ESC or Motor to lose power, prevent the signal from the fc to reach to the ESC or sbus signal from the RX reaching the FC.
  • Page 27 Check for proper connection between the ESC signal wires and the flight controller by following the flight controller motor order. When using 4in1 ESC double-check the wire order on the JSD- SH connectors, not all ESC/fc combinations have the same motor order.
