Summary of Contents for Oz-View SFW-001-E

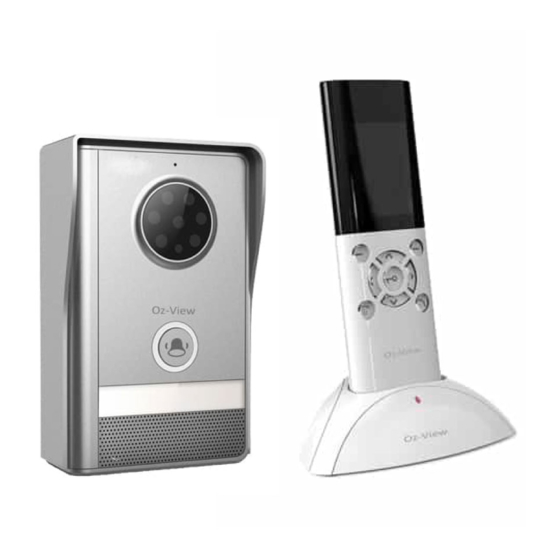

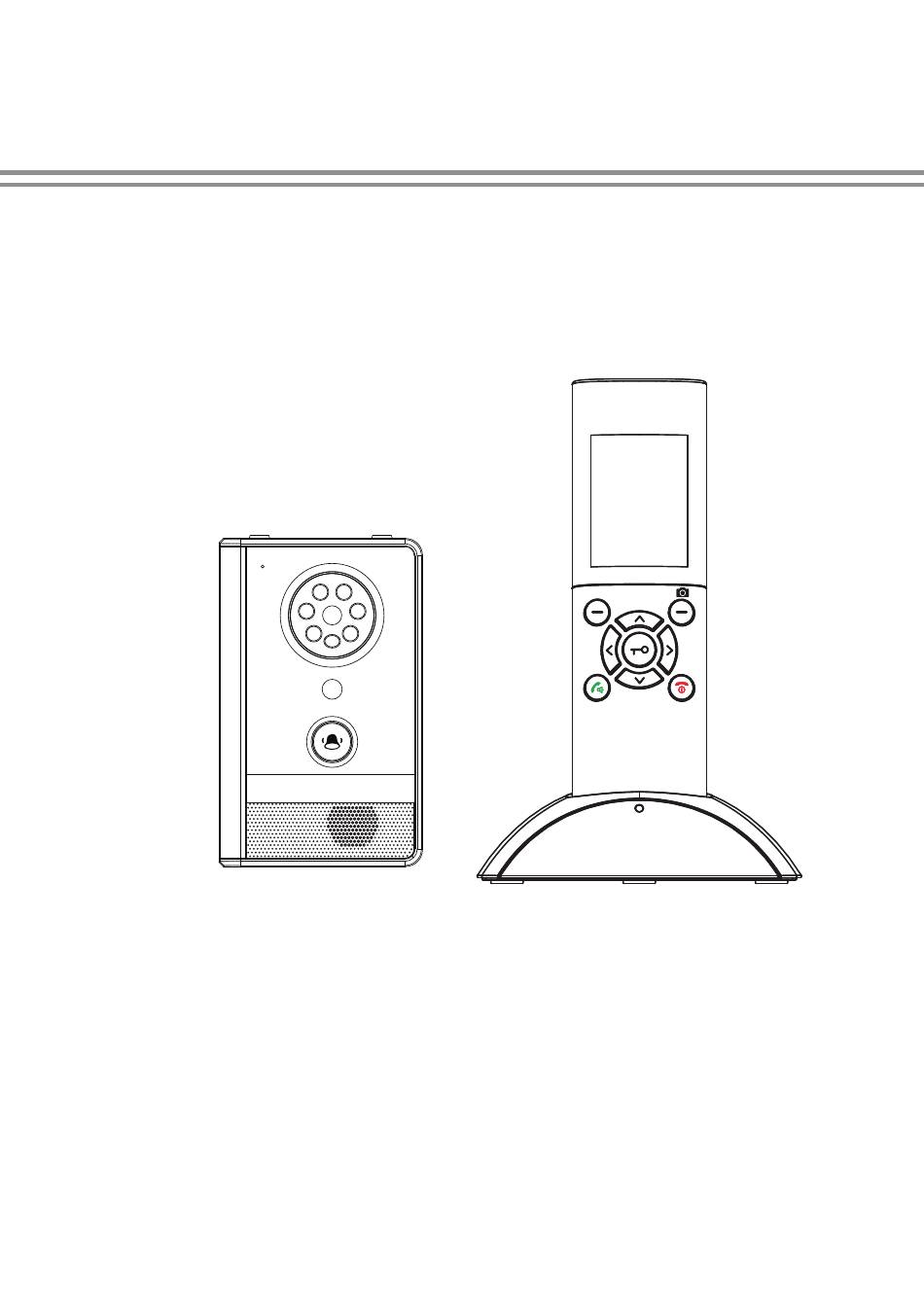

- Page 1 Wireless Digital Video Doorbell Wireless Digital Video Doorbell User’s Manual User’s Manual External Camera Indoor Handset SFW-001-E SFW-001-H...
- Page 3 Remark Please follow the user manual for correct installation and testing, if there is any doubt, please call our tech-supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra informing for any change. The illustration shown here only used for reference, if there is any difference please take the actual product as standard product.
-
Page 4: Table Of Contents
CATALOG Product Features............1 Package Contents ............2 Product Pictures ............3 Installing Batteries ...........4 Installation Instruction ..........5 Diagram ..............6 Settings..............8 Engineering Mode..........16 Operations..............18 Technical Parameters..........20 Notes ..............22... -
Page 5: Product Features
Product Features 2.4" TFT LCD display Video resolution: 320x240, with 15 frames per second Wide angle lens and LED for night vision Long standby door camera (battery or DC 12V) Waterproof door camera IP55 Microphone and speakerphone Basic video intercom, monitoring, remote unlock and anti-dismantle alarm feature Brightness and talk volume are adjustable Supports up to 2 door cameras and 2 indoor handsets Transmitting distance: with up to 500m range out of doors... -
Page 6: Package Contents
Wireless Digital Video Doorbell User’s Manual User’s Manual Model:D-R7 Model:D-R9 Model:K-R9 User's Manual Cable Cover External Camera SFW-001-E Power Adapter Screws (Optional, for PIR function,12V, 500mA) Parts of indoor handset Power Adapter Power Adapter Lithium Battery Charger Base (12V, 500mA) -
Page 7: Product Pictures
Product Pictures Door Camera Microphone LED Lights Camera Sensor Light PIR(Optional) Call Button Speaker Indoor Handset LCD Display Speaker Navigation Key Left Soft Key Right Soft Key Monitor/ Snapshot Accept Key Battery Power/ End Key Compartment Unlock Key/ Cover Charger LED Microphone Charging Pins Charger... -
Page 8: Installing Batteries
Installing Batteries Indoor Handset The rechargeable lithium battery (3.7V, 1100mA) come with your indoor handset. Install the battery before use. Lithium battery Protective cover Battery case Battery compartment cover 2. Insert new battery as indicated, matching correct polarity(+,-). 3. To replace the battery cover, slide the cover up until it snaps in place. Notes: 1. -
Page 9: Installation Instruction
Door Camera 1. Install two C size 1.5V batteries (not supplied) into the battery compartment or connect with DC 12V power adapter to turn on the door camera(PIR for the DC12V independent power supply). 2. Drill one screw to fix the battery cover up. Screw Battery cover Battery... -
Page 10: Diagram
Diagram Connection Mode 1 EX-BUT For normal open lock DC9-12V Lock DC power for Lock DC Power Supply The maximum output current of relay can be 1A BAT+ Door Camera Backup Power Connection Mode 2 EX-BUT For normal close lock DC9-12V Lock DC power... - Page 11 Door Camera 1. After wiring from the connection terminal, tense the cable. Drill the screws on the cable cover of the connection terminal. Screw Cable cover Cable 2. Choose a proper location for the door camera. Be sure to consider the average height of visitors.
-
Page 12: Settings
Installation Settings Turning On/ Off To turn on the indoor handset, press and hold To turn off the indoor handset, press and hold Power on the indoor handset, the system will enter into the following interface: 1 5 : 3 6 Note: When the battery power of indoor handset is insufficient, it will display an indication icon and warning tone. - Page 13 Chapter 1: Volume ________ This function allows you to adjust the volume (9 levels are adjustable) during a call. 1. Press Up or Down to choose “Volume” menu, then press beneath Select. 2. Press Left or Right to select the volume that you like. Each time you press Left or Right , the indoor handset sounds with the selected volume.
- Page 14 Note: Also, you can use Up or Down key to adjust the brightness in the standby mode. Chapter 3: Key Tone Every time you press a key, your indoor handset acknowledges it with a key tone. You can disable the key tones for a silent use. In certain error conditions, a warning tone will sound when an incorrect key is pressed.
- Page 15 1. Press Up or Down to choose “Ring Tone” menu, then press beneath Select. 2. Press Up or Down to select the ring tone that you like. Each time you press or Down , the indoor handset sounds with the selected volume. 3.
- Page 16 Chapter 6: Snap Show 001/100 2015-05-25 00:22 You can review or delete the recorded photos under this menu. The door camera’s number will also be displayed on the upper left of photo correspondingly. 1. Press Up or Down to choose “Snap Show” menu. 2.
- Page 17 1. Press Up or Down to choose “Date&Time” menu, then press beneath Select. 2. If you want to set the time, you can press Left or Right to choose the Hour or the Minute and press the Up or Down to adjust.
- Page 18 4. If you want to set the unlock time, you can press Up or Down to choose Unlock Time(1-9 seconds are selectable), and press Left or Right to adjust. 5. Press beneath Select to save the settings and return to the previous menu. Note: When there are two indoor handsets connected to one door camera, the setting of these two indoor handsets should be the same.
- Page 19 Chapter 11: Version 1.0.0 20150731 Press Up or Down to choose “Version” menu, then press beneath Select. You can check the software version in it. Chapter 12: Default set. This function allows you to reset the indoor handset to the factory default. Press Up or Down to choose “Default Set.”...
-
Page 20: Engineering Mode
Engineering Mode Register 1. Firstly, insert the small screw driver on “ ”position inside the battery case of door camera for 3 seconds. It will give an indication tone and the backlight of call button will lighten. Secondly, press beneath Menu on the indoor handset, select the Register menu, press Up or Down to choose one door camera (1-2 are selectable) that... - Page 21 √ 3. If you want to delete the registration, you can press beneath . The display will show" ?", press beneath√to confirm. Press beneath to return to the main interface. Notes: 1. The registration of door camera can be up to 60 seconds. 2.
-
Page 22: Operations
Operations Monitor About the monitor function , the LCD will automatically display the corresponding menu according to the registered door camera. 1. In the standby mode, press beneath Mon. 2. When registers one door camera, the indoor handset will directly enter into monitor mode. - Page 23 Notes: 1. The ringing time can be up to 15 seconds. 2. The conversation can be up to 45 seconds. After 45 seconds, the call will be disconnected automatically. Unlocking Basic Settings During conversation or monitor status, press button to unlock the door. Backlight 1.
-
Page 24: Technical Parameters
Technical Parameters Detail Item Door Camera Transmit Frequency Range 2.4GHz - 2.4835GHz 2.0Mbps Data Rate Transmitting Power 19dBm（TYP） GFSK Modulation Type Transmitting Distance(in open area) about 500m Color CMOS Image sensor Image Sensor Type Image Processing H.264 640 480 Camera Pixels Auto White Balance Viewing Angle (Diagonal) - Page 25 Technical Parameters Item Detail Indoor Handset Receiving Frequency Range 2.4GHz - 2.4835GHz Monitor 2.4” Color LCD 2Mbps Data Rate Receiving sensitivity -85dBm Demodulation Type GFSK 320X240(RGB) LCD Resolution Transmitting Power 19dBm（TYP） Power Requirement BL-5C, 3.7V ,1100mAh(lithium battery) Power Consumption 400mA Max Operating Temperature -10℃～+55℃...
-
Page 26: Notes
Notes Maintenance of devices 1. Keep the clearance of the surface and use soft dry cloth to clean the dust of the product. 2. Please turn off the power of indoor handset when clean the indoor handset. 3. If there is hard dirty which cannot be cleaned with dry cloth, please use the soft towel dipped in the neutral diluted detergent to clean the machine and then clear it with dry cloth.
