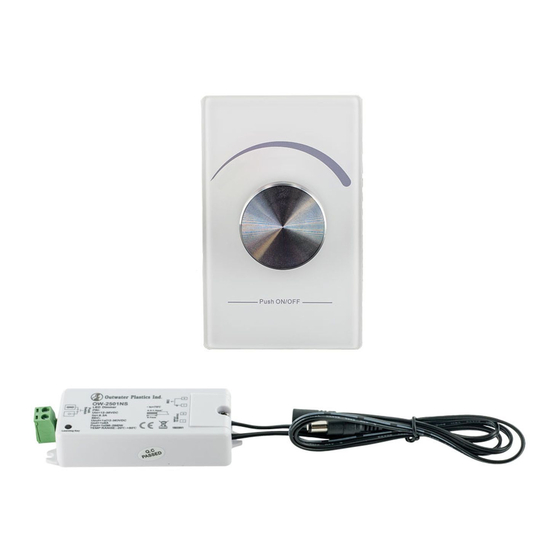

Instructions For RF-CTRL-SERIES Wireless Dimmers

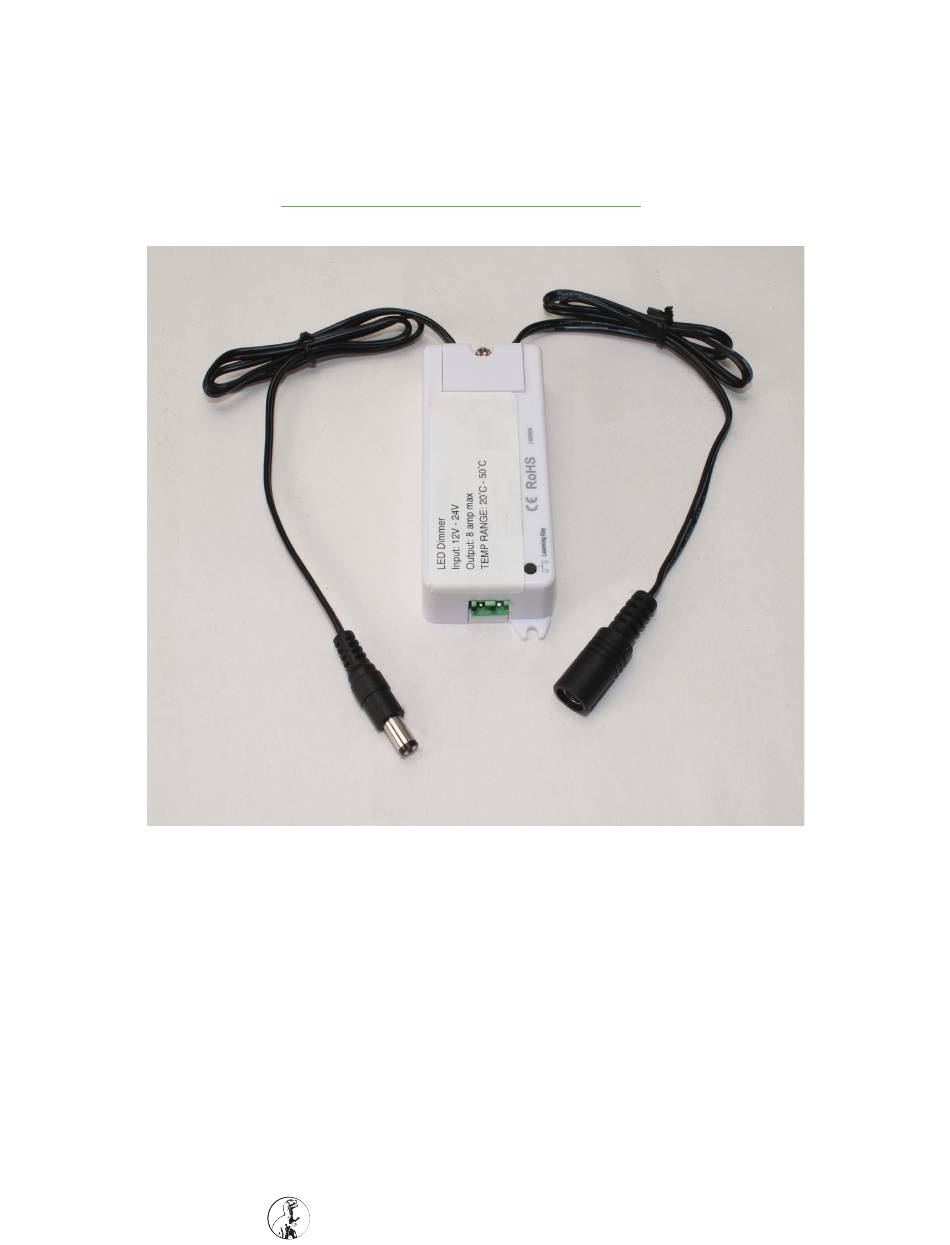

Step 1: Receiver Instructions
1. Connect either a 12V or 24V DC power supply to the
female input of transmitter (#1).
2. Connect the power linking cable to the male output
of transmitter (#2).
Please Note: The power linking cable is supplied when you purchase any
Outwater power supply (ex: LED-SLSHX-TR-1A) which will connect to the
output of the transmitter and to the input of the light (ex: LED-SLSHX-*)
#2
Outwater Plastics Industries Inc.
1-800-631-8375
•
#1
www.outwater.com
Advertisement
Summary of Contents for Outwater Plastics Industries RF-CTRL Series
- Page 1 Please Note: The power linking cable is supplied when you purchase any Outwater power supply (ex: LED-SLSHX-TR-1A) which will connect to the output of the transmitter and to the input of the light (ex: LED-SLSHX-*) Outwater Plastics Industries Inc. 1-800-631-8375 •...
- Page 2 Step 2: Press the learning key again on the receiver for 1 second. This will prepare the receiver to accept a controller. Step 3: Immediately following, press the button once on the controller. You should see your Learning Key lights blink once which means you are in control. Outwater Plastics Industries Inc. 1-800-631-8375 • www.outwater.com Code: RF-CTRL...
