Summary of Contents for MAX LIGHTING ML-1319

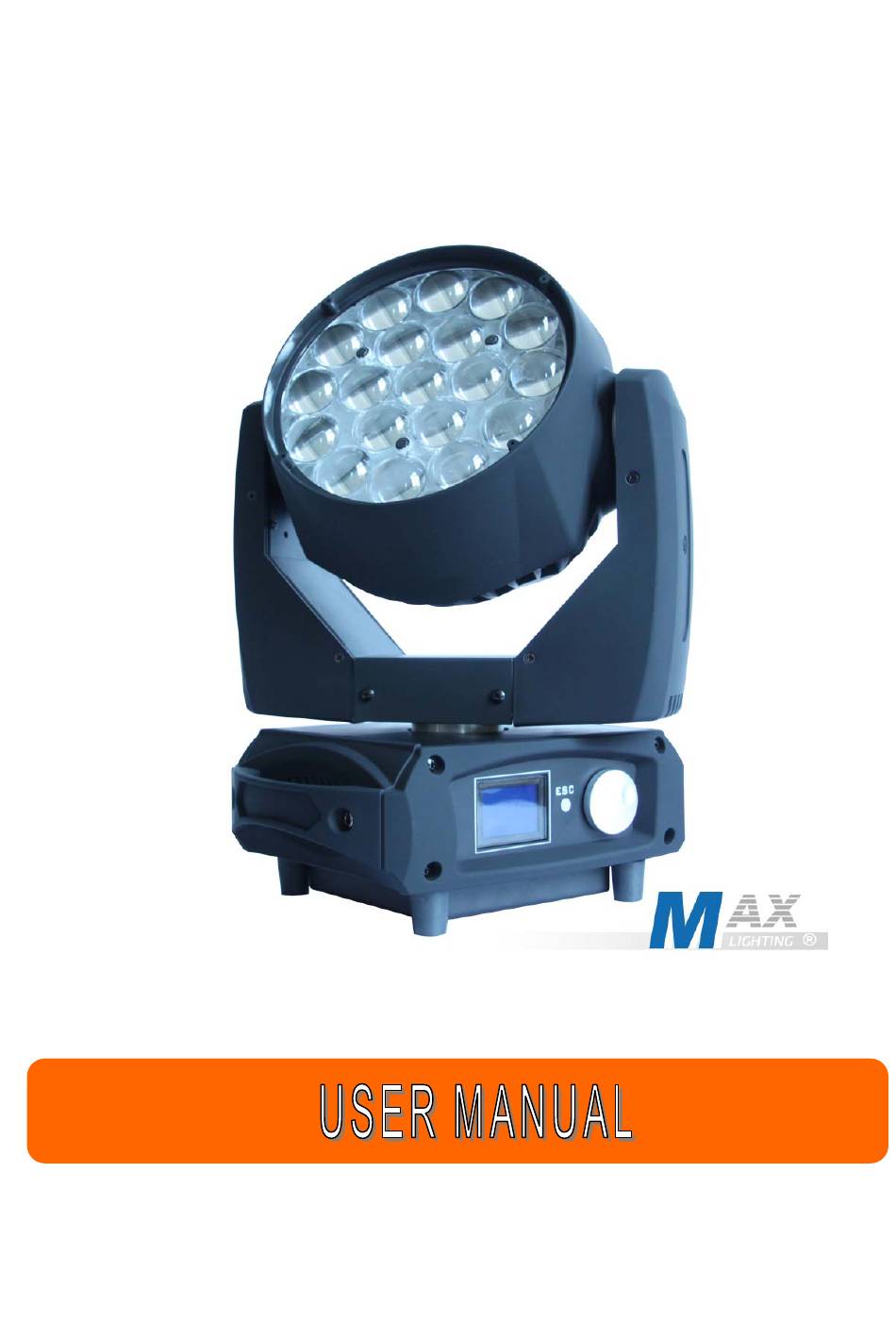

- Page 1 Zoom Moving Head (19LED*40w) Model : ML-1319...
-
Page 2: Table Of Contents
CONTENTS 1. Open the box and checking ..................2 2. Safety Introduction ....................2 3. Installation ........................ 4 3.1 Connection to the mains .................. 4 3.2 Rigging the fixture .................... 4 4. CONTROL PANEL ....................6 5. Functions of the buttons - Using the menu ............... 7 6. -
Page 3: Open The Box And Checking
1. Open the box and checking Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using information of this products. Please according to this manual's relative speaking when using this equipment. - Page 4 Do not shake the fixture. Avoid brute force when installing or operating the fixture. This fixture was designed for indoor use only, do not expose this unit to rain or use near water. When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat, moisture or dust.
-
Page 5: Installation
3. Installation CAUTION! Fixtures must be installed by a Qualified electrician in accordance with all national and local electrical and construction codes and regulation. 3.1 Connection to the mains For protection from electric shock, the fixture must be earthed! The LED COLOR ZOOM 300 is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power source from 100-240 Volts. - Page 6 The fixture should be installed outside areas where persons may walk by or be seated. IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the projector. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger.
-
Page 7: Control Panel
4. CONTROL PANEL The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. -
Page 8: Functions Of The Buttons - Using The Menu
The address can also be set with the projector switched off. Setting the address: 5. Functions of the buttons - Using the menu "RNS"—Encoder wheel moves between menu items on the same level, scrolls between values . "ESC"—Button-leaves menu without saving changes "ENTER"—button enters menu, comfirms adjusted values and leaves menu. -
Page 9: Menu Setting V1.0
6. MENU SETTING v1.0 Fixture Address DMX Address 001----512 Display Permanent On (ON/Off) Display Intensity (1..10) Display Adjusting Display Backlight (1..5..10) Display turned (On/Off) Ch.1 Mode 1 Ch.24 Set Active Ch.1 DMX Presetting Mode 2 Ch.20 Set Active Ch.1 Mode 3 Ch.16 Set Active Pan Reverse(On,Off) - Page 10 DMX Values Ch32 Pan (0-255) Tilt Mode 1 Zoom Test sequences Focus Run Test Program Mode 2 Run Test Program Pan (0-255) Manual Effect Control Manual Mode Dimmer fine(0-255) Program1 Program2 Program3 Step1~Step99 Pan (0-255) Dimmer fine (0-255) Editing Program Edit Steps Step Time (0.1-25.5s)
-
Page 11: Dmx Protocol V1.0
7. DMX protocol v1.0 Model Channel Value Founction Shutter/Strobe 0-31 Shutter closed 32-63 Strobe effect from slow--> fast 64-95 Strobe effect from slow--> fast (All zones together) 96-111 Zone effects+rainbow effects speed control, slow--> fast 112-127 Zone effects+rainbow effects speed control, fast--> slow 128-143 Opening pulses in sequences from slow-->... - Page 12 90-99 Theatre mode On 100-109 Theatre mode Off Reserved 110-139 To activate following reset function, stop in DMX value for at least 3 sec. 140-149 Pan/Tilt reset 150-179 Reserved 180-189 Zoom reset 190-199 Reserved 200-209 Total reset 210-255 Reserved Beam RGBW Virtual Colour Wheel For detailed description see "...
- Page 13 0-255 Blue LEDs saturation control (0-100%) 0-255 Fine blue LEDs saturation control - all zones Beam White /White fine 0-255 White LEDs saturation control (0-100%) 0-255 Fine white LEDs saturation control - zone 1 Beam Red /Red fine 0-255 Red LEDs saturation control (0-100%) 0-255 Fine red LEDs saturation control Beam Green /Green fine -...
- Page 14 White 3200 K White 4200 K 10~12 White 5600 K 13-15 White 8000 K Blue (Blue=full, Red+Green) 17-55 Red=0, Green->up,Blue =full Light Blue (Red=0, Green=full, Blue =full) 57-95 Red=0, Green=full, Blue->down Green (Red=0, Green=full, Blue =0) 97-134 Red->up, Green=full, Blue=0 Yellow (Red=full, Green=full, Blue=0) 136-174 Red=full, Green->down, Blue=0...
-
Page 15: Technical Information
8. TECHNICAL INFORMATION AC power: 100-240 V nominal, 50/60 Hz Maximum total power consumption: 1020 W Light source: Osram high-power LED emitters Beam color mixing: RGBW Aura color mixing: RGB lumens (zoom at maximum) 11000 Total output: Minimum LED lifetime: 60 000 hours (to >70% luminous output) Control: DMX, protocol modes 24/20/16 3-editable programs, each up to 100 steps RDM: Implemented... -
Page 16: Maintenance And Cleaning
9. Maintenance and cleaning CAUTION! Disconnect from the mains before starting any maintenance work It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture. Otherwise, the fixture‘s light-output will be significantly reduced.
