MEGABAY Viento VE5 Installation Sheet

Viento
Step 1
READ ALL SAFETY INSTRUCTIONS FIRST
• Follow instructions carefully,
failure to do so will void warranty.
• Ensure installation complies with local law
and applicable standards.
• Input Voltage Range 40 - 55Vdc
Step 2
100 - 240V ac
mains power
OUTPUT
DMX terminator
48V PSU with QUICK CONNECT INTERFACE
ITEM WATTS
320W
320W
320 watts
240W
240 watts
150W 150 watts
60W 60 watts
POWER SUPPLY TO LUMINAIRE TABLE
48V Optimo High Performance IP67 Power Supply Units
can power the maximum number of luminaries
VE5 - 500mm
48V Optimo
Power Supply
15W
MLE-OM-48V-320W 18
MLE-OM-48V-240W 12
MLE-OM-48V-150W 7
MLE-OM-48V-60W 3
Megabay 12- 14 Industrial Avenue Caloundra Qld 4551 Australia
Megabay reserves the right change this product at any time without prior notice and such modifications shall be
INTERIOR + EXTERIOR

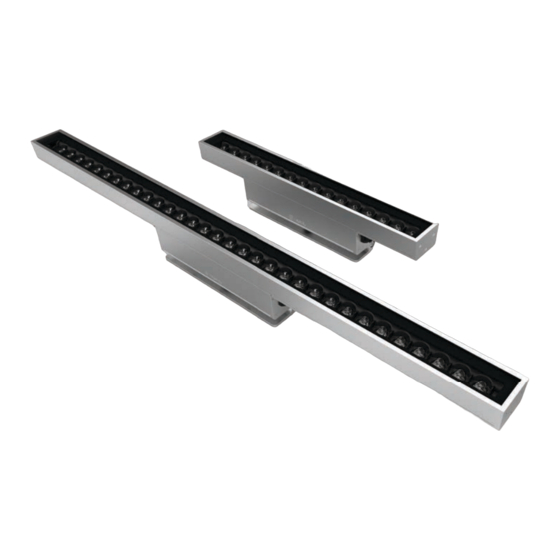

ARCHITECTURAL LINEAR LED PROJECTOR
INSTALLATION SHEET
DMX Lighting Maximum number of 32 fixtures in series when using DMX control
Control System
1000mm
1000mm
0.8m cable
CONTROL
DMX
NDM no dimming
DMX DMX
VE10 - 1000mm
30W 25W 50W
9 11 5
6 8 4
3 5 2
1 2 1
• Only use a Megabay Optimo power supply unit
and Quick Connect cabling.
• Ensure mains input power is surge protected.
• Never make connections whilst the power is connected.
• Do not make modifications or alter the product.
• Keep luminaire clean and free of debris.
DMX ONLY
1000mm 500mm
1000mm 500mm
0.6m cable
QUICK CONNECT CABLE
ITEM LENGTH
0.6M
300mm 0.3M
600mm 0.6M
800mm 0.8M
1 metre 1M
2 metres 2M
5 metres 5M
10 metres
10M
20 metres
20M
50 metres
50M
Distributed in Qld by
500mm
500mm
0.3m cable
DMX TERMINATOR
ITEM
For DMX control only,
remove the END CAP and
use the terminator on the
end of the last fixture.
www.megabay.com
Edition 3
1 / 3
