- Page 1 RFID INTERFACES Documentation POCKETwork ® RFID read write unit HF or UHF RFID read write unit with Bluetooth(TM) interface 13.56 MHz closed coupling RFID microsensys 2014...
- Page 2 © microsensys GmbH Any reproduction of this manual in whole or in part, the storage in electronic media and the translation into foreign languages without the written permission of microsensys GmbH is forbidden. All rights reserved Site 2 of 28...
-
Page 3: Table Of Contents
Table of contents Introduction Device alternatives Method of operation Handling Display Modes of operation Operation mode Setting up a Bluetooth connection Reading the COM port Software DEMOsoft ® TELID soft ® CONNECTIONtool ® INTERFACE config tool ® MPCdataload Resetting the settings Order information DOC-iID-POCKETwork-02E.docx Site 3 of 28... -
Page 4: Introduction
Parameterization: configure your POCKET according to your wishes Host-connection: You can use the latest energy-saving Bluetooth Technology with clean connection management Drivers and tools: You can still work with your usual microsensys software environment Battery: use a lithium-ion battery of the latest technology and... -
Page 5: Device Alternatives
Industrial performance: operate your RFID applications in industrial environments Device alternatives HF standard HF LEGIC UHF EU-Band UHF closed coupling Antenna P07 or K3 P07U P07U ISO-Standard ISO 15693 ISO 15693 ISO18000-6 Type 3 (EPC C1 G2) ISO 14443 ISO 14443 ISO 18000-3 RF LEGIC... -
Page 6: Method Of Operation
To operate LEGIC transponders, a special device version is available. For the actual transponder communication, microsensys offers its RFID ® driver iID engine driver, and demo applications, keyboard-emulation and other tools. -
Page 7: Handling

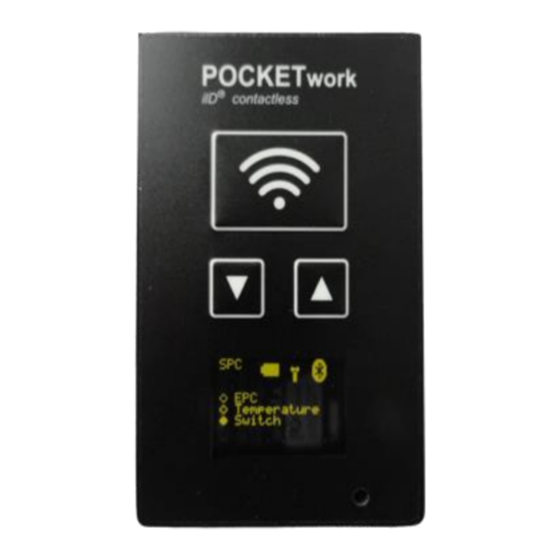

Handling Before the POCKET can be used, it must be ensured that the battery is sufficiently charged. Below the controls and other components of the device are shown: Planar and/or focusing RFID-Antenna (3) SCAN-Button / OK (1) Function Button F1 ON-/OFF-Button (2) Function Button Micro-USB... -
Page 8: Display
Display The iID ® POCKETwork equipped has a graphic display. You get status information about the device itself in the top line of display. Structure of the status bar (left to right): Operation mode State of charge Antenna icon Bluetooth icon Description of symbols: Symbol Description... - Page 9 POCKET. The following table shows the possible actions with the corresponding indications on the display according to the factory setting: Action Indications on the display Press the button (1) to turn microsensys-logo on the POCKET Mode (DOC or SPC) Frequency (HF or UHF) Serial number...
-
Page 10: Modes Of Operation
Modes of operation ® The iID POCKETwork can be operated in two modes DOC and SPC. The DOC mode generally requires a host device; this can be a PC, tablet PC, laptop or even a mobile phone. The POCKET is connected to the host here via Bluetooth or USB cable. - Page 11 The script files are provided by microsensys and can be downloaded to the device by the customer using ® the iID INTERFACE Config Tool. Details on how the script files are ® downloaded to the device are given in the section "iID INTERFACE Config Tool".
-
Page 12: Operation Mode
The activation of POCKET from the flight mode is done by pressing the button (1) and is signalled through the indication of the microsensys - Logo on the display. After releasing the button, the logo goes away and on the top half of the screen, the status bar is displayed. -
Page 13: Setting Up A Bluetooth Connection
Setting up a Bluetooth connection In PC settings, select "Devices". Turn the POCKET on and start searching for Bluetooth devices by clicking on "Add Device". ® Choose from the list of available Bluetooth devices, the entry "iID POCKETwork". DOC-iID-POCKETwork-02E.docx Site 13 of 28... - Page 14 You will now be prompted to enter the Bluetooth PIN. It reads in the delivered condition of POCKET "1111". Confirm this with "Continue". The Bluetooth connection with the POCKET is now established. Site 14 of 28...
-
Page 15: Reading The Com Port
Reading the COM port The COM port is the interface through which you can communicate with the POCKET from the software side in some cases, you need to know which COM port has been occupied by the POCKET. To find out which port has the POCKET occupied, select on the desktop "Bluetooth-device"... -
Page 16: Software
For this purpose, you can contact the microsensys support. ® CONNECTIONtool With this program, you can easily set up the connection from microsensys read / write devices to your PC. Once the connection is established, you can use any other software. ®... - Page 17 Connection management o Configuring the Bluetooth connection mode and MAC address, profile numbers etc. for client mode To configure the POCKETwork please connect it via Bluetooth or USB ® cable to your PC, using Reader Connection Tool. Now start the iID Interface config tool.
- Page 18 In this dialog you can set the display brightness, the display time of the status of the TAG-operation and various timeouts. "Response after Shutdown" determines whether the POCKET enters standby mode or flight mode after disconnecting the Bluetooth connection. Configuration of the connection management: This dialog is used to set the Bluetooth-specific parameters.
- Page 19 By confirming the parameter selection in the current dialog, the parameter set is transferred to the POCKET and you return to the home page of the application. Configuration of the script management: In the script configuration menu you can switch between the modes DOC and SPC mode.
-
Page 20: Iid ® Mpcdataload
In the next window you can specify the directory in which you saved your scripts. Then all available scripts are displayed. In the description field a brief description of the selected script is displayed. Select the desired script and confirm the selection with "OK". This takes you back to the window script configuration. - Page 21 Read data If you press the button "Load DataSets" in the main window, the reading process starts. In the bottom status bar, the progress of the operation is displayed. Once the reading is completed, the data sets are displayed. By pressing the save button the data sets are stored as an XML file.
-
Page 22: Resetting The Settings
Resetting the settings If the POCKET is configured for the client mode, it may be necessary to reset it back into the server mode. This is the case when the POCKET should be assigned to a new host device. Resetting the Bluetooth mode may also be required if the internal memory for "trusted devices"... -
Page 23: Order Information
Order information Below you will find order information of iID ® POCKETwork. Product Product Code Note POCKETwork standard 72.62.710.00 Pocket Read/Write Unit with RTC, MEM, BT, USB, Li accu Display: OLED Matrix 96 x 64 Buttons: SCAN, F1, F2 System: iID3000, ISO 15693, 14443, all customized Antenna: P1333 Operation Mode: SPC (DOC,MPC) - Page 24 Product Product Code Note POCKETwork UHF 41.22.800.00 Pocket Read/Write Unit with RTC, MEM, BT, USB, Li accu Display: OLED Matrix 96 x 64 Buttons: SCAN, F1, F2 System: iID4000, ISO 18000-6c, all customized Antenna: CA1015 Operation Mode: DOC Package: 54x86x10 mm³ POCKETwork UHFcc 41.12.800.00 Pocket Read/Write Unit with RTC,...
- Page 25 Your Notes ____________________________________________________________ DOC-iID-POCKETwork-02E.docx Site 25 of 28...
- Page 26 Your Notes ____________________________________________________________ Site 26 of 28...
- Page 27 Your Notes ____________________________________________________________ DOC-iID-POCKETwork-02E.docx Site 27 of 28...
- Page 28 Site 28 of 28...
