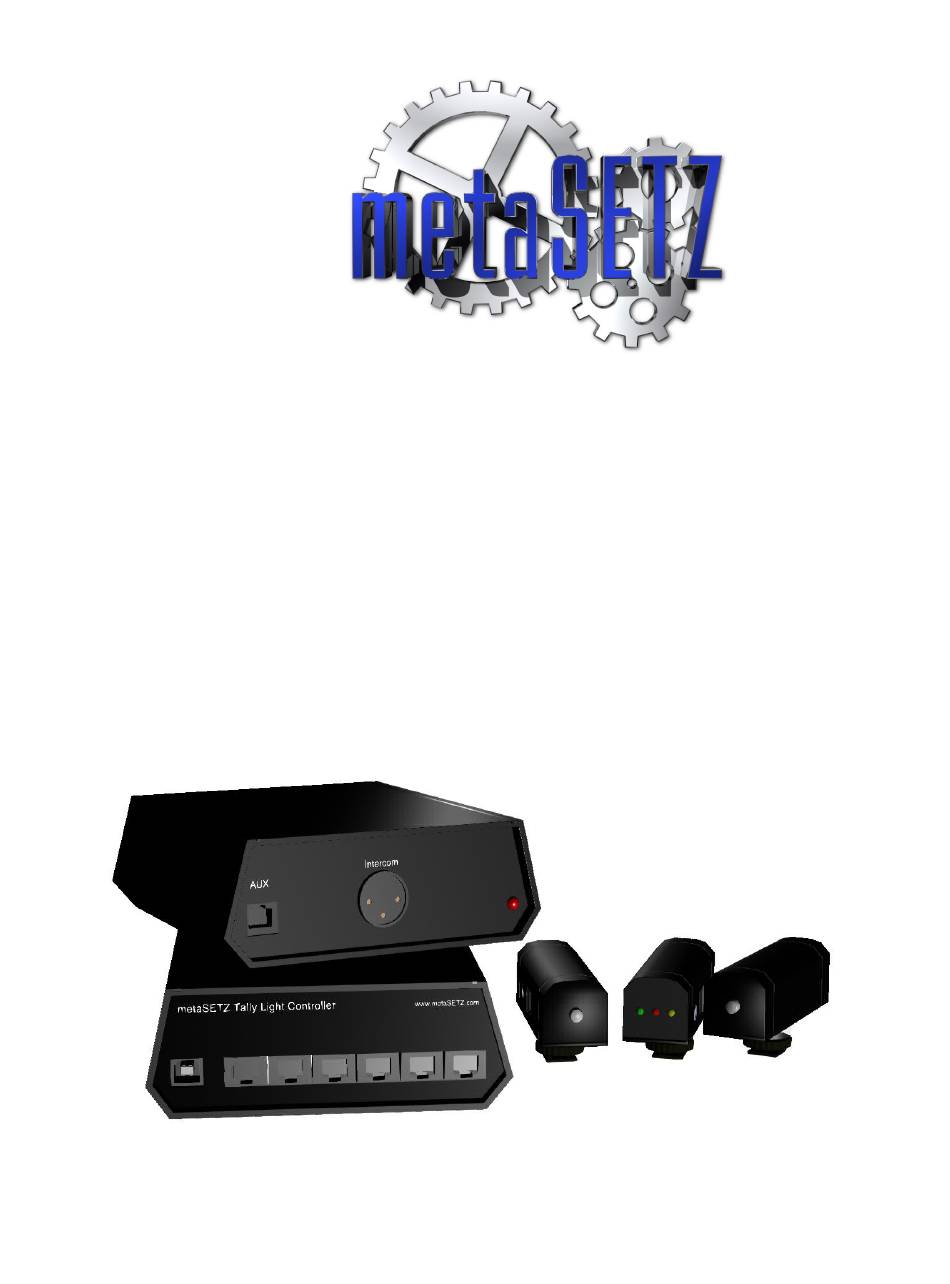

- Page 1 TLC-6S Tally Controller Preliminary...
- Page 3 Setting the Tally / Contact Closure Jumpers Each output has two jumpers that set whether the contact closure or Intercom pass-through is active for that output The jumpers are clearly labeled, just be sure to move both jumpers if you need to make any changes. Improper jumper settings may damage the TLC-6, tally lights or connected intercom equipment.
- Page 4 Using Contact Closure with a CCU (Camera Control Unit) Each of the six output jacks on the TLC-6 have connections for up to four LEDs plus two contact closure connections. The contact closures can be connected to most CCUs and other devices (monitors etc.) that have tally input connections. Because of the vast array of connectors used on CCUs we don't provide cables for this so you will need to have these made locally.
- Page 5 Using the Intercom Pass Through Connection If you are not using the contact closure on a particular output you can configure jumpers on the main circuit board to use those connections on the RJ-45 output jack to either pass through standard “two wire” intercom signals or feed audio out to your camera position over the same twisted pair cable that carries the tally signals Connect an intercom belt pack or master station to the xlr on the TLC-6 then use...
- Page 6 If you are driving multiple headphones you may need a dedicated headphone amp to provide enough signal without distortion.
- Page 7 TLC-6 Wiring Diagrams If you need to make cables to do custom connections the RJ-45 connectors on the TLC-6 are wired like this: Aux Connector...
