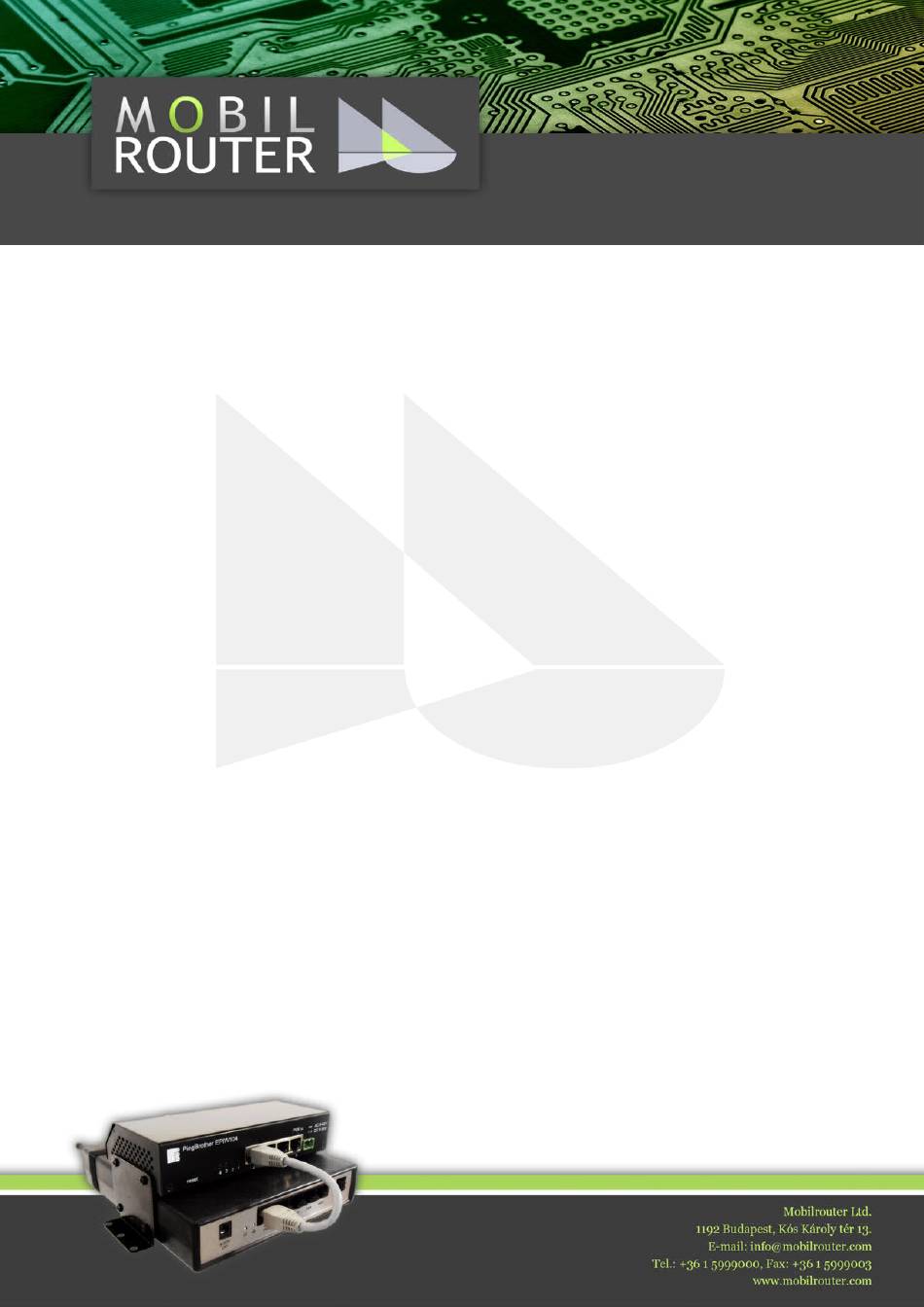

MOBILROUTER
Quick Setup Guide
When developing our MOBILROUTER product line our main goal was to
create devices that are easy to be installed and managed.
The manual describes the most important steps and functionalities giving
you all the knowledge you need to have in order to be able to successfully
install and manage the product you purchased.
Ver. 1.0 - 2013. feb.
Advertisement
Table of Contents

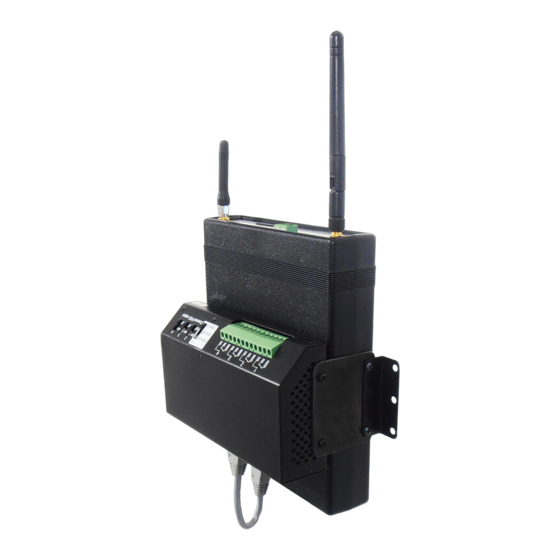

Summary of Contents for MOBILROUTER GTRP106
- Page 1 MOBILROUTER Quick Setup Guide When developing our MOBILROUTER product line our main goal was to create devices that are easy to be installed and managed. The manual describes the most important steps and functionalities giving you all the knowledge you need to have in order to be able to successfully install and manage the product you purchased.
-
Page 2: Table Of Contents
Table of contents Registration ..............................4 The admin interface of MOBILROUTER......................4 1.1. Creating user account ............................4 1.2. Administration - add a router to the user account ..................4 Entering the user admin interface ........................4 2.1. Adding a router ..............................4 2.2. - Page 3 PingBrother POE switch Settings ........................11 5.3. General information on PingBrother switches ....................11 5.3.1. IP settings of the PingBrother switches......................12 5.3.2. Settings of the switches ..........................12 5.3.3. 5.3.3.1. Temperature ..............................12 5.3.3.2. LOG ................................13 5.3.3.3. Settings ................................13 5.3.3.4.
-
Page 4: Registration
1. Registration 1.1. The MOBILROUTER products are industrial VPN routers developed for remote management. Their management - settings and monitoring- is done on a password protected admin interface created for the routers on www.mobilrouter.com.. 1.2. The admin right of the routers is attached to user accounts. The first step is to create a user account on www.mobilrouter.com... -
Page 5: Handling Of Identification Data
3. Connecting to the VPN server 3.1. The members of the MOBILROUTER family have been optimized to be fully managed remotely in order to avoid having to physically go to the device to implement any configuration change. -
Page 6: Handling Of Sim Card Pin Code
MOBILROUTER devices. The PIN code protection needs to be disabled if it applies. This can easily be done before using it for a MOBILROUTER device by placing it into a mobile phone that is unlocked or attached to the given service provider’s network and deactivate the PIN code function under the security settings. -
Page 7: Apn Settings Via Sms Sending
3.3.5.3. APN setting via sending sms: If you are unable to connect your router to the admin interface via wired internet connection, sending an sms can be the alternative you can opt for. If choosing this method, send an sms to the SIM card used for MOBILROUTER with the following content. ’APN: serviceproviderapnsettings’, for example: „APN: internet”. - Page 8 Figure 5...
-
Page 9: Right Hand Side Settings Panel
PingBrother PO switches: name, status, parameters and the edit button. This section is optional appearing only if the given router is connected to a PingBrother switch. This applies to the following routers: GTRP106, GTRPO106. These integrate PingBrother 104POE switch. •... -
Page 10: Map
3.3.5.2. 5.2.5. IP settings MOBILROUTER automatically allocates internal IPs to the dynamic IP devices connected to it. These cannot be changed as the allocation of the user defined public accesses are attached to them. If the user wants to connect his devices that belong to his own internal IP to the... -
Page 11: Interface Settings
5.3. The settings of PingBrother POE switches 5.3.1. General information on PingBrother switches: The central admin interface attached to the MOBILROUTER products is able to remotely manage PingBrother POE switches. This is extended functionality and service level and therefore some of our MOBILROUTER products are distributed with these hardware components integrated. -
Page 12: Ip Settings Of The Pingbrother Switches
2-9. For example: If you want to connect an additional POE switch to a GTRP106 router with product number 101167, and internal IPv4 address 10.100.101.167, the IP address of the new switch should be between 10.101.167.3-10.101.167.10, subnet mask: 255.255.255.0, gateway... -
Page 13: Log
Figure 9 5.3.3.2. LOG The diary of the monitored events set in the POE switch and the automatic reactions to them can be seen here. 5.3.3.3. Settings The POE switch and the names of their output channels can be modified here. With the help of this the exact role and function of the device can be reviewed on the user interface. -
Page 14: Deleting A Pingbrother
5.4. Settings of connected IP devices 5.4.1. Connecting IP devices It was an important goal when developing the MOBILROUTER system that installing the products should be quick, easy and cost-effective. Therefore what you should do is easy: the IP device that you want to remotely manage should be set to dynamic (DHCP client) configuration and connected to MOBILROUTER or to the PingBrother switch attached to it. -
Page 15: Settings Of Connected Ip Devices
DVR the device has a url through which the live image can be ’stolen’ from the device, which appears under the menu bar in edit mode on the admin interface so the identification process gets easier. Figure 10 5.4.4.2. Port Forward By defining these settings your IP devices connected to MOBILROUTER will be... -
Page 16: Status Alerts
accessable to be remotely managed from anywhere. The ports necessary to operate the given devices can be defined by clicking on ’new port’ under the ’add port’ tab. You enter the number of the port in the input field and choose the right value under ’type’ (TCP or UDP).
