ODDLOOPS TWS-T3X Instruction Manual

1.Thank you for choosing ODDLOOPS TWS-T3X, and we hope you will be satisfied!
Enjoy it!
Before the first use, please fully charge the battery by placing the headphones inside
the box. Please remove the insulation sticker from the earbuds, and put them back
into the charging box.

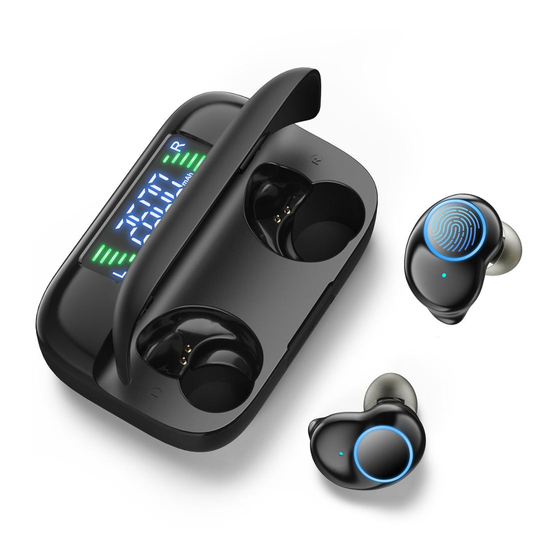

2. Components of the Product

Led indicator
Earbud (auxiliary) left
Earbud (Main) Right
Microphone
Touch button
Charging box
Put the headphones inside the charging box for activating automatically, the LCD
light will be off in 12s; when the charging completed, the LCD light will be off in 12s.
Charging port
Type-C USB charging port
USB port (for reverse charging to the mobile phone)

3. Operating Instructions

3.1. Battery box charging

When charging the box with Type-C cable, the LCD screen will be light on. It will be
off after 12s and the charging status keep on.

3.2. Earbuds charging

When charging the earbuds, please place them inside the charging case, the charging
will be activated automatically; the LCD screen will be light on and will be off after
12s,the earbuds indicator light will keep on during charging.
3.3. Connection of the two earbuds.
a. First time connection: take out the two earbuds from the box.
b. Turn on the Bluetooth of your smart phone or other devices with Bluetooth,
search "T3X" and connect it.
c. The second time connection: Open the Bluetooth of the smart phone or other
Bluetooth devices, take out the headphones( dual or single) from the charging box,
the earbuds will connect with Bluetooth device which already connected the first
time automatically.
Note: if you can not connect successfully within 5 minutes, it will turn off
automatically.
3.4 Reset
Put the earbuds into the charging box (make sure charging box with power). Keep
touching the earbuds for 10s until the indicator flash quickly,reset successed now.

4. Methods of use

4.1. Proper wear method:
The "L" is for left earbud, the "R"is for right earbud.
