Summary of Contents for Lark-Wi Smart Keypad Deadbolt

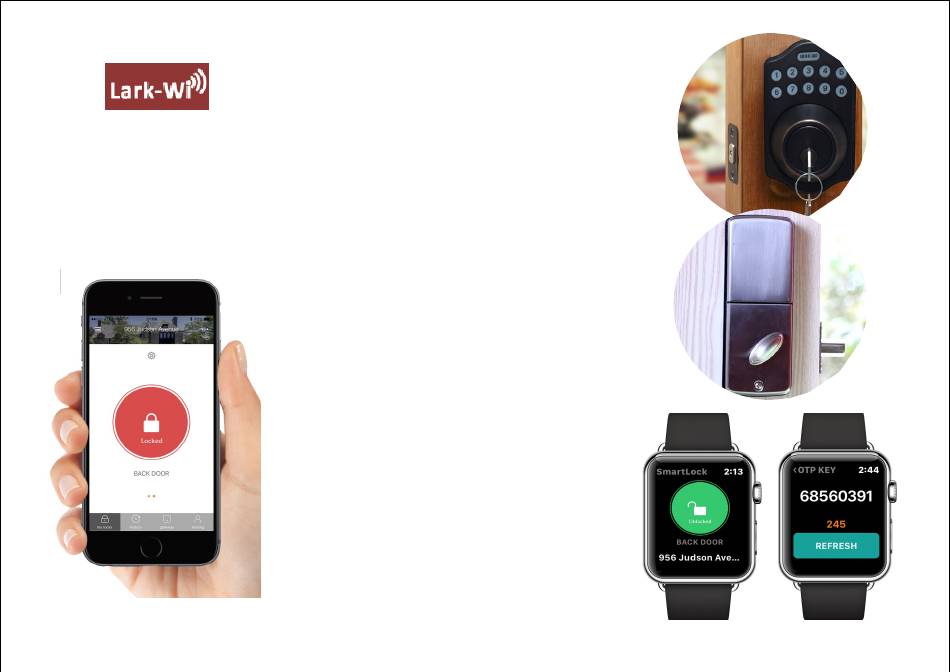

- Page 1 Smart Keypad Deadbolt Let’s get started! Need help? We’re here for you. Visit us online at www.lark-wi.com/support Email us at support@lark-wi.com www.lark-wi.com/support...
-
Page 2: What's In The Box
What’s in the box... - Page 3 What you’ll need... Lark-Wi is designed to use wireless to communicate with your phone. Your phone will then communicate with the server using the cellular or data connection on the device. Your authorized smart phone will need to have internet connection - either wireless or cellular data - to operate the lock.
-
Page 4: Easy Install
Easy Install Mark The Door With Template Select the height and backset as desired on the door face ; use the TEMPLATE as an indi- cation to mark the center of the circle on the door face and the center of the door edge. Drill Holes Using the marks as a guide to drill a hole Ø2-1/8”... - Page 5 Easy Install Install Latch a) Insert the latch and ensure it is paralleled to the door face. Mark the outline of the faceplate, then take out the latch. b) Chisel 1/8” (3mm) deep along the outline to allow the faceplate to be aligned with the door edge. c) Insert the latch and tighten it with screws.
- Page 6 Easy Install Install Keypad Assembly a) Ensure the latch bolt must be retracted. b) Please refer to the diagram below for Cylinder Installation. Place deadbolt against keypad with tailpiece in horizontal position inserted through hub of the latch. c) Pass the IC wire under the latch to the interior side of the door.
- Page 7 Easy Install Install Inside Mounting Plate Pass the IC wire through the wire hole of the mounting plate. Fix the mounting plate with screws. If outside lock assembly is lopsided, please loosen the screws to adjust it's position and tighten the screws again. Install receiver module Connect the IC wire and ensure the tailpiece is engaged with turn piece, then attach receiver module to the door with screws.
- Page 8 Prepare Adjusting Turn Piece Turn the turn piece to left for 45 degrees when it's right-handed door. Turn the turn piece to right for 45 degrees when it's left handed door. Batteries Installation Remove the battery cover (push it up and pull it out). Insert 4 (AA) 1.5V alkaline batteries and put the battery cover back to the receiver module.
- Page 9 Prepare Download the Lark-Wi app. Download the lark-wi app from apple store : Search Apple Store, used Keywords: Lark-Wi , Then select: Lark-Wi When using your smartphone to lock and unlock the door, make sure the smartphone is on, Bluetooth is enabled, and the Lark-Wi app is running.
-
Page 10: Create An Account
1、Open the Lark-Wi app, Select GET STARTING . 2、You can read the Lark-Wi Privacy Policy, Terms of Service and End User License Agreement by tapping the link at the bottom of the screen. When you are ready to continue, tap I Agree. - Page 11 ○ ○ ○ 5、Take a profile photo or upload one from your phone. Profile photos help Lark-Wi users verify each others’ identities when inviting and managing access. 6、Select the phone number for your country. 7、For example, you can search for a US mobile phone code of 1 8、If you see a prompt that your region does not support SMS authentication, you only need to use e-mail to register your account,...
- Page 12 Create an Account use e-mail (Step 9-12) Follow the instructions inside the app to create an account, enroll register with your smartphone first . 9、Enter the email address you'd like to use for your account. Again, it’s important to use your real email address. 10、Enter the e-mail, click Next, we will send a verification code to the input of your mailbox, you may need to wait a few minutes, your mailbox will receive the 6-bit verification code;...
- Page 13 1、Make sure your smart lock is in the reset state, or you just reset your smart lock , than Tap Set Up a Lock. 2、Read the Instructions and Tap Start Setup. The Lark-Wi App Will Begin Scanning For Your Lock. If no locks found: Reset - Press for more than 15 seconds and hear the music.
- Page 14 Set up a lock Step 2 4、Choose a Name for Your Lock. 5、You Can Add the Lock to an Existing House, or Add a New House. 6、The App is Scanning For Your Lock, tap continue. ○ ○ ○...
- Page 15 Set up a lock Step 3 7、Beginning the Calibration Process. Follow the Onscreen Instructions Rotate Your Lock to Unlock 8、tap continue. 9、Tap the Green Circle to Test Your Lock, Your Lock is Ready to Use. ○ ○ ○...
- Page 16 Control My Lock With Lark-Wi App The Lark-Wi Smart Lock is simple to use. Approach your door and open the Lark-Wi app in your smartphone. The red circle indicates that your door is locked. Tap the red circle to unlock your door.
-
Page 17: Activity Feed
Activity Feed If you are an owner of an Lark-Wi Smart Lock, you’ll notice an “history” tab in the Home area of the Lark-Wi app. This opens the Lark-Wi Activity Feed screen. The Activity Feed shows all of the Lark-Wi Ac- tivity events in your house, with the most recent event showing at the top. -
Page 18: Lock Settings
Lock Settings Tap the Setting Gear Icon Above the Lock Circle. In the Lock Settings: Change My Lock Name. Enable/Disable Lock Sounds. Enable Auto-Lock . Find My Lock's Serial Number. Delete My Lock. Calibration. Updating Lock Firmware. - Page 19 Send an invite With Lark-Wi Smart Lock you can choose family, friends, or services from your contacts and issue them keys in seconds. Simply send each guest an invitation to download the app. After doing so, they will have instant access to your home based on the access levels you set.
- Page 20 Send an invite 2 4、Select the sharing Icon on the lower right. Select Invite to add a guest. 5、Invite Your Guest By Entering Their Phone Number, or Their Email, or Selecting Them From Your Contact List. 6、Press Send Invite after selecting your invite option. 7、Your guest will now be listed in your Guest List.
-
Page 21: The Access Levels
The access levels... - Page 22 Sign Out 1、Tap the Menu Icon on the Upper Left, Select My Account. 2、Tap Sign Out.
- Page 23 Tips 1、Confirm that Bluetooth is enabled on your phone. 2、Your authorized smart phone will need to have internet connection - either wireless or cellular data - to operate the lock. Create an account. Sign in. Set up a smart lock. Send an invite.
