Summary of Contents for MARINE DATA MD69BRX

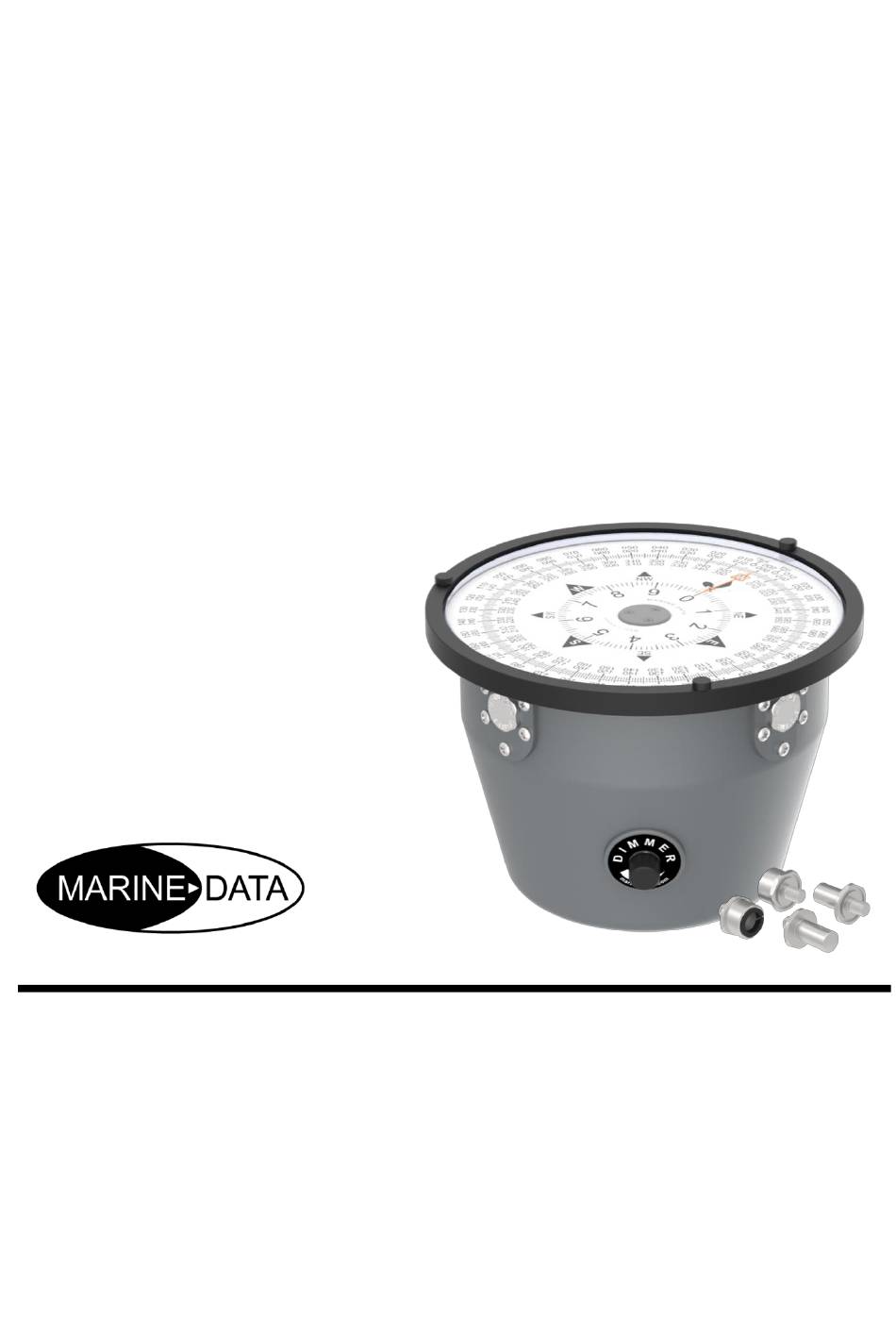

- Page 1 USER MANUAL MD69BRX F069036 – UNIVERSAL MOUNT COMPASS BEARING REPEATER FOR RETROFIT MD69BR-MA-v06r01 2019-11-19 ENGLISH...
-
Page 3: Table Of Contents
Data Sentences ..................... 10 SPECIAL FEATURES ..............10 MAJOR DIMENSIONS..............11 MD69BRX/B1 Retrofitting Kit Dimensions ............ 11 MD69BRX/P1 & P2 Retrofitting Kit Dimensions ........... 12 INSTALLATION ................13 Parts List ......................13 Fitting the Unit ....................13 Pin Connections (by function) ............... 14 Typical Connection Diagram ................. - Page 4 13.4 Environmental ....................23 13.5 Additional Information ..................23 14 SPARE PARTS & ACCESSORIES ........... 24 15 GROUNDING AND SHIELDING ............26 16 SAFETY AND SECURITY ..............26 17 GLOSSARY OF TERMS ..............27 18 ABOUT MARINE DATA ..............28...
-
Page 5: Md69Brx Bearing Compass Repeater

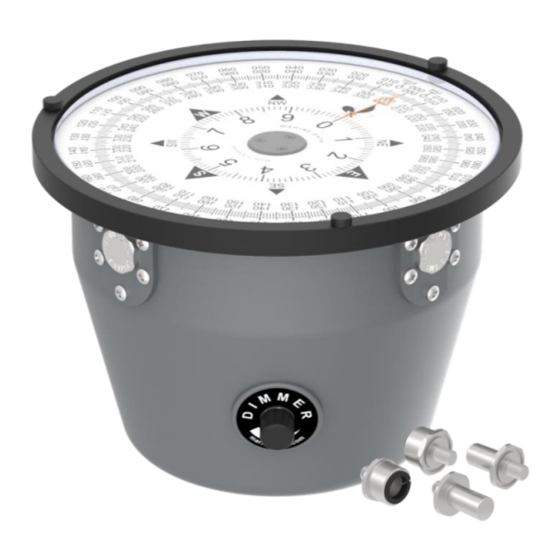

MD69BRX 1 MD69BRX BEARING COMPASS REPEATER MD69BRX Bowl: • Dual Scale concentric dials • Outer Verge Ring • Heading Type Indicators • Local Dimming Knob MD69BRX top view MD69BRX bottom view... -
Page 6: Document
2.1 About This Manual This Manual provides installation, operating Instructions and fault-finding procedures for the Marine Data MD69BRX Bearing Compass Repeater for retrofit. After installation, this manual should remain with the vessel to which it relates. This manual may also be made available in electronic Portable Document Format (PDF). In PDF format, the following categories are all enabled as active hyperlink references: (1) The titles of each section;... -
Page 7: Notice
MARINE DATA SYSTEMS LIMITED Vittlefields Technology Centre Forest Road NEWPORT Isle of Wight PO30 4LY UNITED KINGDOM tel: +44 (0)1983 822180 email: sales@marine-data.co.uk Marine Data Systems Limited reserves the right to make changes to its products and specifications without notice... -
Page 8: Description
Heading as part of a Gyro-Compass or Transmitting Magnetic Compass system. It receives data via a NMEA 0183 type digital transmission. The Primary function of the MD69BRX is to display Ship’s Heading from a Gyro Compass (or other source of Heading) and provide a facility for taking Celestial or Terrestrial Bearings from the ship. -
Page 9: Principle Of Operation
MD69BRX 5 PRINCIPLE OF OPERATION The Repeater accepts serial heading data from a Gyro-Compass or Transmitting Magnetic Compass in digital format using standard NMEA 0183 (IEC61162-1) True or Magnetic sentence. The input is processed by electronic circuitry contained within the Repeater enclosure. Powered from 18 V to 32 V dc derived from the ships supply, power consumption is low - typically less than 4 watts. -
Page 10: Application
MD69BRX 6 APPLICATION The MD69BRX displays True or Magnetic Heading Data transmitted from NMEA 0183 (IEC 61162-1) compatible marine equipment (Gyro-Compass, TMC, GPS Compass etc.) 6.1 Data Sentences The following NMEA 0183 sentences (in priority order) may be used to display Heading: •... -
Page 11: Major Dimensions
MD69BRX 8 MAJOR DIMENSIONS 8.1 MD69BRX/B1 Retrofitting Kit Dimensions... -
Page 12: Md69Brx/P1 & P2 Retrofitting Kit Dimensions
MD69BRX 8.2 MD69BRX/P1 & P2 Retrofitting Kit Dimensions... -
Page 13: Installation
Connect the MD69BRX in accordance with table 9.3 Pin Connections (by function). 5. The MD69BRX is designed to use 24 V dc and accept a digital RS422 data signal using the NMEA 0183 protocol. Ensure all incoming supply and signal cables are either: suitably insulated and/or connected, or bonded to the vessel’s earth where appropriate. -
Page 14: Pin Connections (By Function)
MD69BRX 9.3 Pin Connections (by function) Core Term: Type: Function: Description: colour Input Positive + dc Supply (12 / 24 V Nominal) Input Negative Supply Return Optional External Dimmer Input. 0 V = Minimum 0-24 V Illumination; 24 V = Maximum Illumination... -
Page 15: Typical Connection Diagram
MD69BRX 9.4 Typical Connection Diagram... -
Page 16: Commissioning The Product
Ensure that the background display lighting is set to a suitable level using the integral rotary dimmer control or a remote dimmer if connected. Be sure to fill out the product registration form and return it to Marine Data. This activates the warranty. -
Page 17: Operation
MD69BRX 11 OPERATION 11.1 Operator Controls and Indicators True Heading Type Indicator (Blue) Magnetic Heading Type Indicator (Yellow) Lubber Line 360° Outer Dial 10° Inner Dial (36:1 ratio) Verge Ring (fixed) Rotary Dimmer Control... -
Page 18: Normal Operation
11.6 Automatic Baud Rate Detection If valid data is not received, then the MD69BRX will scan all available Baud rates to look for valid data at an alternative rate. If valid data corresponding to the list of acceptable data sentences is found, then the Baud rate of that data will be stored and used for future data reception. -
Page 19: Azimuth Sight Operation (Optional Accessory)
MD69BRX 11.7 Azimuth Sight Operation (optional accessory) The MARINE DATA MD69AZI Azimuth Sight (Thomson Pattern) meets the International Standard ISO 25862:2009 for the testing and certification of Group II Azimuth reading devices. CAUTION: Always use Sun filters when taking azimuth bearings of the Sun; never attempt to take bearings of the Sun with unprotected eyes. -
Page 20: Maintenance & Fault Finding
The internal LED illumination devices may be damaged or there may be damage to the PCB or rotary dimmer switch. Return the unit to Marine Data for servicing. It should be noted that the display illumination may not be noticeable under bright ambient light conditions. Illumination is controlled independently by the integral rotary dimmer control and the Remote Dimmer input, if fitted, whichever input is adjusted will take precedence. -
Page 21: Technical Support
MD69BRX 12.3 Technical Support If further technical support is required then please contact your local Marine Data agent or Marine Data Technical Support: By email: support@marine-data.co.uk Through our website: www.marine-data.co.uk All technical support enquiries must include the following basic equipment information: About your Marine Data Equipment: Marine Data Equipment Model number (e.g. -
Page 22: Specifications
MD69BRX 13 SPECIFICATIONS 13.1 Physical Weight: 7.0 kg (Optimally balanced for Azimuth Sight) H 176 mm; W 254 mm; Body Ø 246 mm. Outer dial Ø 185 mm; Dimensions: Inner dial Ø 95 mm. Verge ring 20 mm (visible) Mounting: Third Party Gimbals &... -
Page 23: Environmental
IMO Res. MSC191(79) (IMO, 2004) Type Approval: RoHS: Compliant 13.5 Additional Information Remote dimming option available Illumination colour and relative brightness levels are factory adjustable (subject to MOQ) Marine Data reserves the right to makes changes to its products and specifications without notice. -
Page 24: Spare Parts & Accessories
MD69BRX 14 SPARE PARTS & ACCESSORIES Part No. Description Visual MD69BRX F069018 Bearing Compass Repeater Bowl Only MD69BRX/B1 Bearings Mounting Kit F069303 243mm Pitch MD69BRX/P1 Pins Mounting Kit F069301 254mm Pitch MD69BRX/P2 Pins Mounting Kit F069302 274mm Pitch... - Page 25 MD69BRX SS37120 Remote Dimmer Control MD69AZI F069013 Azimuth Sight (Thomson Pattern) MD60A2K F060001 Telescopic Alidade MD69BC F069052 Bearing Circle (Vane Type)
-
Page 26: Grounding And Shielding
MD69BRX MD69CB/W F069103 IP65 Terminal Box MD96JB8 F096020 IP54 Terminal Box 15 GROUNDING AND SHIELDING This equipment is designed to be grounded via the cable screen. The cable screen provides the electrical contact for protective earth bonding. 16 SAFETY AND SECURITY... -
Page 27: Glossary Of Terms
MD69BRX 17 GLOSSARY OF TERMS Term Description Electro-Magnetically Compatibility (Measuerd againt the relavant standard, e.g. IEC60945 or MIL-STD-461F) Electromagnetic Compass (electronic device measuring ships heading by sensing the earth’s magnetic field directly) Maritime navigation and radio communication equipment and systems. General EN60945 requirements. -
Page 28: About Marine Data
ISO 9001:2015 which ensures we meet our customers’ extremely high standards - every time. From ferries to fishing vessels and from tugs to tankers, Marine Data is there to show the way. We are continuously improving our products and updated manuals are available from our website: www.marine-data.co.uk and are free to download. - Page 29 MARINE DATA SYSTEMS LIMITED Vittlefields Technology Centre Forest Road NEWPORT Isle of Wight PO30 4LY UNITED KINGDOM tel: +44 (0)1983 822180 email: sales@marine-data.co.uk web: www.marine-data.co.uk...
