Air Bike XC28 User Manual

Fork

Download this manual

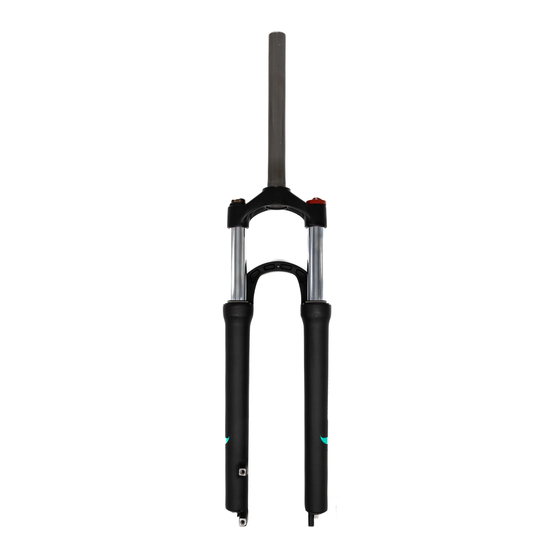

XC28 FORK

USER GUIDE

Need help?

Do you have a question about the XC28 and is the answer not in the manual?

Page 1 XC28 FORK USER GUIDE...
Page 2 AIR-BIKE XC28 FORK - USER GUIDE Congratulations you are now the proud owner of an Air-Bike Fork – THANK YOU! Please carefully read through your user guide and follow the instructions. If anything is unclear then please do not hesitate to contact Air-Bike and we will be happy to assist.
Page 3: Important Safety Information
It is important to know your limits when riding dependant on your skills and experience. Please be sensible, have fun but know your own limitations. AIR BIKE XC28 FORK USER GUIDE...
Page 4: Maintenance Plan
(this shouldn’t be any than 1 mm at the fork brace). AIR BIKE XC28 FORK USER GUIDE...
Page 5 PRELOAD & SAG Your Air Bike fork has been adjusted to provide the optimum preload for the spring and is NOT adjustable. LOCK-OUT The “lock-out” function closes the compression damping of the fork when riding standing up or riding uphill. The fork is not locked 100%. A couple of millimetres of the suspension travel remains moving, called “anti-blow-off system “.
Page 6 STKM straight wall steel, Satin Nickel finish 28mm dia Lower Aluminium Alloy Brake Postmount 160mm Steerer Tube 1.1/8", STKM 250mm Long Axle 9mm Dropout Weight 2505g for 26” & 2570g for 27.5” +/- 5% AIR BIKE XC28 FORK USER GUIDE...
Page 7 28.6mm 250mm 28mm 110mm 26” 485mm 27.5” 505mm 26” 350mm 27.5” 370mm 100mm AIR BIKE XC28 FORK USER GUIDE...
