Operating Instructions
Digital Automatic Coffee/Tea Brewer of AI Series
Model No.: AIG-3DAF and AIS-0DAF
Input Volt: 230~240V~, 60Hz
Wattage: 3600W ~ 3930W

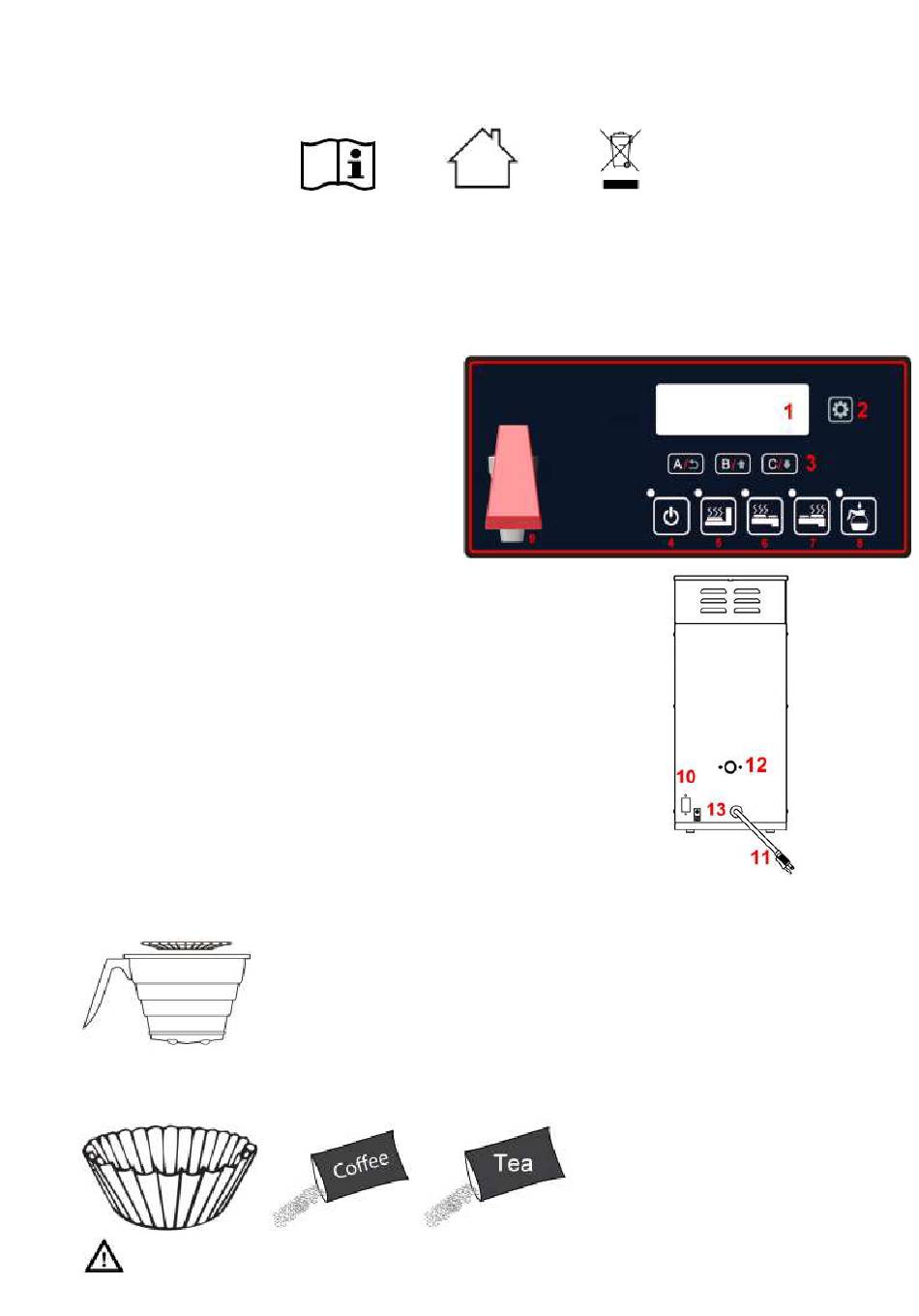

<Control Panel>
【1】Display screen
【2】Setting – service menu
【3】Recipe: A/B/C
(Grey color is for setting option)
【4】Enable brew on/off switch
【5】On/off switch for Lower warming plate
【6】On/off switch for front upper warming plate
【7】On/off switch for rear upper warming plate
【8】Brew switch (Pressing and releasing)
【9】Hot water faucet (Optional)
<Rear Cover>
【10】 Main Power Switch
【11】 Power cord
【12】 Solenoid/water inlet fitting
【13】 Ground connector terminal
< Accessories >
S/S filter pan/supporter of paper filter
<Consumables>
Filter paper/ Coffee powder/ tea powder
CAUTION: Read the instructions carefully before using the appliance.
Please read and
in door use only.
keep the instruction
Don't discard
Advertisement
Table of Contents
Summary of Contents for Caferina AI Series
- Page 1 Operating Instructions Don’t discard Please read and in door use only. keep the instruction Digital Automatic Coffee/Tea Brewer of AI Series Model No.: AIG-3DAF and AIS-0DAF Input Volt: 230~240V~, 60Hz Wattage: 3600W ~ 3930W <Control Panel> 【1】Display screen 【2】Setting – service menu 【3】Recipe: A/B/C...
- Page 2 ◆ Introduction: We are really pleased that you have chosen our high quality product of Digital Automatic Coffee / TEA BREWER, and we are very sure that you have made a correct decision. Before your use it, please read the following instructions carefully. ◆...
-
Page 3: Installation: (Initial Set-Up)
◆ Installation: (Initial Set-up) Please check the Brew Chamber is assembled correctly. The spring (Wire Rack) MUST wedge firmly at the bottom of the Filter Basket. Place the Machine on a dry, firm and horizontal surface with plenty of room above to allow easy and safe connect to the water source. - Page 4 Owing to different water pressure in different area, it is necessary to 【Calibrate water volume】before brewing coffee or tea. ◆ Optional Setting Introduction – Programming button Program A, B, C and hiding Recipe. A This is used to select options that appear on the display during programming (Back) B ...
- Page 5 ◆ Programming Function – Flow Chart Model# AIS0DA Brew Volume： 0.00 oz Water Process Loss Full Capacity： Setting (service menu) Back (＋) (－) Back (Y) (N) Back (+) (-) Y Program A, B, C and Hiding Recipe Press and Hold on 3 seconds to access menu Press and Hold 3 seconds to access Program = "Back"...
- Page 6 Model#AIG-3DA □ A/ B / C Brew volume： 0.00 oz Water Process Loss Set temp.： 88℃ 92 / 95 Setting (service menu) Back (＋) (－) Back (Y) (N) Back (＋) (－) Press and Hold on 3 seconds 0.00oz～0.00oz 50°～98° Y to access program □ A/ B / C Press and Hold on 3 seconds to Make up vol.: 0.00 oz Set Ready：...
-
Page 7: Quick Menu
Quick menu Three quick menus setting【A】 【B】 【C】, which build-in the factory default setting of temperature and water out mode. In addition to the built-in three quick menus, there is a hiding recipe in the setting button which can be regarded as 【D】. The user can free setting: water out temperature, water volume, Pulse Brew volume, Pulse Brew time and etc. -
Page 8: Factory Default
Factory Default When the machine setting occurs the confusion or has new recipe or resets the machine to upgrade the program, please restore to the factory default first. Option: Hot Water Faucet The machine that equips with hot water faucet, the user can open the faucet handle to get hot water. - Page 9 Cleaning It is important that the Machine and its accessories are kept clean after using. For dirt or smudges on the Machine, it is better to clean them with a soft damp cloth, and if necessary, with a non-corrosive and/or non-abrasive detergent or cleaner. The filter pan and container pot might have some coffee or tea spots on them;...
-
Page 10: Product Size
Secret Recipe – Coffee & TEA Fresh, good-tasting water is essential since it makes up more than 98 percent of a cup of coffee. The brewing, pulse, extraction or pouring water time is primarily determined by the grind size. A longer brewing time is required for the water to penetrate the larger grind particles.
