Summary of Contents for AL Guardian G9 RX
- Page 1 USER GUIDE AL G9...

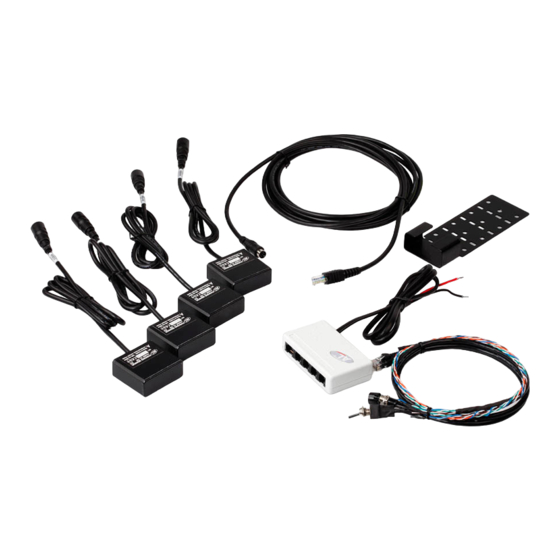

- Page 2 A2 Bracket A3 Screws A4 Cable ties A5 Shrinking tube A6 Adhesive tape B1 Control Box B2 Control Set B3 Level B4 Wire taps B5 LED holder B6 User Guide AL G9 User Guide, ed. 2009-09-28 COPYRIGHT © 2009 A-ELEKTRONIK...
- Page 3 Do not plug more than four outer sensors into the control box. Do not plug any third party equipment into any of the sockets in the control box. Do not plug any part of the AL G9 into third party equipment.
- Page 4 Emissions: EN 61000-6-3 (IEC 61000-6-3) Immunity: EN 61000-6-1 (IEC 61000-6-1) The labelling of the AL G9 which is affixed on the top of the Outer Sensor and the Control Box housing meets the requirements of the guideline 2004/108/EC: The AL G9 Guardian is fully in conformity with the requirements of Automotive EMC Directive 2004/104/EC amended by directives 2005/49/EC, 2005/83/EC, 2006/28/EC and approved by State Office for Metrology of Republic of Croatia with approval number 10R-02 0004.
-
Page 5: Table Of Contents
Table of Contents 1. Introduction Revision X Improvements 2. Main Parts of the Product 3. Installation Installation diagram 4. Usage 4.1 Operating modes 4.1.1 Detection range adjustment 4.1.2 Silent power-up 4.1.3 Laser interference defense (LID) adjustment 4.1.4 LED Dark mode 4.1.5 Laser Power Output 4.1.6 Parking sensor mute 4.2 Additional features... -
Page 6: Introduction
G9 will differentiate the laser signals coming from other laser sources. If an AL Driveway Unit (an option) is installed in your driveway or garage the G9 becomes a driveway light activator and/or a garage door opener. -
Page 7: Revision X Improvements
Revision X Improvements AL G9 superior laser detection is achieved by completely new electronic and computing design of the reception system. The unit's memory has been doubled enabling new program features to be added. The latest hardware revision brings more advancements:... -
Page 8: Main Parts Of The Product
2. Main parts of the Product Control Box The central part and the brain unit of the AL G9. It includes a processor, a removable Memocard with upgradeable flash memory , a complex power supply unit and the following sockets:... -
Page 9: Installation
3. Installation To obtain the best performance of your AL G9 and insure long service life, seek a professional installer to mount the product. To begin installation follow these steps and refer to the Installation diagram. OUTER SENSOR Can be mounted between the front grill partitions or above the rear bumper. Take care not to damage the cable or the factory installed connector on the cable during installation (cutting the cable or removing the factory installed connector voids warranty and may cause malfunction). - Page 10 Obstructing surface should not be more than 1 cm away from the sensor lens, or larger holes should be drilled to maintain angle protection. Make sure the sensor is levelled (use a level to check). 5 AL G9 User Guide...
- Page 11 To avoid the possibility of draining your car battery by accidentally leaving your AL G9 system on for prolonged time, use the following connection method instead of the one...
-
Page 12: Installation Diagram
Installation diagram on & off switch programming key button black speaker two color LED a battery mute wire... -
Page 13: Usage
When an obstacle is detected your AL G9 will warn you with red diode flashes and audible signals that will become faster as the obstacle gets closer to the outer sensor. You will also be warned with fast red flashes and speaker tones in case of laser interference detection. -
Page 14: Silent Power-Up
Press and hold the key button while counting the flashing green light. Release the key button after the fifth (5) flash. AL G9 will reprogram and this will be signalled by red and green flashing lights and speaker tones. 4.1.3 Laser interference defense (LID) adjustment (DEFAULT: 4 SEC) AL G9 possesses an advanced program code for detecting and deflecting possible interference signals from other sources of laser emissions on the 905 nm frequency. -
Page 15: Laser Power Output
Press and hold the key button while counting the flashing green light. Release the key button after the tenth (10) flash. AL G9 will reprogram and this will be signaled by red and green flashing lights and speaker tones. 4.1.5 Laser Power Output (DEFAULT: OPTIMAL) Choose between the optimal and maximum laser power output modes. -
Page 16: Additional Features
Press and hold the key button while counting the flashing green light. Release the key button after the fifteenth (15) flash. AL G9 will reprogram accompanied by constant green light and longer speaker tone. Automatic sensors check While restoring factory default settings the unit will count and memorize the number of sensors connected to the system. -
Page 17: Specifications
1,5 m (4.9 ft) 90 dB Weight: Laser class: Outer Sensor 105 g + 160 g (0.26 lb + 0.4 lb) Laser wavelength: 905 nm Control Box 110 g (0.27 lb) Specifications are subject to change without notice. 13 AL G9 User Guide... -
Page 18: Operation Description
1 second following power-up; self-test Warm-up mode 60 seconds following the Activation mode; during warm-up mode AL G9 functions are limited. The end of a warm-up mode is signaled with a green LED flash and a tone from the speaker. -
Page 19: Registration, Warranty And Service
Servicing and Support If uncertain whether your AL G9 is working correctly please check Operation description, page 14 of this manual. If it does not give you a solution to your problem contact your local dealer or our Service and Support center at support@ALG9.com... - Page 20 Upgrade by exchanging the Memocard RX Control Box with plug in Memocard Remove Control Box protective label but do not remove small serial number label SN: XXXXX Unscrew 5 screws and open the box Unplug the old Memocard and plug in the new one Memocard plug in spot...
