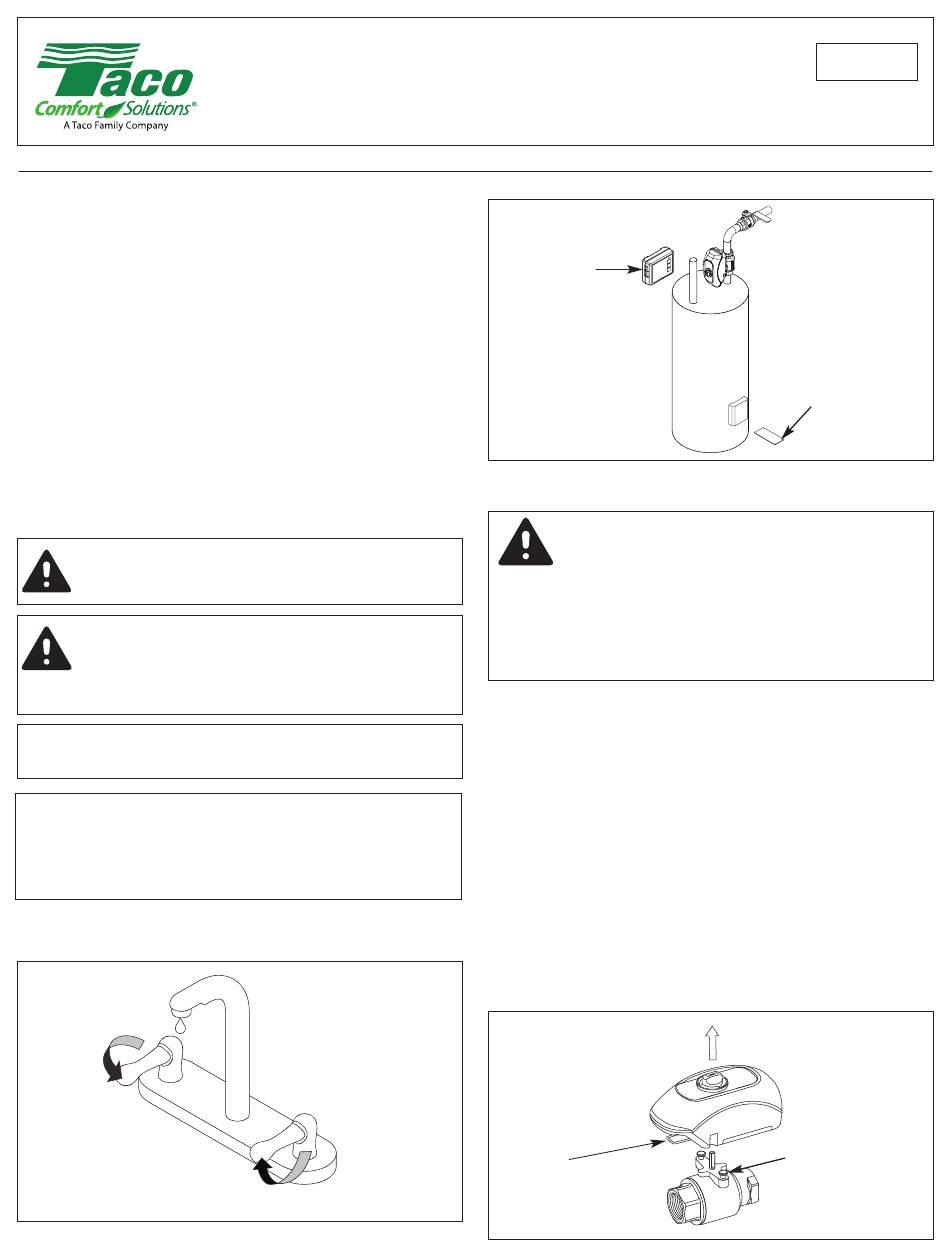

Taco LeakBreaker LBW Series Instruction Sheet

SUPERSEDES: July 27, 2017
Plant ID No. 001-4237

Application

The Taco LeakBreaker is a leak detection and water shutoff
®
device. It is designed to detect a water leak and shutoff the incom-
ing water supply to a water heater. It is suitable for use with many
other water appliances that have a 3/4" (or smaller) connection
requiring leak protection.

Ease of Installation / Operation

The valve can be installed in either vertical or horizontal piping and

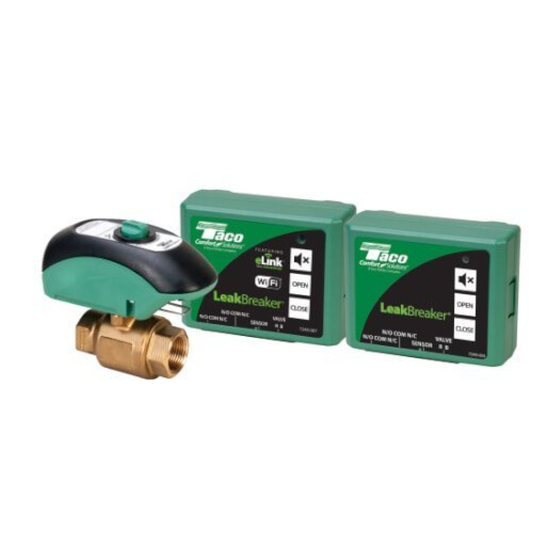

in any direction or orientation. LeakBreaker consists of a control
panel, full port electrically actuated ball valve, floor sensor and
is powered by batteries, AC adaptor or both. The components
are connected with easy to use plug in quick connects. A multi-
function LED on the control module identifies the current state of
the LeakBreaker and aides with troubleshooting.

Valve Installation

Warning: Never place any body parts or objects
into the valve opening, doing so may result in severe
injury!
Caution: Installation should only be performed by qual-
ified persons familiar with normal plumbing practices.
These instructions should be considered in addition to
local codes. Consult your local authority regarding any instruc-
tions contradictory to code requirements.
Note: Depending on your piping system, additional fittings not
supplied with this product may be required.
Note: A vacuum breaker and/or expansion tank should be
installed in the cold water line. Check local plumbing codes for
appropriate placement of vacuum breaker and expansion tanks.
Under certain conditions water may continue to leak from the
tank, however, no additional water will be added.
1. Shut off the main water supply.
2. Open a fixture nearest the water heater to relieve water pressure.
LeakBreaker is a registered trademark of Taco Comfort Solutions
®
Instruction Sheet
LeakBreaker
®.
®
Wall mounted
control
3. Install the LeakBreaker valve into the cold water supply to the
water heater.
CAUTION: If using a threaded to sweat adaptor on
the valve installation, the actuator must be removed
from the valve body before soldering (see instructions
for removing actuator). The ball valve must be in the full open
position before soldering. The valve is shipped in the closed
position. Use of a solder with a melting point below 600°F is
recommended. Do not overheat! Make sure the ball valve is in
the FULL OPEN position during soldering. Direct flame tip away
from the center of the valve. Cool valve quickly with a wet cloth.

Actuator Removal and Installation

1. Actuator Removal: Remove the valve actuator prior to solder-
ing by pushing in and holding the release clip at the front of the
actuator and lifting upward approximately 3 ⁄4" (see Figure A).
2.
To re-assemble the actuator to the valve body: Position actu-
ator such that the "D" shaped valve stem aligns properly with
the "D" shaped actuator drive cavity. (Note: The "D" shaped
stem design allows for correct insertion every time.) Next, slide
the valve stem into the actuator cavity, push in and hold the
release clip until the actuator slips over the valve locking posts
(see Figure A). Once the actuator is flush to the valve body, let
go of the release clip. Using very little force, try to take the
actuator off of the valve body without using the release clip.
Both locking posts should be firmly attached to the actuator. If
the actuator slides up the stem, repeat the assembly process.
Fig. A
Actuator Removal
Step 1:
Push in and hold release clip
at the front of the actuator
1
102-506
EFFECTIVE: January 31, 2018
Floor sensor
Step 2:
Move actuator upward
approximately 3/4"
Locking Post
