Tecmen Freflow V1 Owner's Manual

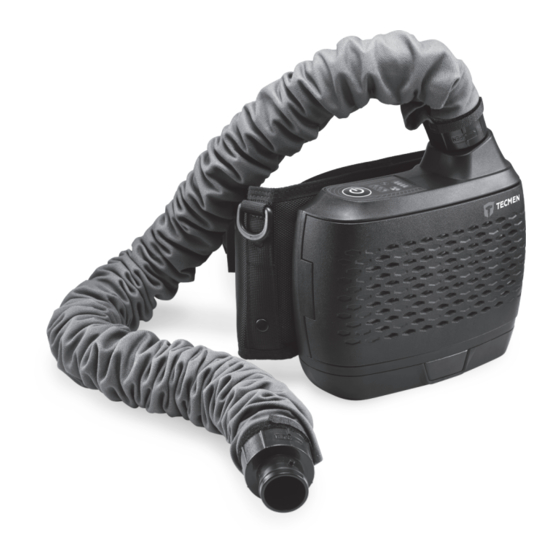

Powered air purifying respirator
Hide thumbs

Advertisement

Table of Contents

Freflow V1
Powered Air Purifying Respirator
Owner's Manual
Read all instructions and warnings before use. Users must understand this booklet prior
to use. Keep these User Instructions for future reference. If you have questions regarding
these products, just feel free to let Tecmen know.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Freflow V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tecmen Freflow V1

  • Page 1 Powered Air Purifying Respirator Owner’s Manual Read all instructions and warnings before use. Users must understand this booklet prior to use. Keep these User Instructions for future reference. If you have questions regarding these products, just feel free to let Tecmen know.
  • Page 2 • Operating temperature range between -20°C and +60°C. • The TECMEN PAPR system is not intrinsically safe. Keep away from flammable, or explosive atmosphere. • At very high work rates the pressure in the device may become negative at peak inhalation flow.
  • Page 3 DESCRIPTION & SPECIFICATION A complete Tecmen PAPR includes a blower, filtration unit, breathing tube assembly, battery, shoulder strap and belt. The blower assembly draws surrounding air through its filter and supplies purified air to the facial via a breathing tube. There are two levels airflow rate choice: Low speed—170+lpm;...
  • Page 4 Respirator Approval EN12941 (Classifications please refer to the label on headtop) AS/NZS1716: 2012 - Freflow V1, Particle filter with class P3 inside ASSEMBLING & SPARE PARTS The power must be turned off when replacing the filters. Install the spark screen, pre-filter, and particulate filter (gas filter if any) in filter cover.

  • Page 5: Particulate Filter

    PARTICULATE FILTER WARNING • Never use the respirator without the spark screen, pre-filter, and the HE particulate filter (HEPA) installed. • Always replace filter when damaged or blocked. Do not try to wash, clean or reuse dirty ones. • Stored at a temperature between -4°F to 131°F (-20°C to 55°C), in a clean environment without direct light. •...
  • Page 6 BATTERY WARNING • The battery should be charged in a place that is electrically safe. • The charging time of different types of battery is different. Actual charging time depends on the remaining battery capacity. • Please check out the voltage of the charger (AC 110V~220V). •...
  • Page 7 Disassembling the battery Push the button, take the battery out as fig.3a / 3b / 3c shown direction. Separate it from the body. Push Pull fig.3a fig.3b fig.3c Assembling the battery Fitting the battery to the blower body, push until hearing ‘Click’ sound (See fig.4a / 4b). Push Push fig.4a...

  • Page 8: Breathing Tube

    Notice of battery use • Do not put PAPR unit with power-on in the package. It’s better to remove the battery from the body when put in the package. • Do not keep PAPR unit inside the car in hot summer season. •...

  • Page 9: Air Flow Control

    SHOULDER STRAP & BELT CUSHION Connect hooks to belt (See fig.8a). Connect with the blower by screw locking (See fig.8b). Hook fig.8a fig.8b AIR FLOW CONTROL Two indicator lights on display (See fig.9a). Low Speed-170+lpm; High Speed-210+lpm. When turn on the PAPR, default setting is low speed airflow; Switch the airflow by short press the button (See fig.9b).
  • Page 10 Always exit the contaminated area immediately if any of the following conditions occur: • IF some problem is shown in any part of the product, for example, the air supply is stopped or its amount is decreased; • IF it gets hard to breathe, feeling dizzy or headache, feeling the smell or taste of the contaminants and its stimulus occurred;...

  • Page 11: Maintenance

    Airflow rate test Take airflow test always before using this product. Make sure all the components are fully assembled before testing. Connect the end of hose to the bottom of airflow indicator and then start the Button. Keep the Flow Indicator vertical (See fig.11). If the ball inside the pipe floating above the limited line in low speed mode, it proves normal function.

  • Page 12: Troubleshooting Guide

    STORAGE The TECMEN PAPR system is not intrinsically safe. Keep away from flammable, or explosive atmosphere. Storage should be in a clean, dry, cool place with filter. Blower storage Stored at a temperature between -4°F to 113°F (-20°C to 45°C), in a clean environment without direct light.

  • Page 13: Part List

    PART LIST The part with * means it is not included in the product, which need to be purchased seperately.
  • Page 14 PART LIST ITEM PART NO. DESCRIPTION B. Blower Unit V1BM TM3 00 Body V1FBA TM3 00 Fast-charging standard battery V1P3 TM3 00 Particle filter (P3 filter) V1PF TM3 00 Pre-filter V1SS TM3 00 Spark screen V1FC TM3 03 Filter cover B-7* V1GF TM3 00 Gas filter...

  • Page 15: Warranty

    WARRANTY Tecmen’s only obligation shall be repair, replace or refund the purchase price of such parts or products material and fabrication defects free of charge within the warranty period. This warranty does not cover to cause by improper handling abuse or application other than recommended in the user instruction.
