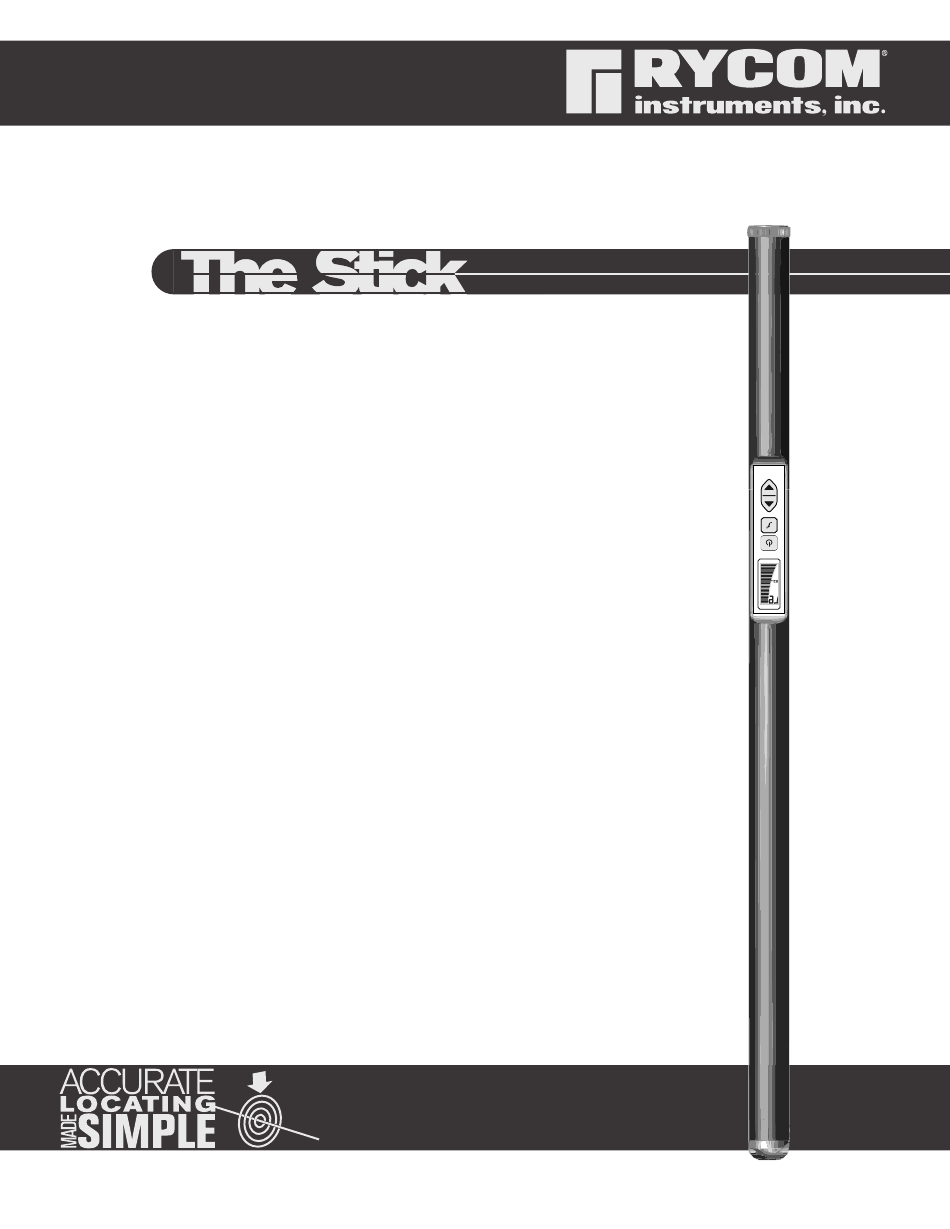

- Page 1 User Manual STICK Locating Series Cable & Pipe Locator Powered By RYCOM Instruments' Pathfinder Locator Technology Manual Part # 030-00086-10 800.851.7347 www.rycominstruments.com...
- Page 2 No part of this manual may be reproduced, copied, modified or adapted, without the prior written consent of the RYCOM Instruments, Inc. Please feel free to contact RYCOM Instruments, Inc. to request permission for reproduction and use of this manual for training purposes.
-
Page 3: Table Of Contents
Table of Contents eneral nformatIon Warranty ..........2 Introduction . -
Page 4: Introduction
Failure to observe these warnings could result in severe injury or death. DISCLAIMER OF LIABILITY RYCOM INSTRUMENTS, INC SHALL NOT BE LIABLE TO DISTRIBUTOR, RESELLER, OR ANY OTHER PERSON FOR ANY INCIDENTAL, INDIRECT, SPECIAL, EXEMPLARY OR CONSE- QUENTIAL DAMAGES, OR INJURY OF ANY TYPE WHATSOEVER, AND CAUSED DIRECT- LY OR INDIRECTLY BY PRODUCTS SOLD OR SUPPLIED BY RYCOM INSTRUMENTS, INC. - Page 5 Changing Operating Modes & Frequency Sets hIs setup procedure Is not requIred unless the user desIres to chanGe factory settInGs The STICK operating programs and frequency sets are user programmable and can be changed at anytime through a quick selection process. To select the desired frequency set on the RECEIVER: •...
-
Page 6: Transmitter Controls And Indicators
The Stick Locator Series Transmitter Controls and Indicators Load Rate Indicators 8869 Battery Condition Tx Output Indicator Jack Frequency Selector Power On & Off Relative Resistance, Output Signal Voltage, Current Level Control TX OUTPUT JACK The r , Coupler and F connects here to create a circuit on the lack lexicouPler... -
Page 7: Direct Connect
Direct Connection CAUTION DO NOT CONNECT TO LIVE POWER OR ENERGIZED POWER CABLES Direct Connection is the most reliable method of signal application. This method is relatively free of interference. The greatest amount of signal strength can be achieved by this method. All frequencies may be used. The far end of the utility must be grounded. -
Page 8: Inductive Connection
Inductive Connection This method is convenient to use, and services are not interrupted. No test cords or connections are needed. The cable or pipe must have good insulation or non- conductive coating, or the operating range will be short. Turn the T ON. -
Page 9: Receiver Controls And Indicators
The Stick Receiver Controls and Indicators DISPLAYS ABSOLUTE RELATIVE SIGNAL SIGNAL STRENGTH STRENGTH BARGRAPH single bar shows gain setting) FREQUENCY LOW BATTERY ICON ON / OFF OPERATION MODE Displays selected operation and or MODE selected frequency avaiable to model FREQUENCY ADJUSTS GAIN UP OR DOWN ON/OFF... -
Page 10: Locating The Cable Or Pipe
Locating the Cable or Pipe Make sure the T is connected and in the ON position. Then move approxi- ransmiTTer mately 15 feet (4.5 meters) away from the T along the path. (Move about ransmiTTer 25 feet (7.5 meters) for the Inductive search mode.) Hold the r so that you can see the LCD bargraph and controls easily. -
Page 11: Depth Measurement 45 Degree Angle Method
Depth Measurement 45º Angle Method Move to the location you want to measure depth. Stay at least 15 feet away from the T . Move the r left to right across the path until the cable is ransmiTTer eceiver located. Mark the path on the ground as precisely as possible. Position the unit so that the sight lines on the lower tube are straight up and down thus orinting the unit at a 45º... - Page 12 Locating a Sonde or Camera Head Using the Stick Before you begin, you must choose a s that will match the onde or amera same frequency as the r . You will need a s with a frequency of 512kHz eceiver onde Stick...
- Page 13 Locating a Sonde Hold the r antenna directly above and in line with the s , as shown eceiver onde below with the r sensitivity adjusted for a meter reading within scale. eceiver The radiation pattern of the s is shown below. The PEAK signal is when the onde is held directly over the s with the antenna in line with the s...
-
Page 14: Ferrous Metal Detection
Ferrous Metal Detection The STICK offers a ferrous metal detection capability. To select this mode press the Mode key until the Fe is shown on the LCD. The gain controls will adjust the sensitivity. This mode will only detect ferrous metals; metals containing iron. This mode may need to be calibrated after shipment from the factory due to the change in the earth's magnetic field. - Page 15 Stickv3 Specifications Receiver 476kHz • 200kHz • 82kHz • 65kHz • 33kHz • 8kHz • Operating Frequency Antenna Mode Peak (horizontal coil) Null (Left/Right) Audio Indication Variable pitch audio Operating Temperature -4°F to 133º (-20ºC to +55ºC) Battery Type 6 - “AA” Duracell alkaline batteries Battery Life Continuous 40 hours...
- Page 16 STICKv3 Pathfinder Specifications Transmitter Operating Frequency 476kHz • 200kHz • 82kHz • 65kHz • 33kHz • 8kHz -4°F to 133º (-20ºC to +55ºC) Operating Temperature Direct Connection Hook-up Method Inductive Coupling (with optional coupler) Transmitter Induction Load Matching automatic from 5 to 20,000 Ω...
-
Page 17: Stick Receiver Specifications
If your Locator is not working properly, first call RYCOM Instruments, Inc. Support at 800-851-7347 for assistance. If the locator is in need of repair, RYCOM will provide instructions and a Return Material Authorization (RMA) for returning your locator to the service center. The instrument will be repaired and shipped back with an invoice or you will be advise if the instrument is unrepairable.
